Product Specifications
| Manufacturer Part Number | 02865893 |

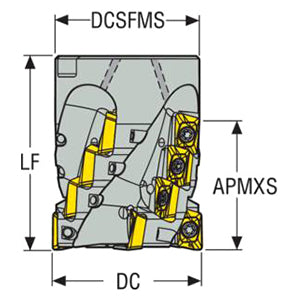

| Cutting Diameter (mm) | 40.00mm |
| Connection Bore Diameter (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 78.50mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 68.96mm |
| Functional Length (mm) | 55.00mm |
| Maximum Depth of Cut (mm) | 34.00mm |
| Depth of Key Way (mm) | 5.60mm |
| Keyway Width (mm) | 8.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Rake Orthogonal Angle (Degree) | -7.5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Maximum Rotational Speed (rpm) | 18600 rpm |
| Insert Shape Code | X |
| Shank Type | Arbor |

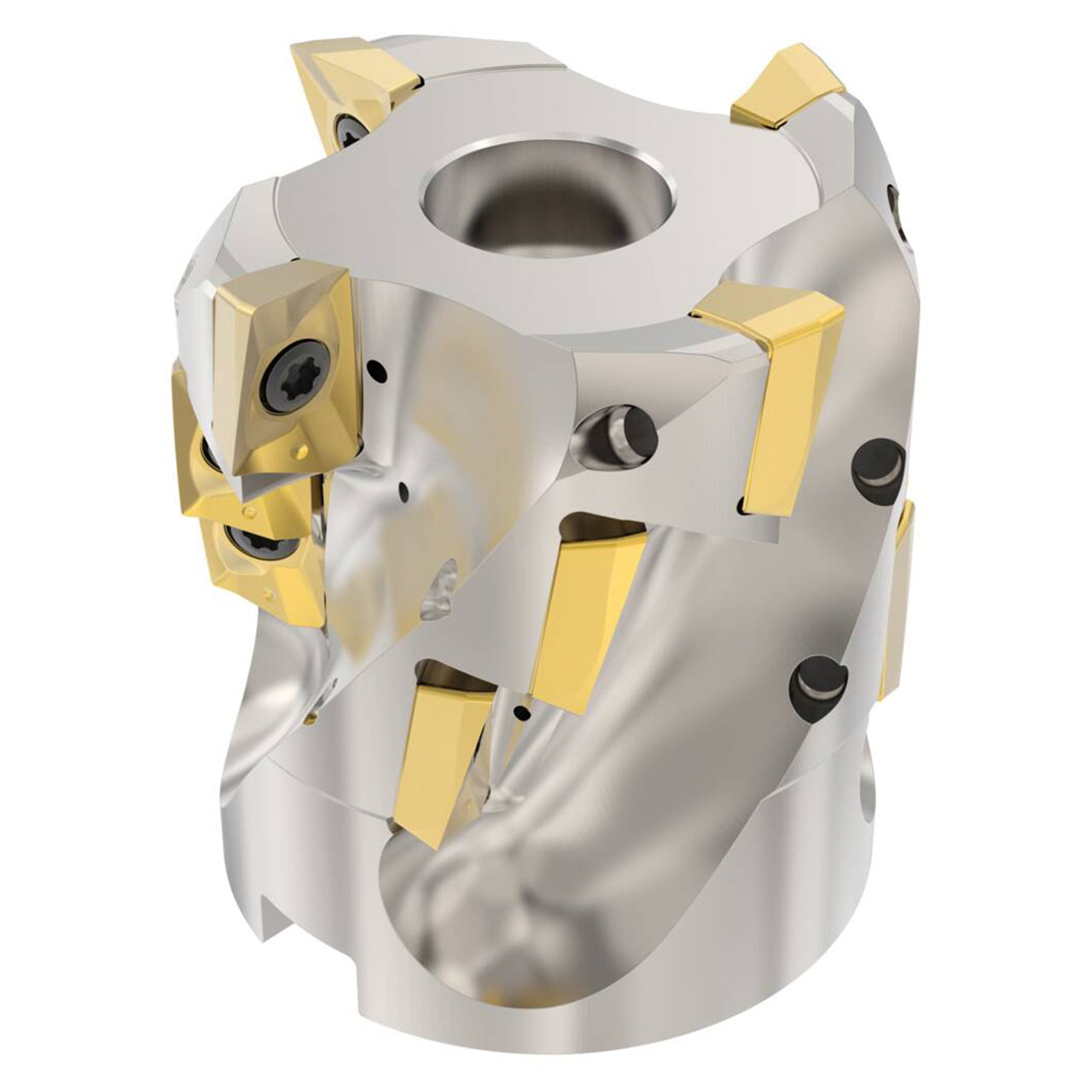

| Product Type | Indexable Square-Shoulder Face Mill |
