Product Specifications
| Manufacturer Part Number | 02848788 |
| Cutting Diameter (Decimal Inch) | 5.423" |
| Cutting Diameter (mm) | 137.75mm |
| Cutting Diameter 1 (Decimal Inch) | 6.000" |
| Cutting Diameter 1 (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 4.331" |
| Contact Surface Diameter Machine Side (mm) | 110.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 6.389" |
| Maximum Cutting Diameter (mm) | 162.27mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 2.40mm |
| Maximum Depth of Cut (Decimal Inch) | 0.095" |
| Depth of Key Way (Decimal Inch) | 0.445" |
| Depth of Key Way (mm) | 11.30mm |
| Keyway Width (Decimal Inch) | 0.756" |
| Keyway Width (mm) | 19.20mm |
| Programming Radius (Decimal Inch) | 0.405" |
| Programming Radius (mm) | 10.28mm |
| Uncut Thickness (Decimal Inch) | 0.0335 |
| Uncut Thickness (mm) | 0.85 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Tool Cutting Edge Angle (Degree) | 16 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 16 Degree |
| Maximum Rotational Speed (rpm) | 3200 rpm |
| Shank Type | Arbor |

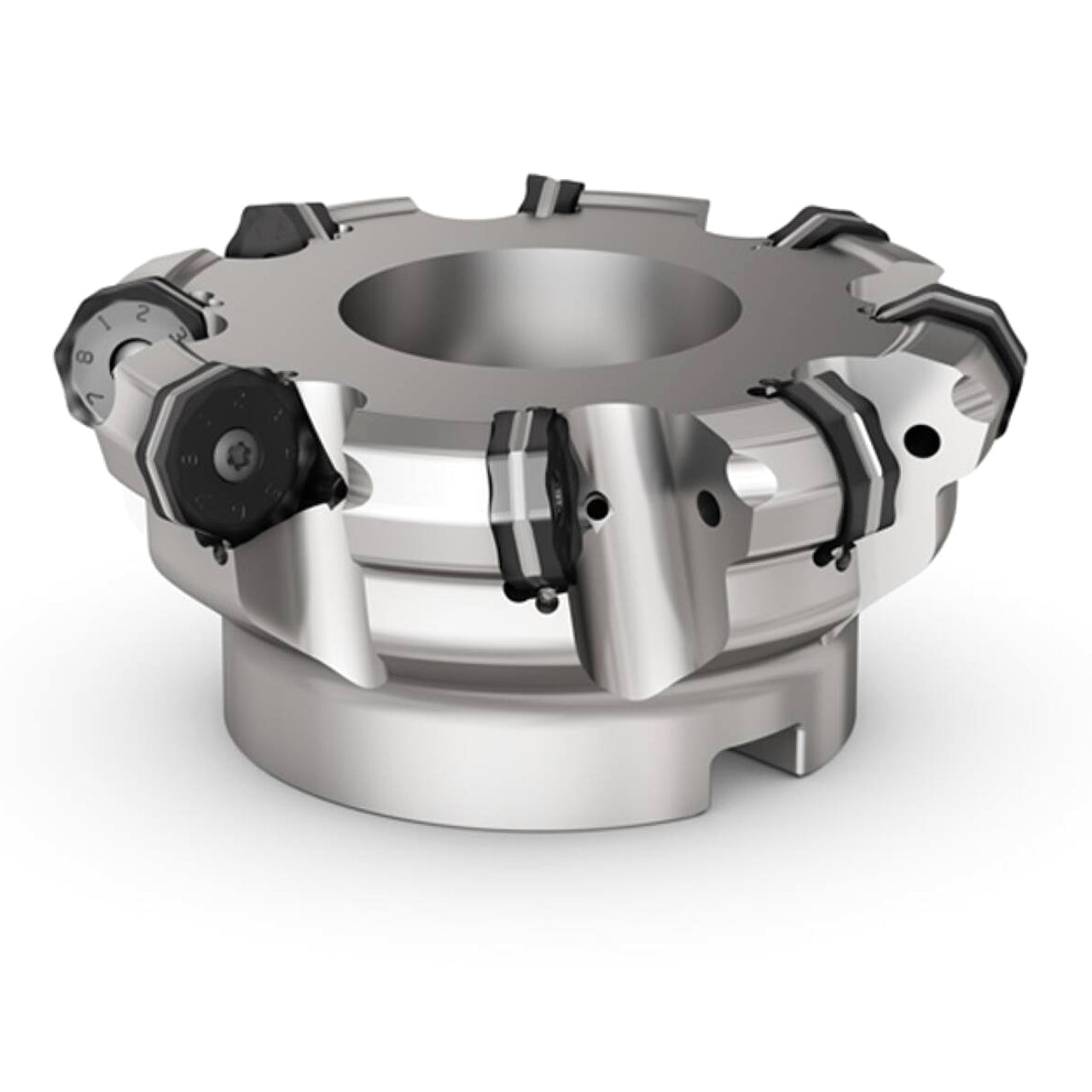

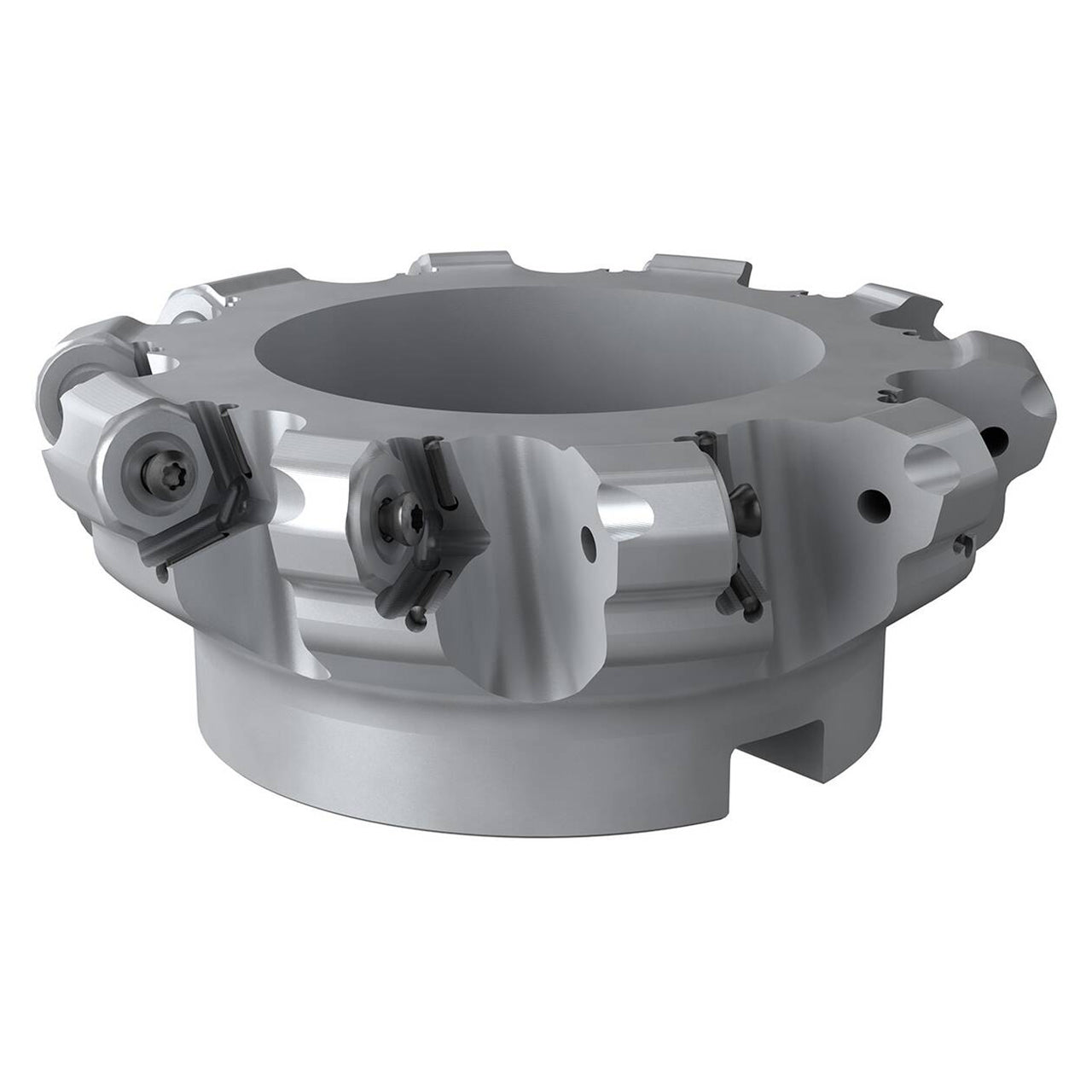

| Product Type | Indexable Face Mill Cutter |
