Product Specifications
| Manufacturer Part Number | 02845590 |
| Body Diameter 1 (Decimal Inch) | 1.063" |
| Body Diameter 1 (mm) | 27.00mm |
| Body Diameter 2 (Decimal Inch) | 1.385" |
| Body Diameter 2 (mm) | 35.18mm |
| Body Diameter 3 (Decimal Inch) | 3.839" |
| Body Diameter 3 (mm) | 97.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.394" |
| Connection Bore Diameter (mm) | 10.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Thread Diameter Size | M8x1 |
| Body Length (Decimal Inch) | 4.803" |
| Body Length (mm) | 122.00mm |
| Body Length 1 (Decimal Inch) | 2.047" |
| Body Length 1 (mm) | 52.00mm |
| Functional Length (Decimal Inch) | 5.079" |
| Functional Length (mm) | 129.00mm |
| Minimum Functional Length (Decimal Inch) | 4.685" |
| Protruding Length (Decimal Inch) | 6.299" |
| Protruding Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 1.221" |
| Clamping Length (mm) | 31.00mm |
| Overall Length (Decimal Inch) | 10.307" |
| Overall Length (mm) | 261.80mm |
| Connection Bore Depth (mm) | 42.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.532" |
| Radial Location (mm) | 13.50mm |

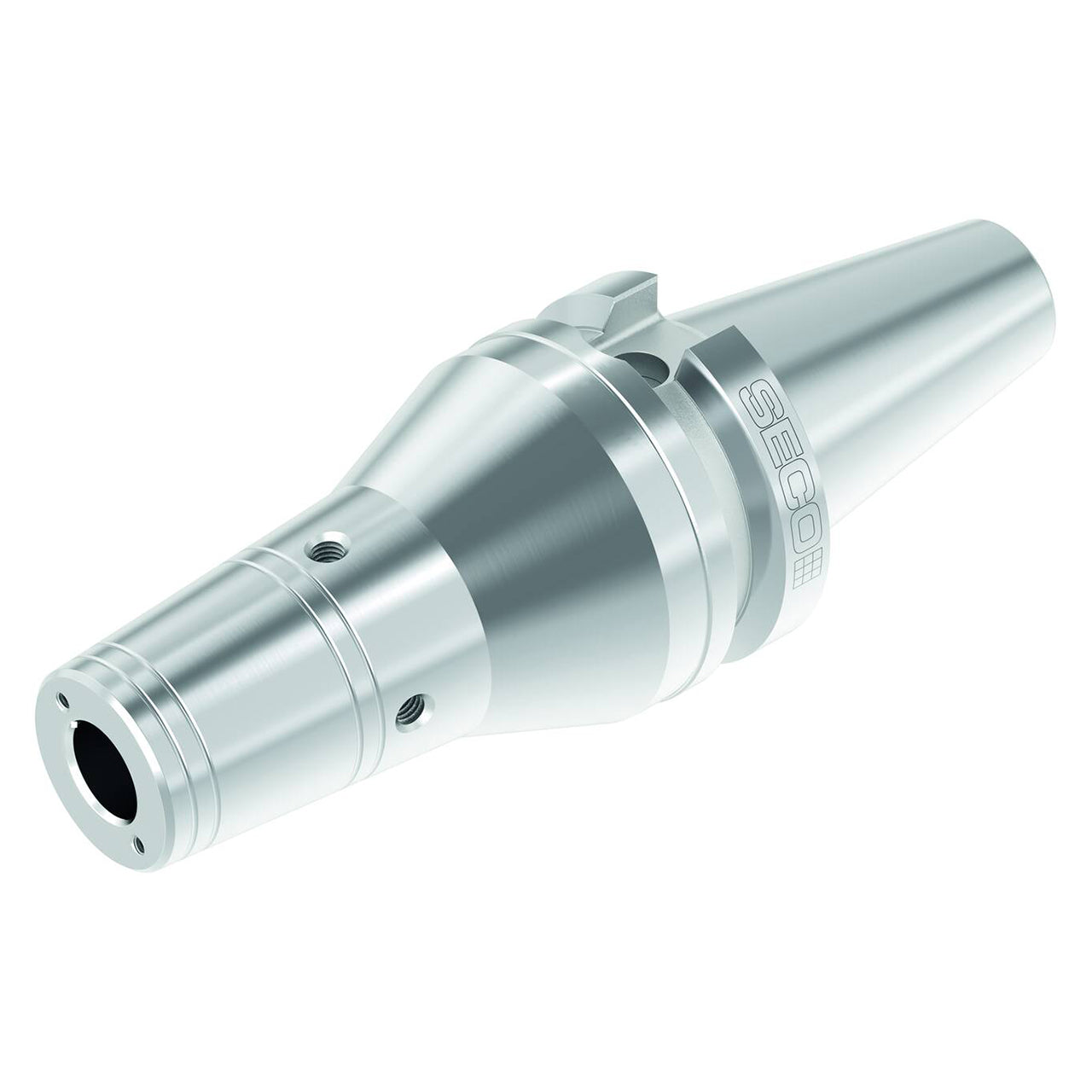

| Product Type | Shrink-Fit Tool Holder |
