Product Specifications
| Manufacturer Part Number | 02845509 |
| Body Diameter 1 (Decimal Inch) | 1.890" |
| Body Diameter 1 (mm) | 48.00mm |
| Body Diameter 2 (Decimal Inch) | 2.249" |
| Body Diameter 2 (mm) | 57.13mm |
| Body Diameter 3 (Decimal Inch) | 3.445" |
| Body Diameter 3 (mm) | 87.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.984" |
| Connection Bore Diameter (mm) | 25.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Thread Diameter Size | M16x1 |
| Body Length (Decimal Inch) | 6.732" |
| Body Length (mm) | 171.00mm |
| Body Length 1 (Decimal Inch) | 2.284" |
| Body Length 1 (mm) | 58.00mm |
| Functional Length (Decimal Inch) | 6.024" |
| Functional Length (mm) | 153.00mm |
| Minimum Functional Length (Decimal Inch) | 5.630" |
| Protruding Length (Decimal Inch) | 7.874" |
| Protruding Length (mm) | 200.00mm |
| Clamping Length (Decimal Inch) | 1.850" |
| Clamping Length (mm) | 47.00mm |
| Overall Length (Decimal Inch) | 9.843" |
| Overall Length (mm) | 250.00mm |
| Connection Bore Depth (mm) | 58.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.984" |
| Radial Location (mm) | 25.00mm |

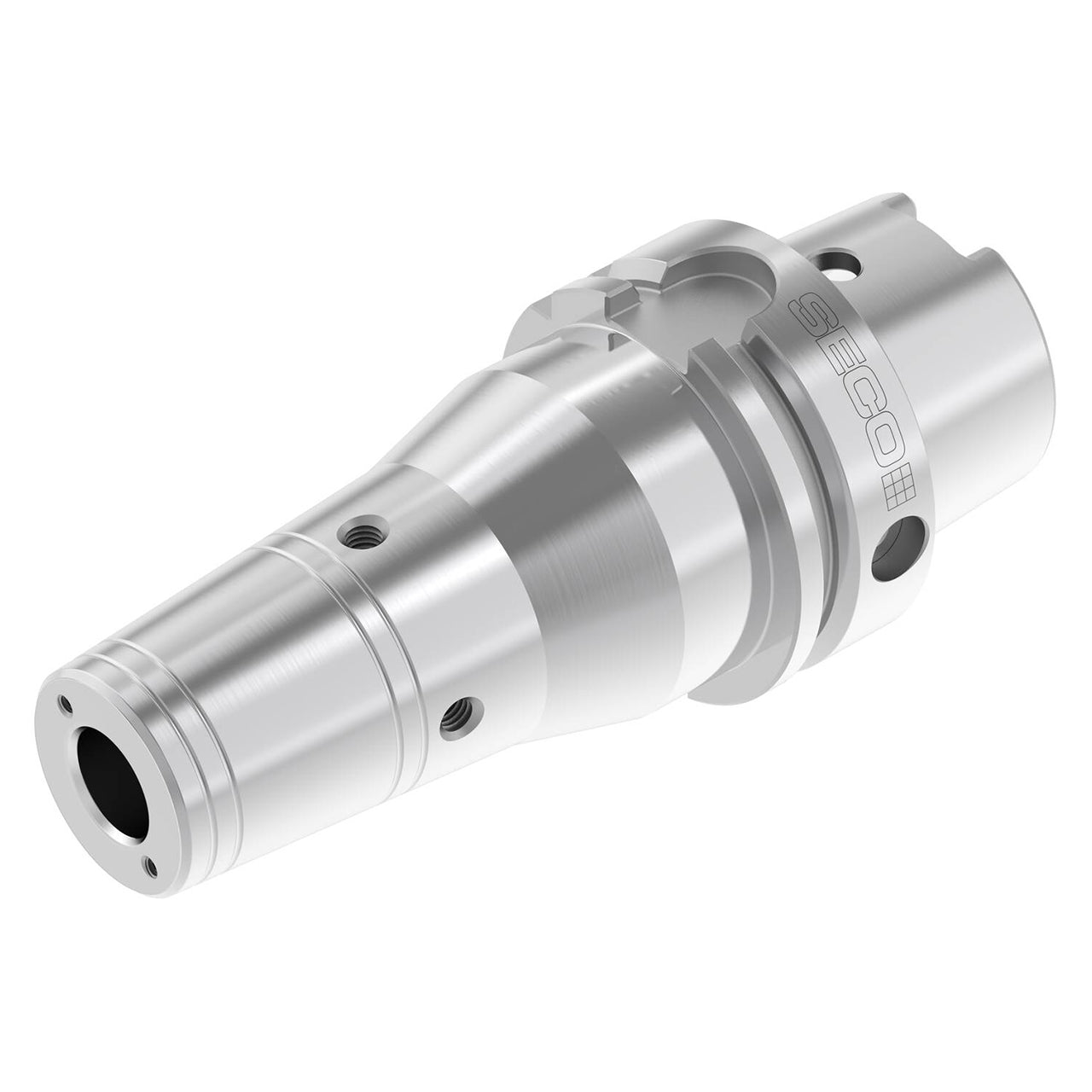

| Product Type | Shrink-Fit Tool Holder |
