Product Specifications
| Manufacturer Part Number | 02845494 |
| Body Diameter 1 (Decimal Inch) | 0.945" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Decimal Inch) | 1.267" |
| Body Diameter 2 (mm) | 32.18mm |
| Body Diameter 3 (Decimal Inch) | 3.445" |
| Body Diameter 3 (mm) | 87.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.315" |
| Connection Bore Diameter (mm) | 8.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Minimum Connection Bore Diameter (mm) | 8.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Maximum Connection Bore Diameter (mm) | 8.00mm |
| Thread Diameter Size | M6x1 |
| Body Length (Decimal Inch) | 5.158" |
| Body Length (mm) | 131.00mm |
| Body Length 1 (Decimal Inch) | 2.047" |
| Body Length 1 (mm) | 52.00mm |
| Functional Length (Decimal Inch) | 5.276" |
| Functional Length (mm) | 134.00mm |
| Minimum Functional Length (Decimal Inch) | 4.882" |
| Protruding Length (Decimal Inch) | 6.299" |
| Protruding Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 1.024" |
| Clamping Length (mm) | 26.00mm |
| Overall Length (Decimal Inch) | 8.268" |
| Overall Length (mm) | 210.00mm |
| Connection Bore Depth (mm) | 37.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.472" |
| Radial Location (mm) | 12.00mm |

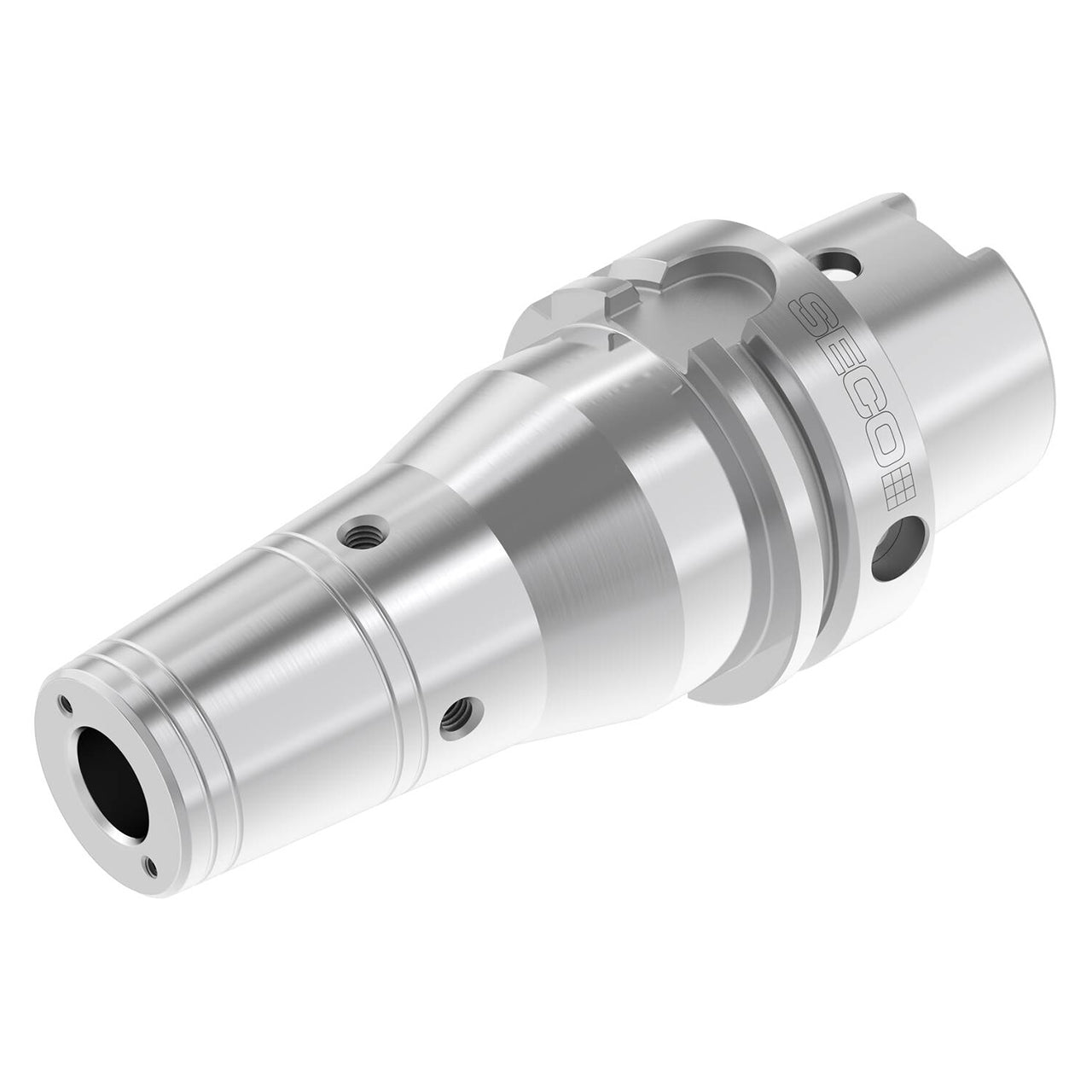

| Product Type | Shrink-Fit Tool Holder |
