Product Specifications
| Manufacturer Part Number | 02845449 |
| Body Diameter 1 (Decimal Inch) | 0.945" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Decimal Inch) | 1.217" |
| Body Diameter 2 (mm) | 30.90mm |
| Connection Bore Diameter (Decimal Inch) | 0.236" |
| Connection Bore Diameter (mm) | 6.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Maximum Connection Bore Diameter (mm) | 6.00mm |
| Body Length (Decimal Inch) | 1.732" |
| Body Length (mm) | 44.00mm |
| Protruding Length (Decimal Inch) | 2.756" |
| Protruding Length (mm) | 70.00mm |
| Clamping Length (Decimal Inch) | 0.866" |
| Clamping Length (mm) | 22.00mm |
| Overall Length (Decimal Inch) | 4.016" |
| Overall Length (mm) | 102.00mm |
| Connection Bore Depth (mm) | 37.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.472" |
| Radial Location (mm) | 12.00mm |

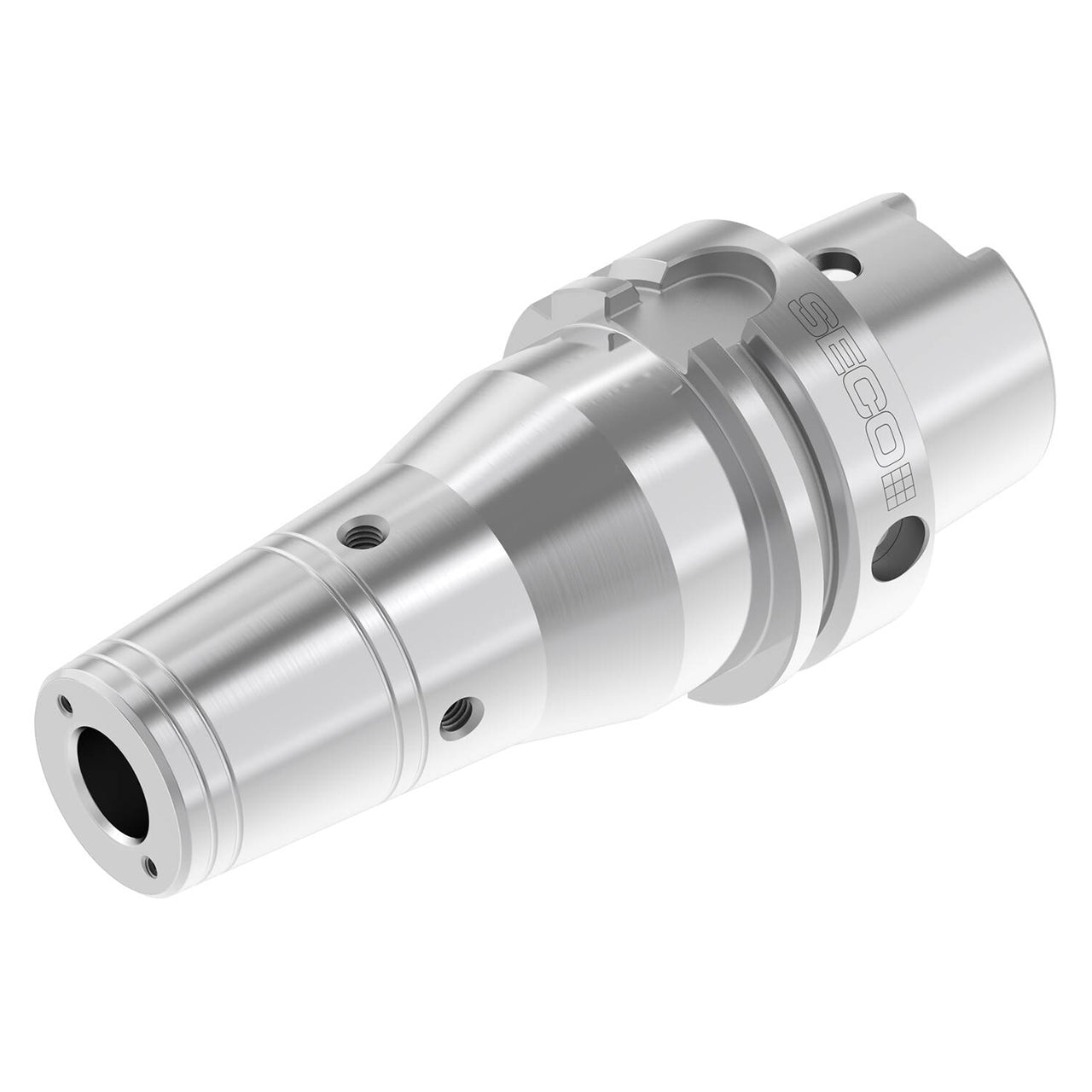

| Product Type | Shrink-Fit Tool Holder |
