Product Specifications
| Manufacturer Part Number | 02844107 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Protruding Length (Decimal Inch) | 5.906" |
| Protruding Length (mm) | 150.00mm |
| Shank Length (Decimal Inch) | 6.693" |
| Shank Length (mm) | 170.00mm |
| Overall Length (Decimal Inch) | 7.874" |
| Overall Length (mm) | 200.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 15000 rpm |
| Shank Type | Cylindrical |

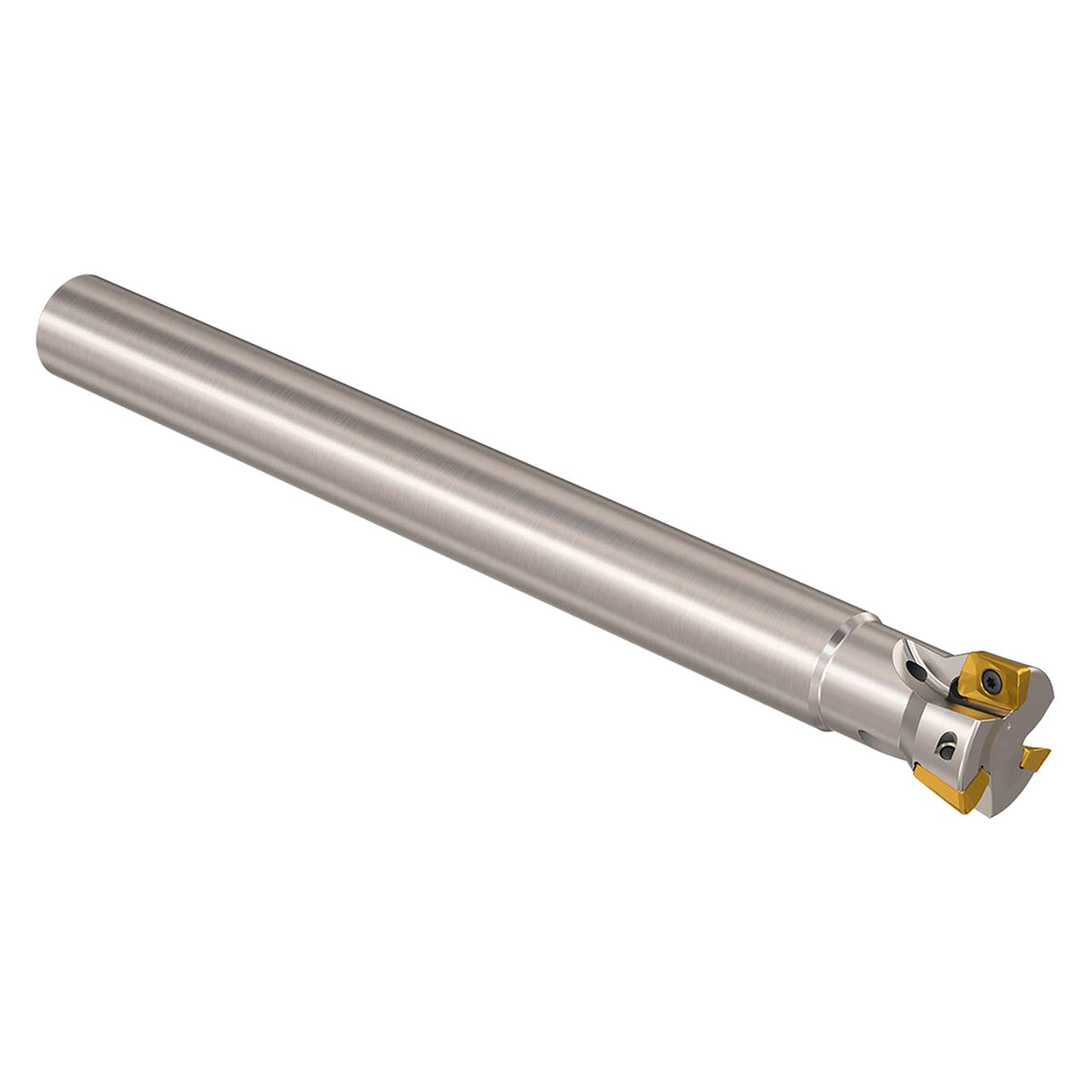

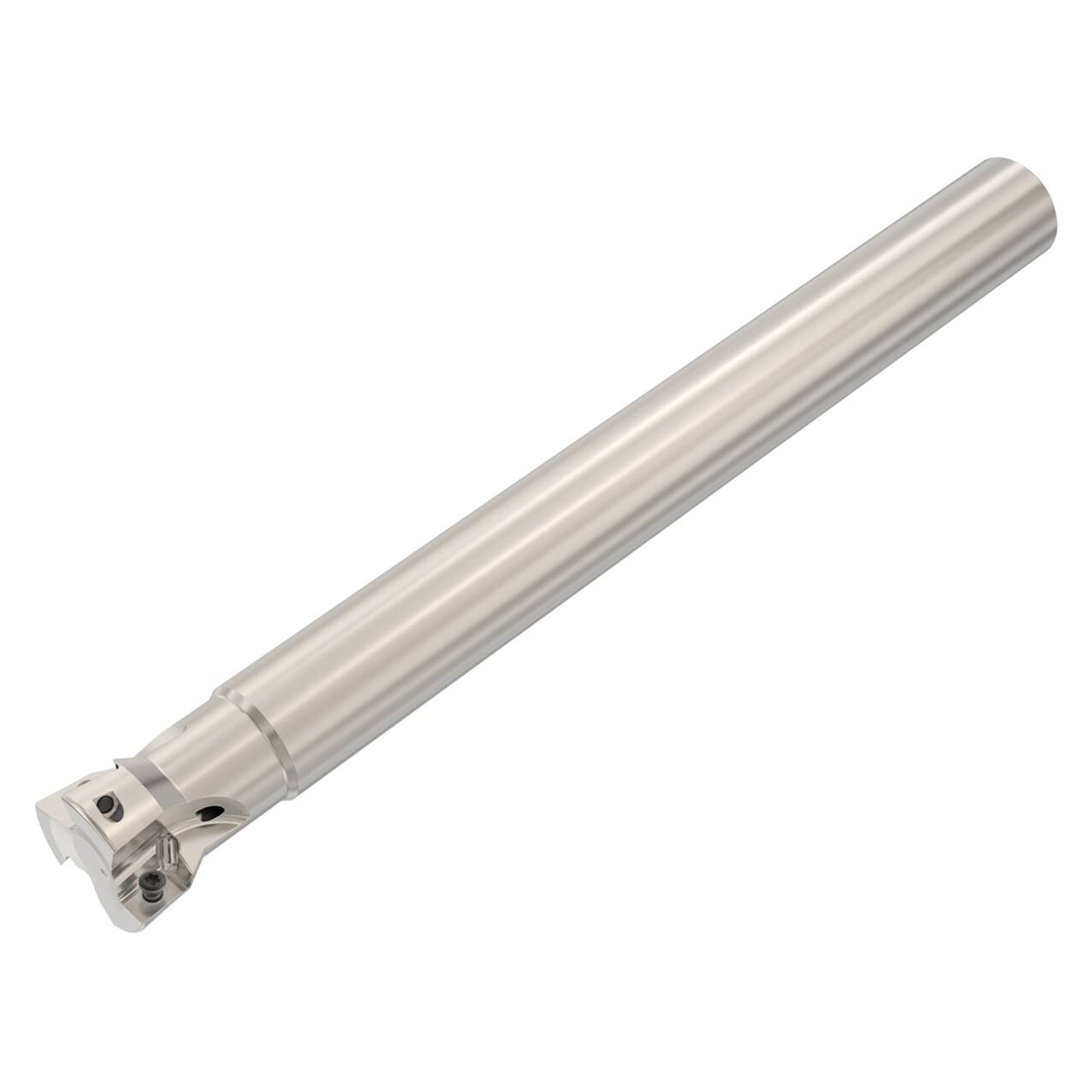

| Product Type | Plunge Mill |
