Product Specifications
| Manufacturer Part Number | 02834788 |

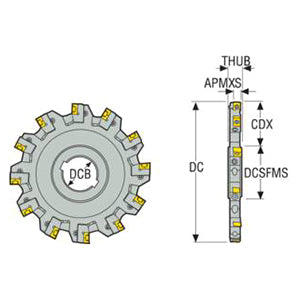

| Cutting Diameter (Decimal Inch) | 5.000" |
| Cutting Diameter (mm) | 127.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.252" |
| Contact Surface Diameter Machine Side (mm) | 57.20mm |
| Functional Length (Decimal Inch) | 0.469" |
| Functional Length (mm) | 11.90mm |
| Keyway Width (Decimal Inch) | 0.375" |
| Keyway Width (mm) | 9.53mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Maximum Depth of Cut (mm) | 5.00mm |
| Maximum Cutting Depth (Decimal Inch) | 1.299" |
| Maximum Cutting Depth (mm) | 33.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 8400 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0504 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

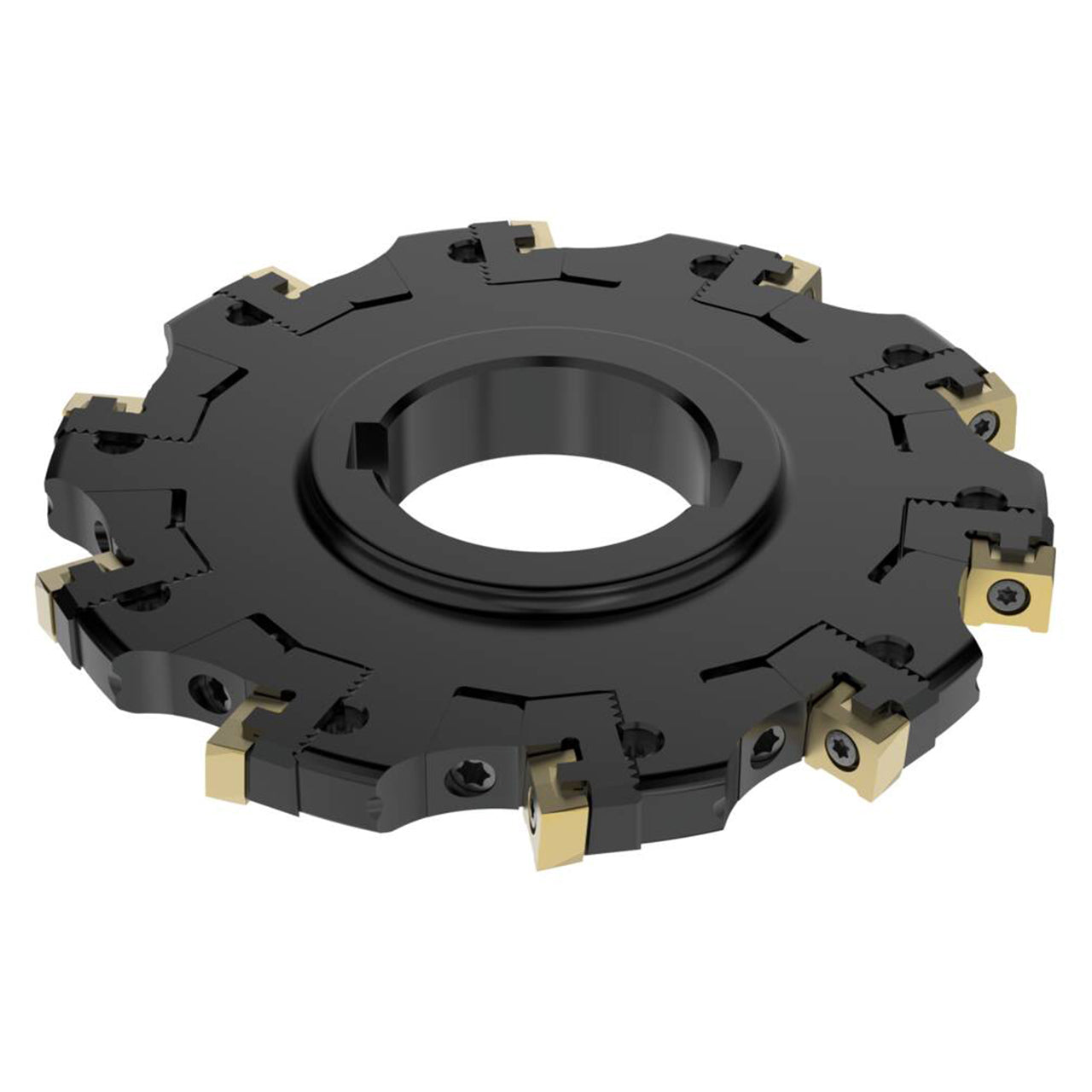

| Product Type | Indexable Slotting Cutter |
