Product Specifications
| Manufacturer Part Number | 02829940 |
| Cutting Diameter (mm) | 63.00mm |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 124.25mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 113.12mm |
| Functional Length (mm) | 140.00mm |
| Overall Length (mm) | 178.00mm |
| Maximum Depth of Cut (mm) | 107.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -5.8 Degree |
| Rake Radial Angle (Degree) | -5.8 Degree |
| Rake Orthogonal Angle (Degree) | -5.8 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 5 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Maximum Rotational Speed (rpm) | 12000 rpm |
| Insert Shape Code | X |
| Shank Type | Seco-Capto |

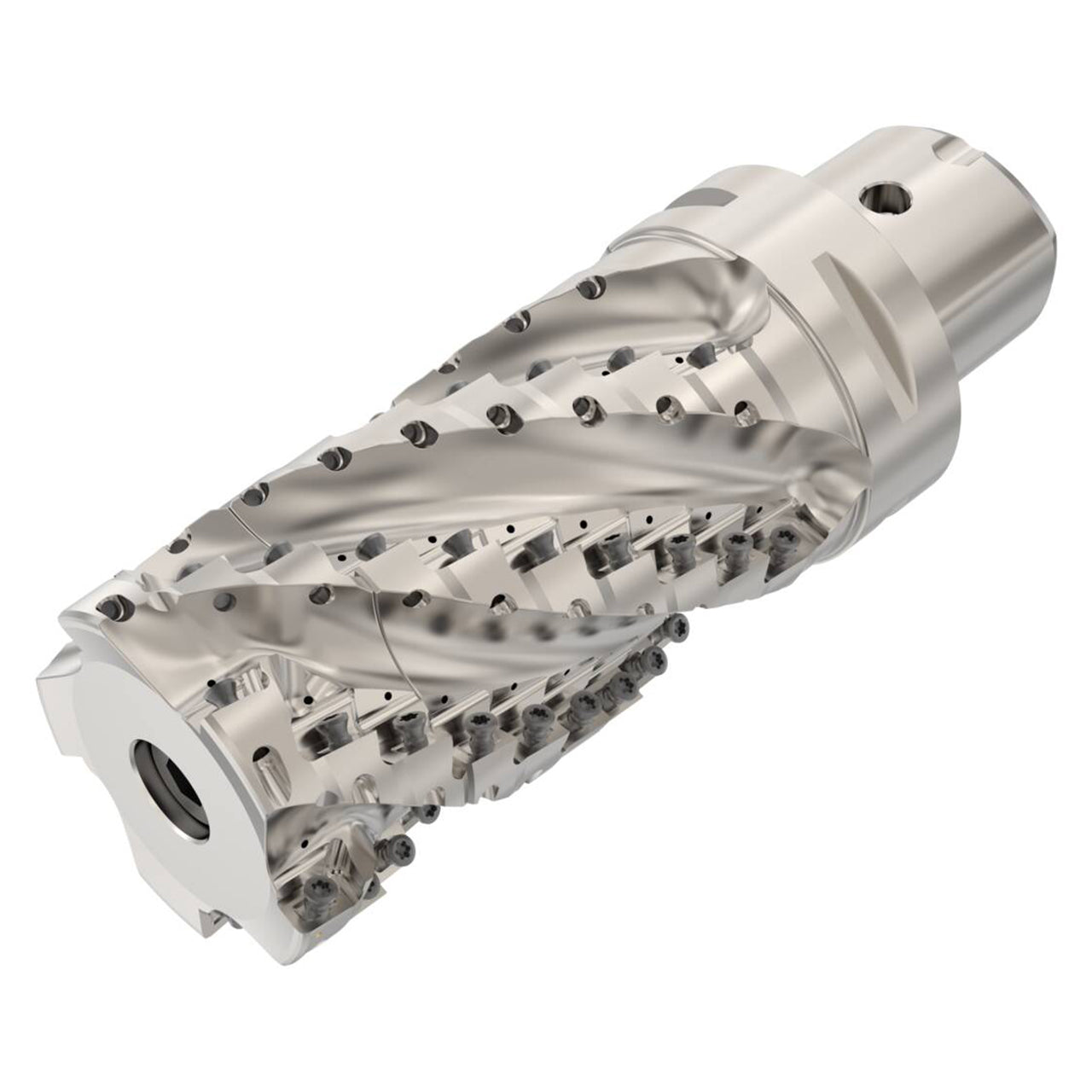

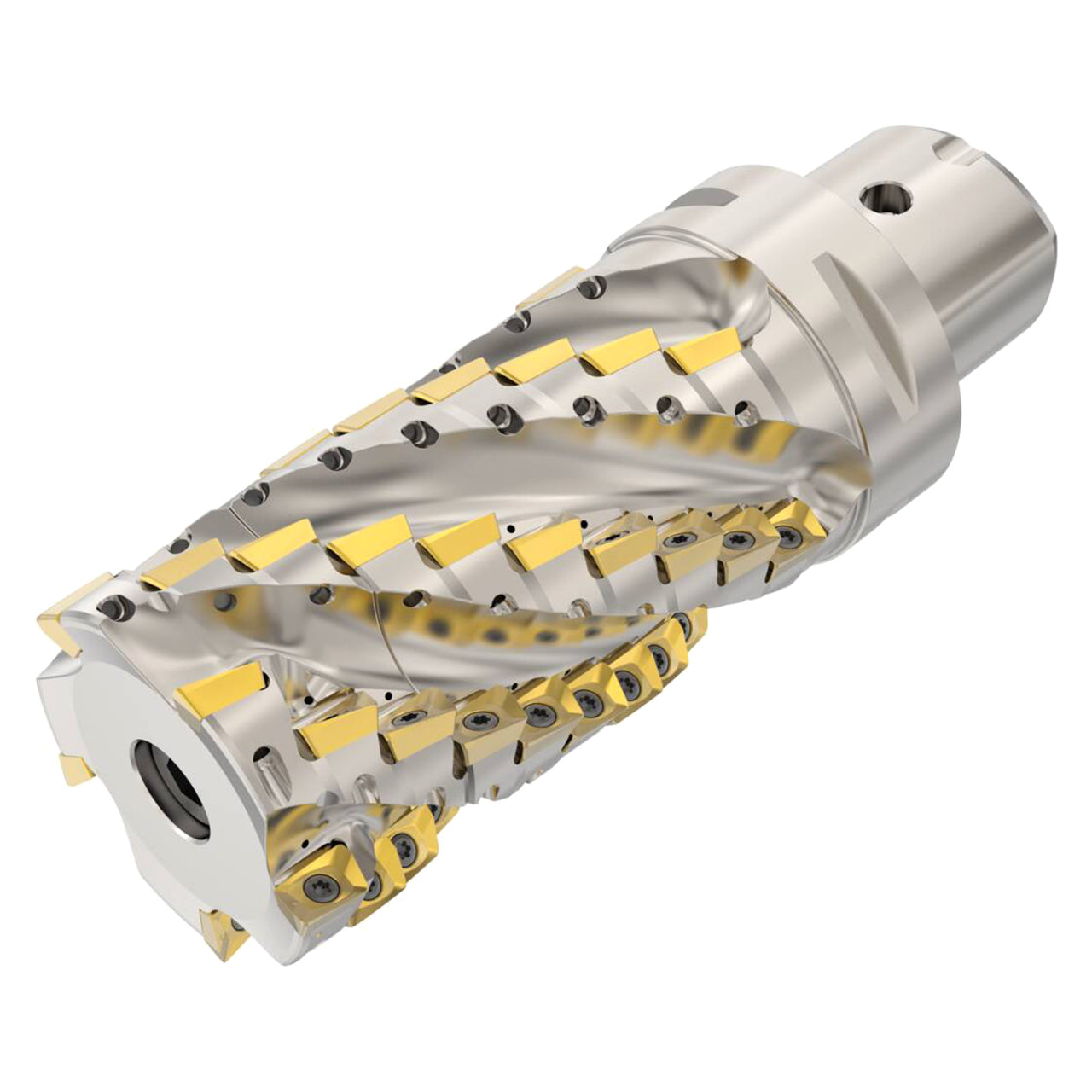

| Product Type | Indexable Square Shoulder Mill |
