Product Specifications
| Manufacturer Part Number | 02829698 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.500" |
| Minimum Cutting Diameter Internal (mm) | 38.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 12.000" |
| Functional Length (mm) | 304.80mm |
| Head Length (Decimal Inch) | 0.906" |
| Head Length (mm) | 23.01mm |
| Shank Width (Decimal Inch) | 0.929" |
| Shank Width (mm) | 23.60mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.284" |
| Maximum Radial Cutting Depth (mm) | 7.20mm |
| Maximum Cutting Depth (Decimal Inch) | 0.169" |
| Maximum Cutting Depth (mm) | 4.30mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.858" |
| Height of Tool Holder Shank (mm) | 21.80mm |
| Functional Width (Decimal Inch) | 0.750" |
| Functional Width (mm) | 19.05mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 107.5 Degree |
| Tool Cutting Edge Angle Code | Q |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 107.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 107.5 Degree |
| Inclination Angle (Degree) | -3.27 Degree |
| Insert Shape Code | D |
| Shank Type | Cylindrical |

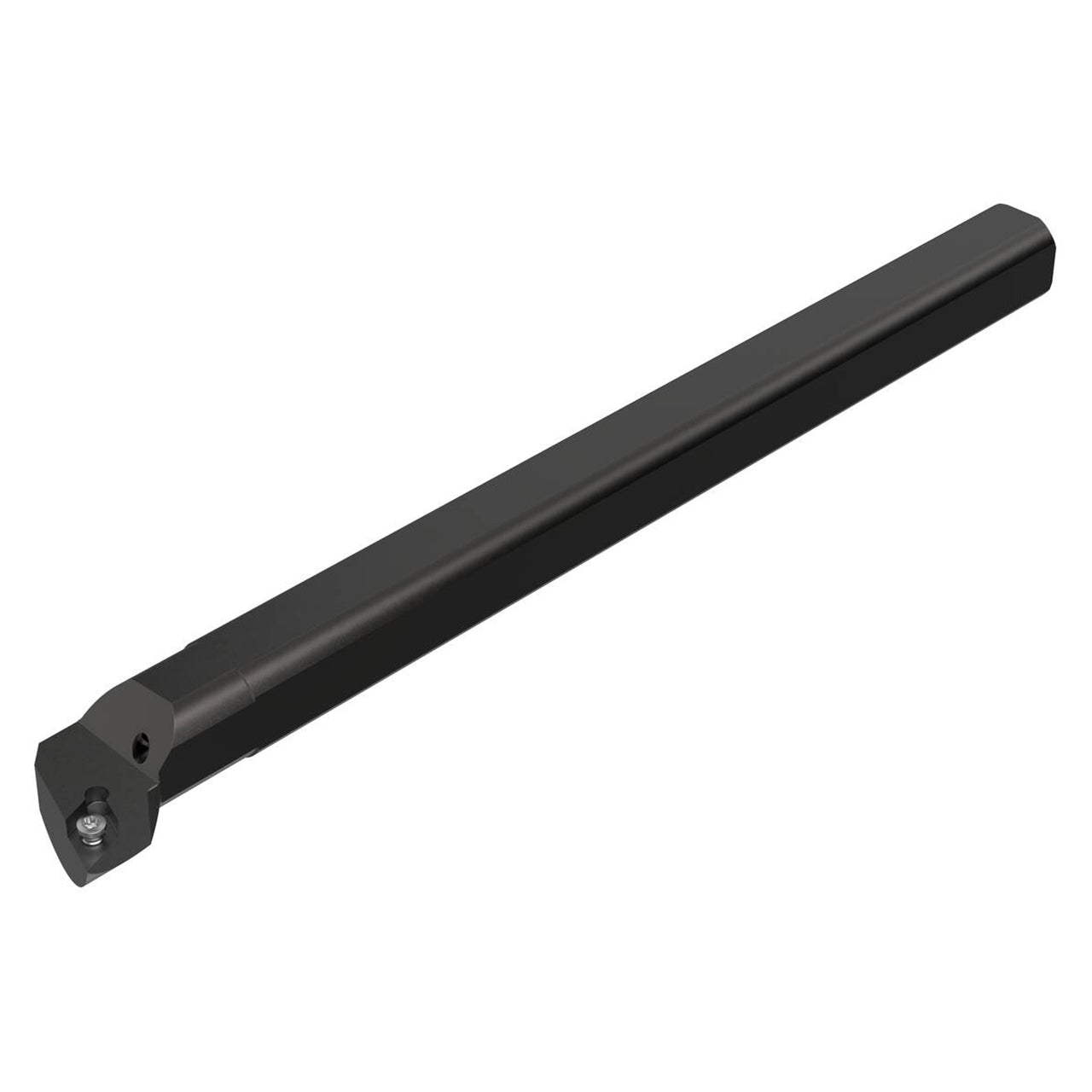

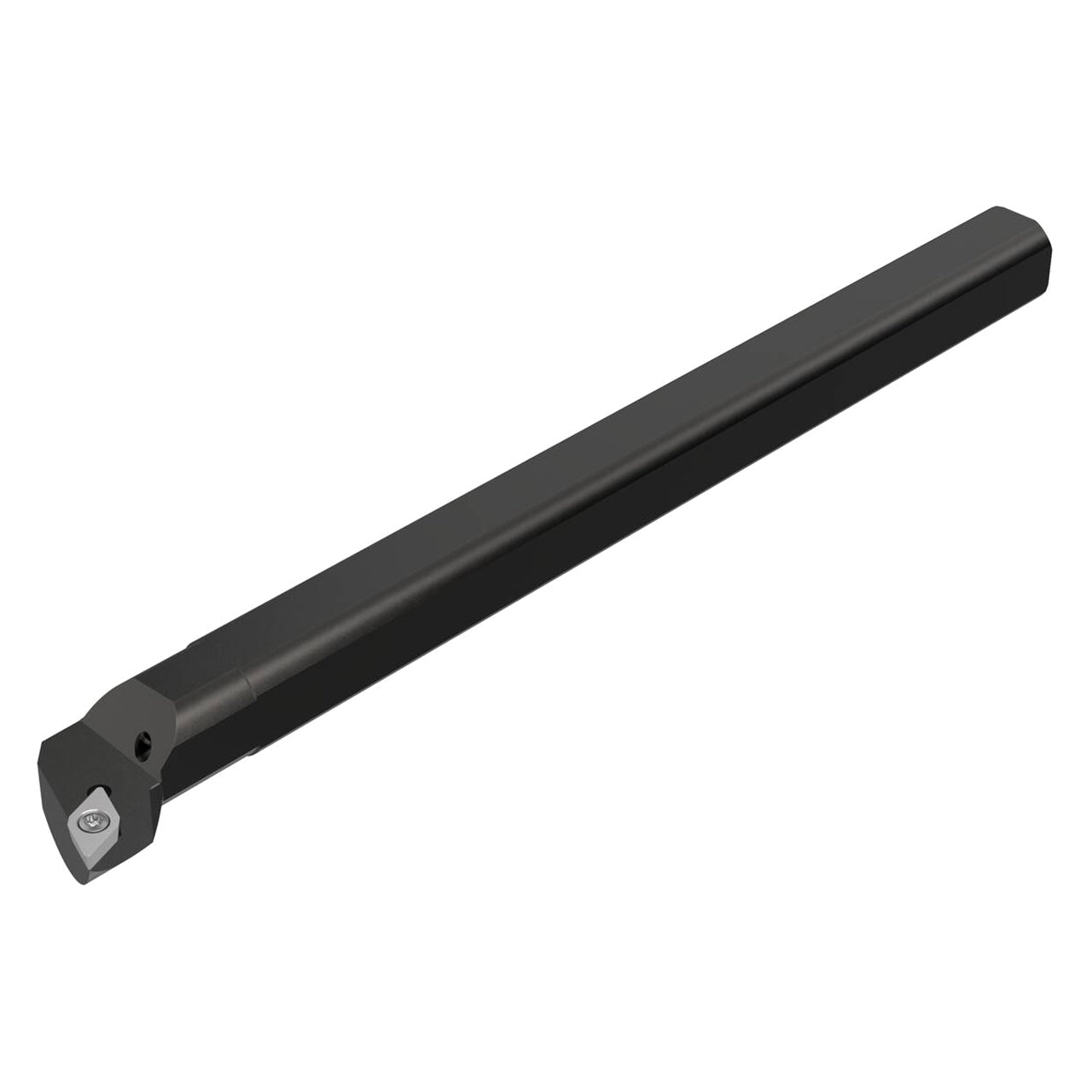

| Product Type | Indexable Boring Bar |
