Product Specifications
| Manufacturer Part Number | 02829691 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.125" |
| Minimum Cutting Diameter Internal (mm) | 28.58mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 10.000" |
| Functional Length (mm) | 254.00mm |
| Head Length (Decimal Inch) | 0.773" |
| Head Length (mm) | 19.63mm |
| Shank Width (Decimal Inch) | 0.729" |
| Shank Width (mm) | 18.52mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.213" |
| Maximum Radial Cutting Depth (mm) | 5.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.173" |
| Maximum Cutting Depth (mm) | 4.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.708" |
| Height of Tool Holder Shank (mm) | 17.98mm |
| Functional Width (Decimal Inch) | 0.562" |
| Functional Width (mm) | 14.28mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 107.5 Degree |
| Tool Cutting Edge Angle Code | Q |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 107.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 107.5 Degree |
| Inclination Angle (Degree) | -5.95 Degree |
| Insert Shape Code | D |
| Shank Type | Cylindrical |

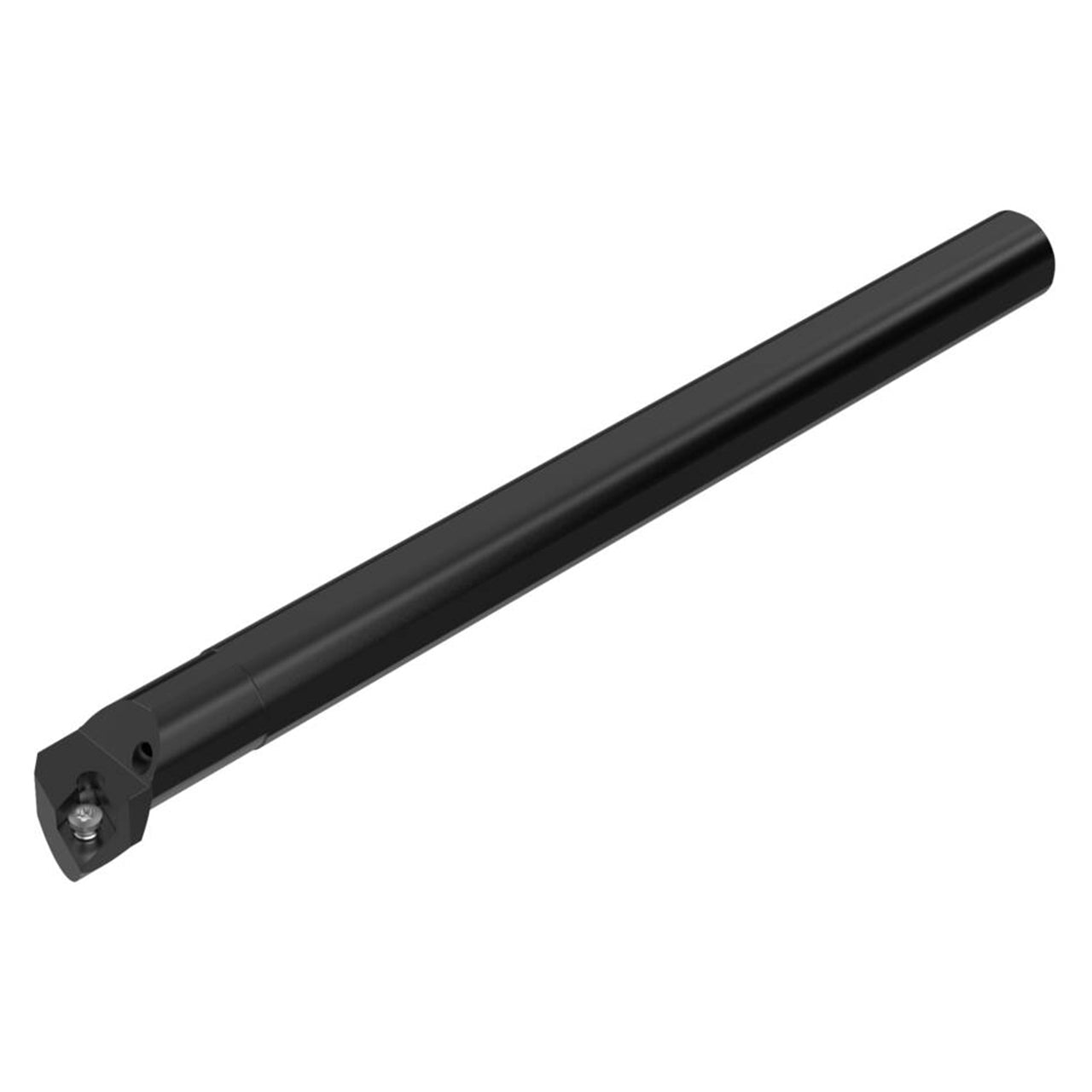

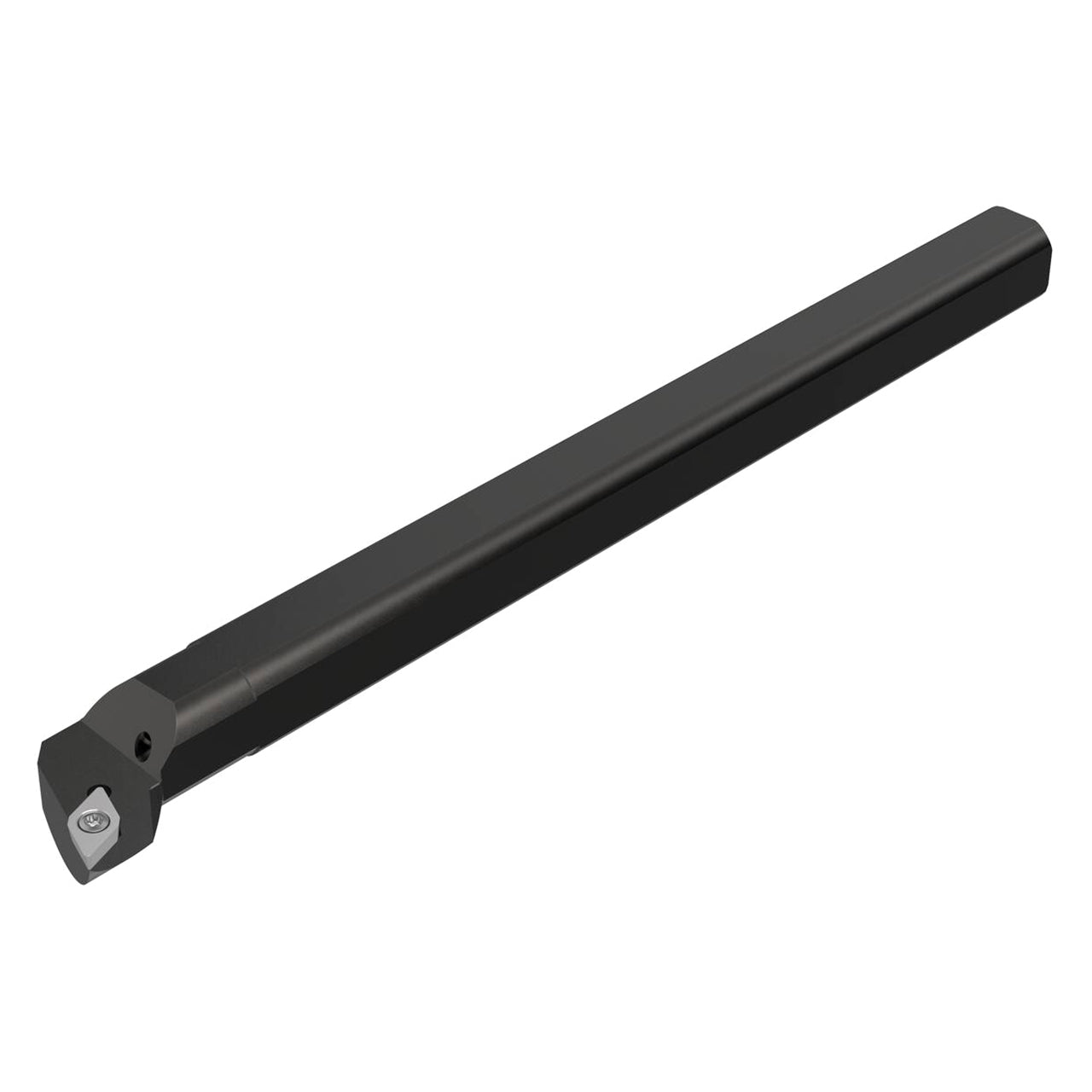

| Product Type | Indexable Boring Bar |
