Product Specifications
| Manufacturer Part Number | 02829686 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.812" |
| Minimum Cutting Diameter Internal (mm) | 20.62mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.250" |
| Head Length (mm) | 31.75mm |
| Shank Width (Decimal Inch) | 0.578" |
| Shank Width (mm) | 14.69mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.532" |
| Height of Tool Holder Shank (mm) | 13.50mm |
| Functional Width (Decimal Inch) | 0.406" |
| Functional Width (mm) | 10.31mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 118.92 Degree |
| Inclination Angle (Degree) | -4.7 Degree |
| Insert Shape Code | T |
| Shank Type | Cylindrical |

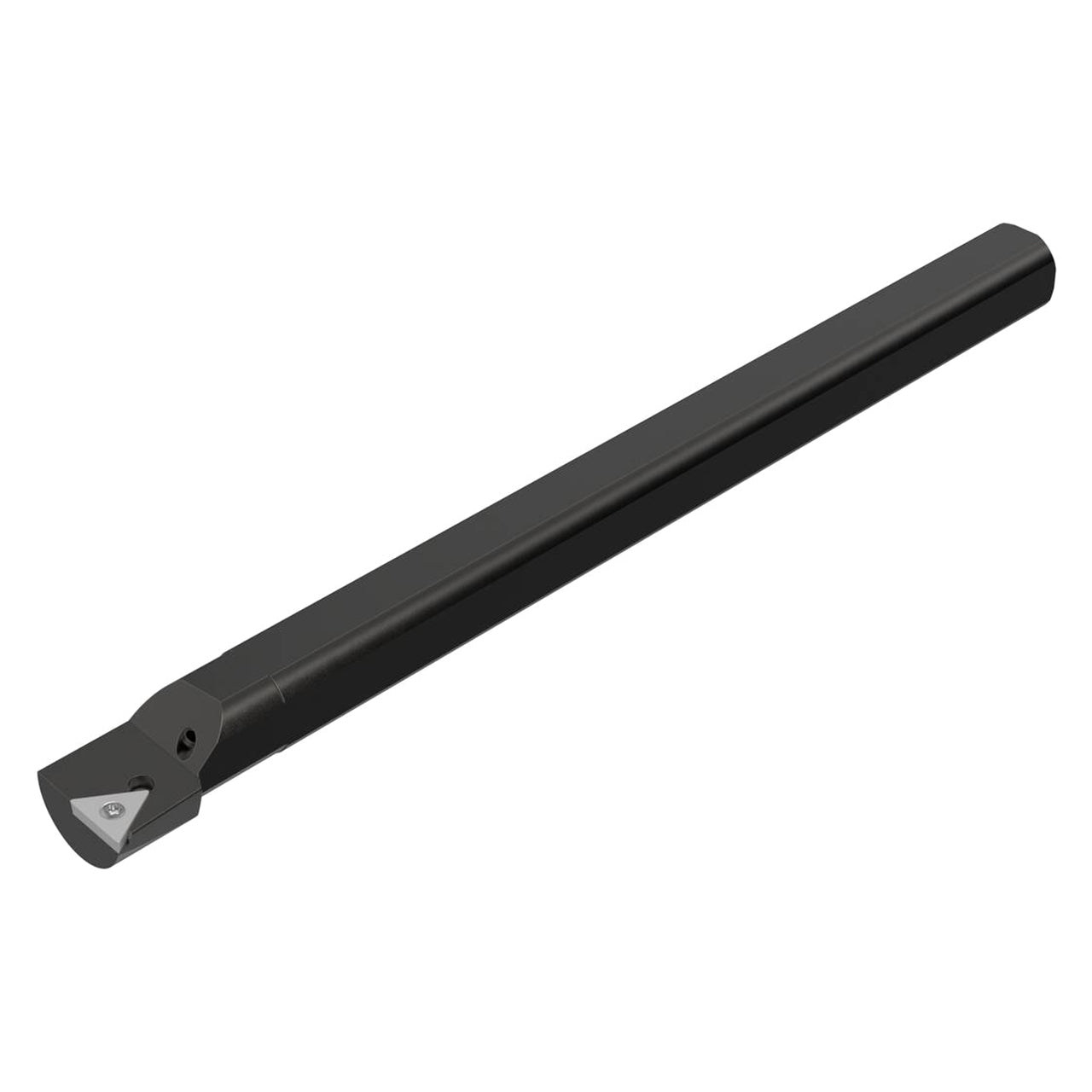

| Product Type | Indexable Boring Bar |
