Product Specifications
| Manufacturer Part Number | 02829685 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.000" |
| Minimum Cutting Diameter Internal (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.250" |
| Head Length (mm) | 31.75mm |
| Shank Width (Decimal Inch) | 0.463" |
| Shank Width (mm) | 11.75mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.177" |
| Maximum Radial Cutting Depth (mm) | 4.50mm |
| Maximum Cutting Depth (Decimal Inch) | 0.047" |
| Maximum Cutting Depth (mm) | 1.20mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.425" |
| Height of Tool Holder Shank (mm) | 10.80mm |
| Functional Width (Decimal Inch) | 0.500" |
| Functional Width (mm) | 12.70mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | U |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 122 Degree |
| Inclination Angle (Degree) | -3.7 Degree |
| Insert Shape Code | D |
| Shank Type | Cylindrical |

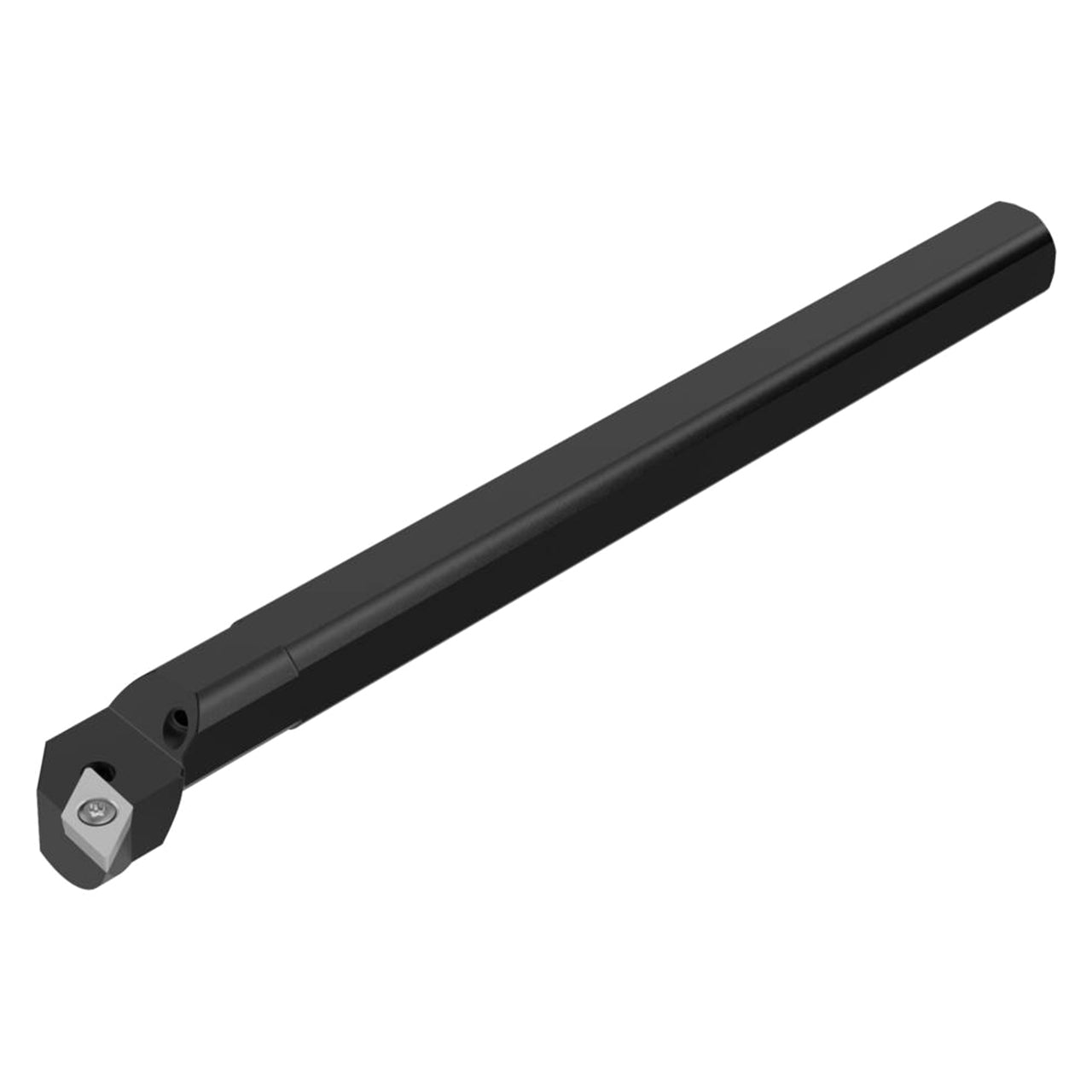

| Product Type | Indexable Boring Bar |
