Product Specifications
| Manufacturer Part Number | 02829679 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.728" |
| Minimum Cutting Diameter Internal (mm) | 18.50mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.250" |
| Head Length (mm) | 31.75mm |
| Shank Width (Decimal Inch) | 0.578" |
| Shank Width (mm) | 14.69mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.130" |
| Maximum Radial Cutting Depth (mm) | 3.31mm |
| Maximum Cutting Depth (Decimal Inch) | 0.034" |
| Maximum Cutting Depth (mm) | 0.85mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.532" |
| Height of Tool Holder Shank (mm) | 13.50mm |
| Functional Width (Decimal Inch) | 0.406" |
| Functional Width (mm) | 10.31mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -5.34 Degree |
| Shank Type | Cylindrical |

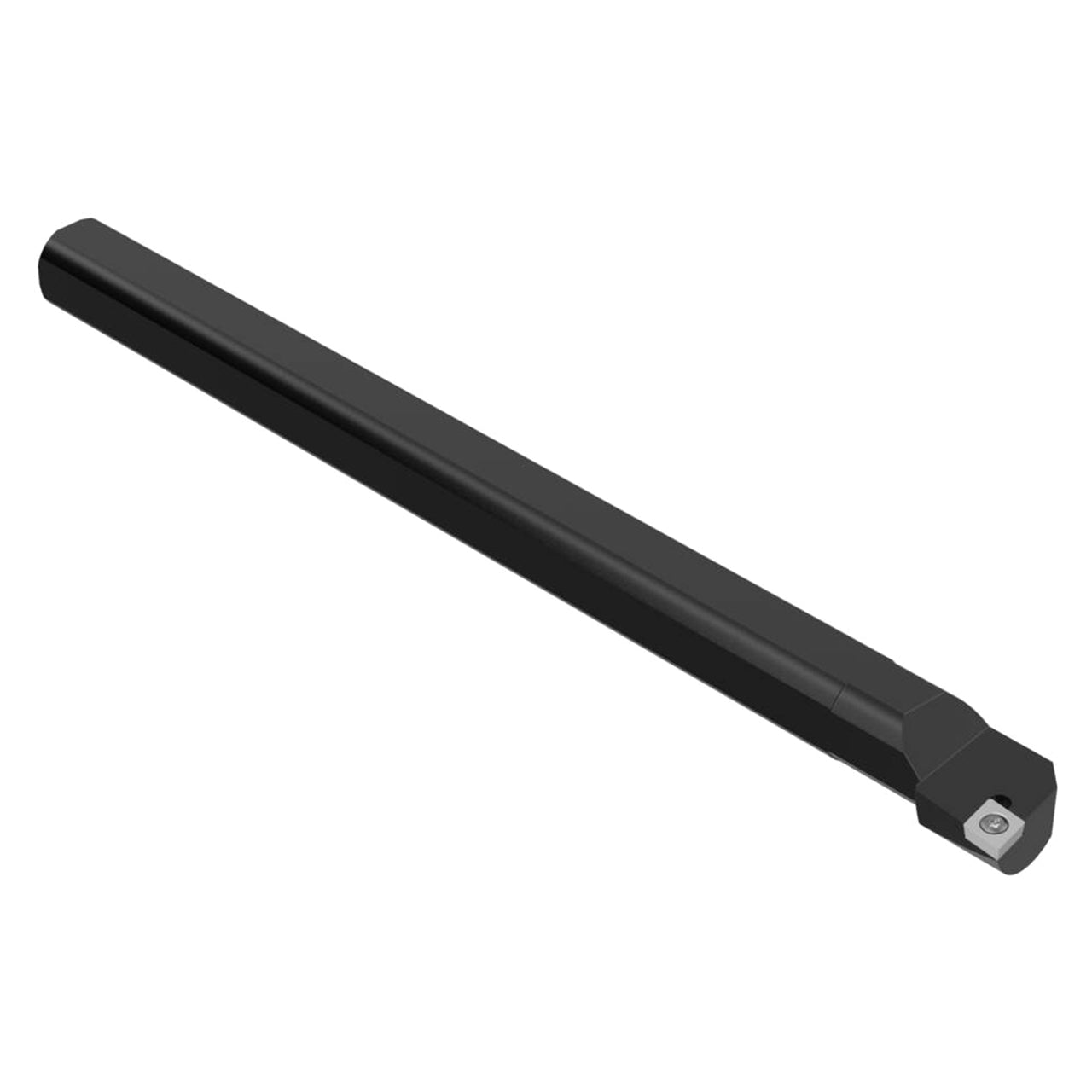

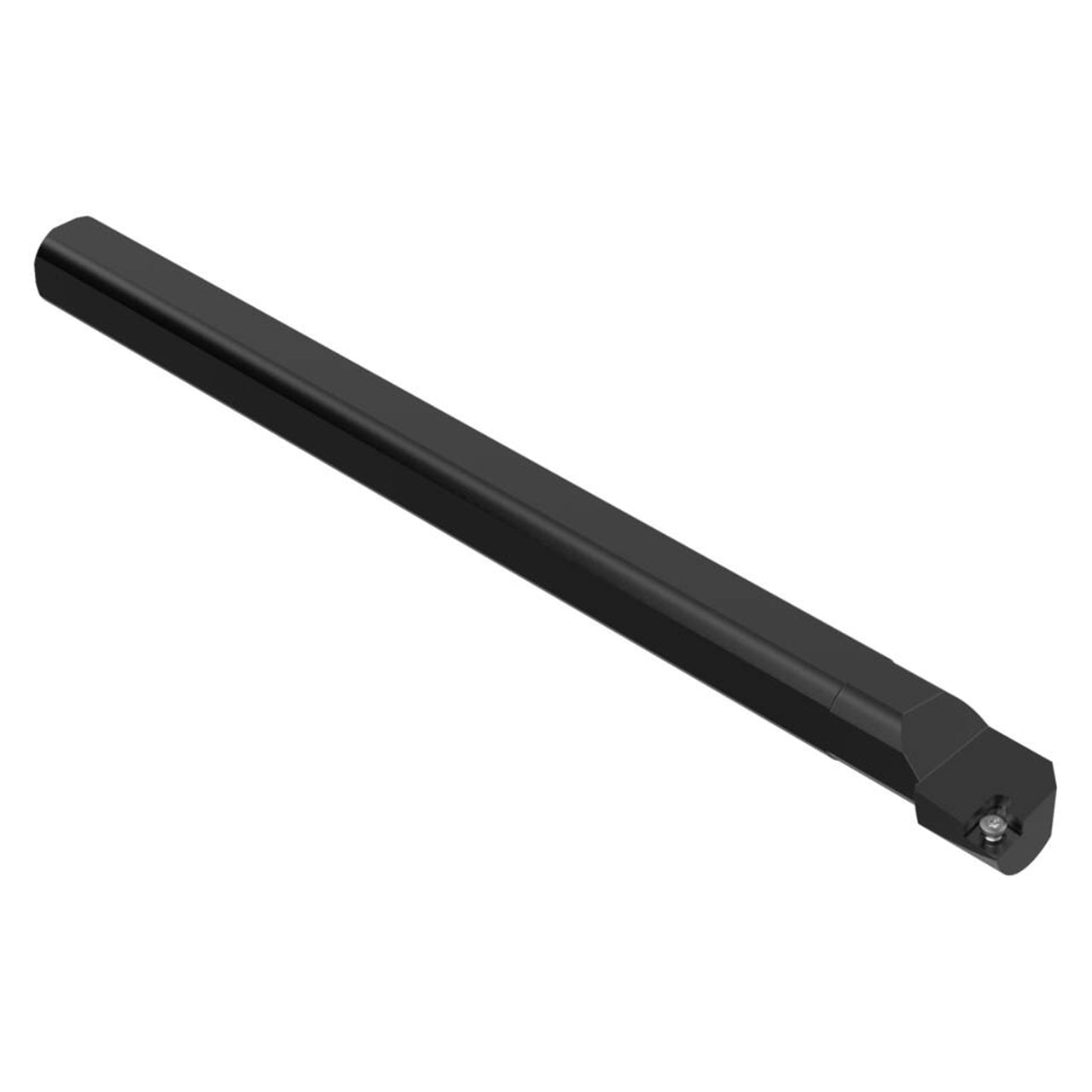

| Product Type | Indexable Boring Bar |
