Product Specifications
| Manufacturer Part Number | 02828506 |
| Connection Bore Diameter (Decimal Inch) | 2.362" |
| Connection Bore Diameter (mm) | 60.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 25.748" |
| Minimum Cutting Diameter (mm) | 654.00mm |
| Connection Diameter (Decimal Inch) | 5.315" |
| Connection Diameter (mm) | 135.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 43.504" |
| Maximum Cutting Diameter (mm) | 1105.00mm |
| Body Length (Decimal Inch) | 3.032" |
| Body Length (mm) | 77.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Connection Bore Depth (mm) | 24.00mm |
| Body Width (Decimal Inch) | 25.1969 |
| Body Width (mm) | 640.0 |
| Maximum Rotational Speed (rpm) | 170 rpm |

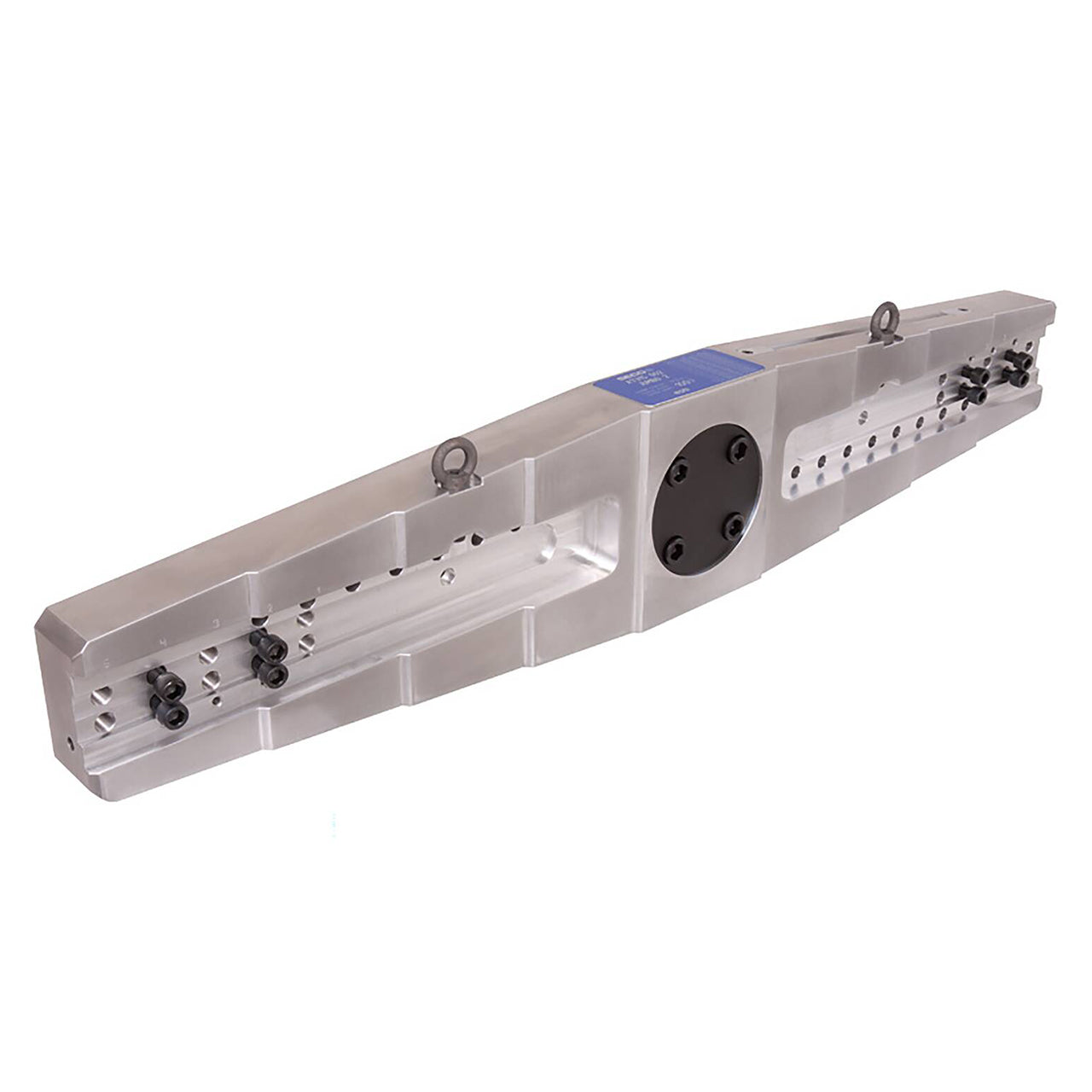

| Product Type | Boring Head Bridge Bar |
