Product Specifications
| Manufacturer Part Number | 02827999 |

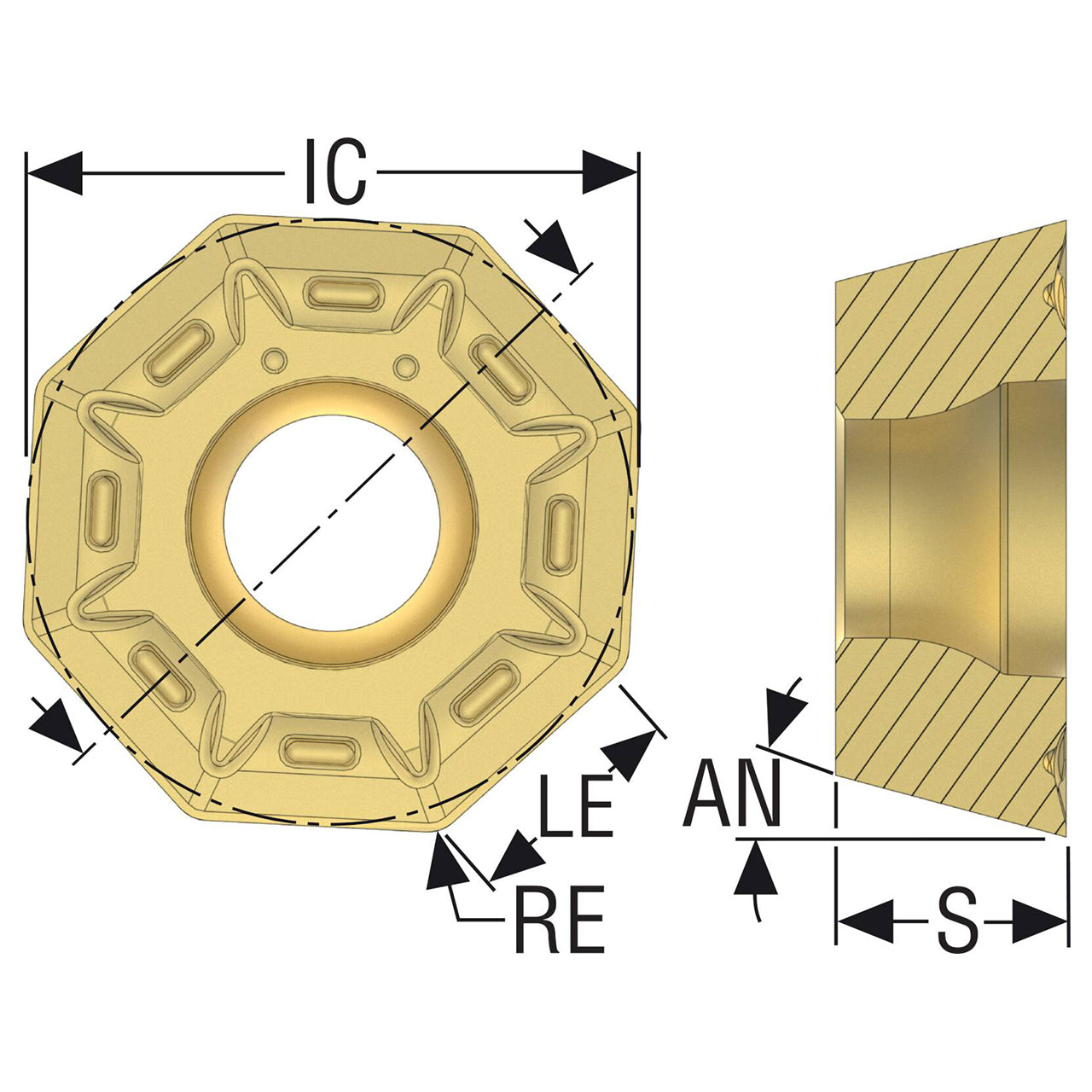

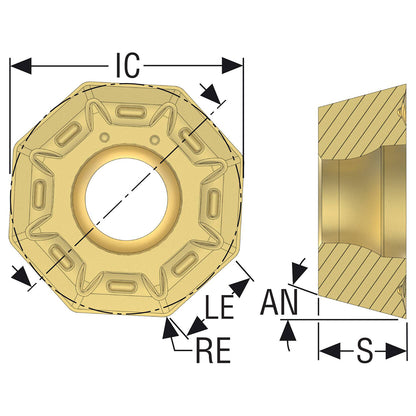

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.181" |
| Cutting Edge Effective Length (mm) | 4.60mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 8 |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD20 |
| Pocket Seat Code of The Cutter | OD.T0504 |
| Insert Size And Shape | ODMT0504 |
| Insert Rake Angle (Degree) | 14 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

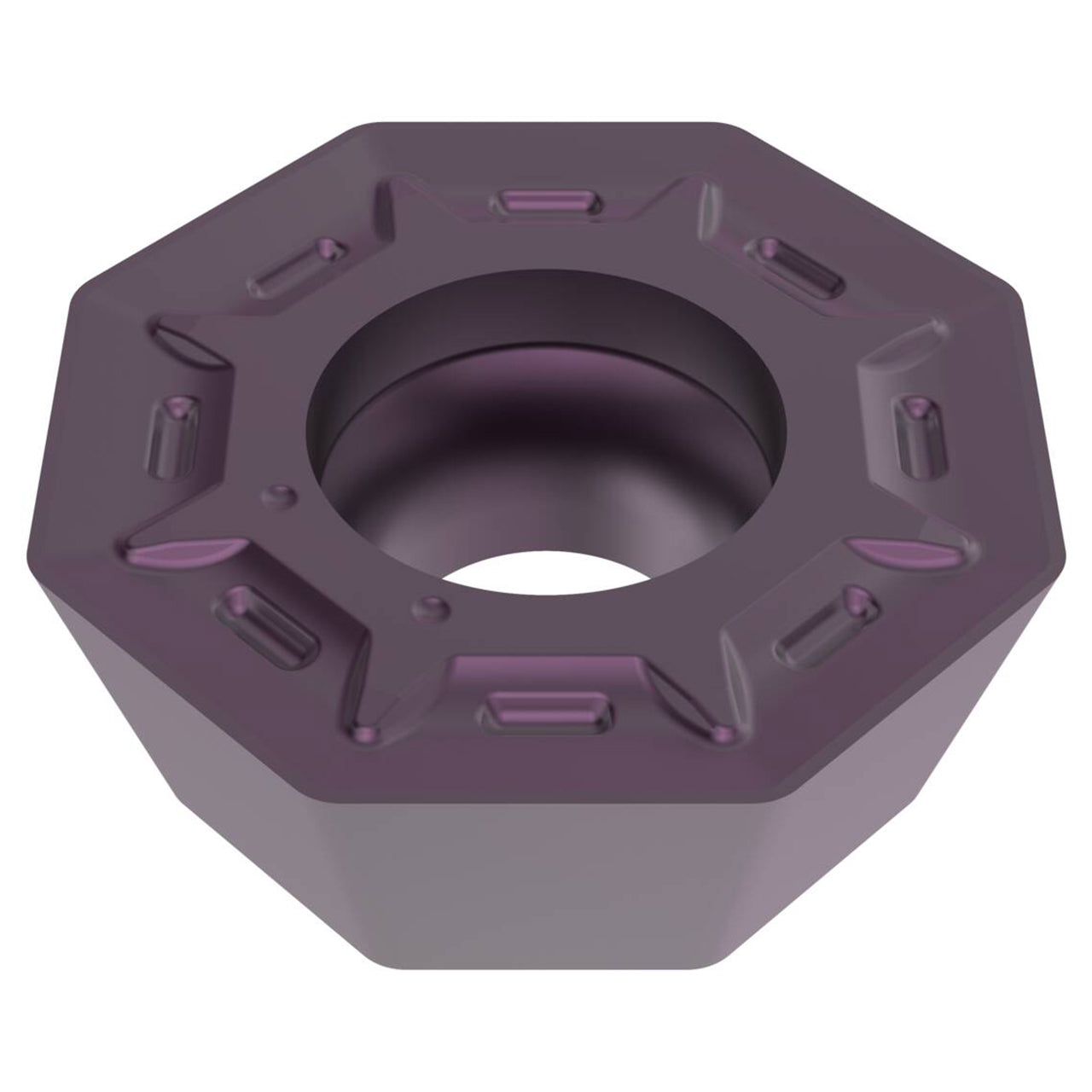

| Product Type | Octomill Insert |
