Product Specifications
| Manufacturer Part Number | 02827476 |

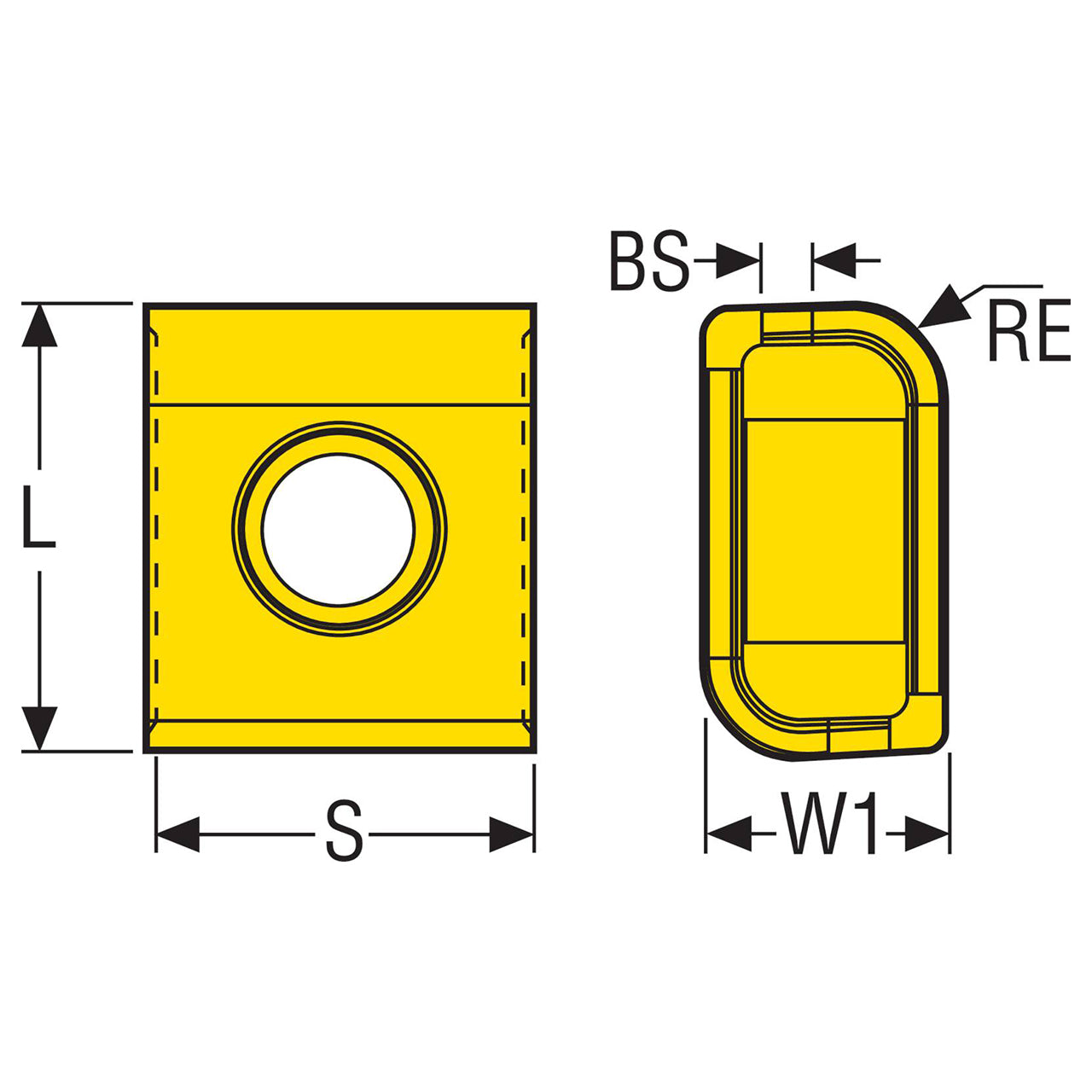

| Cutting Edge Effective Length (Decimal Inch) | 0.634" |
| Cutting Edge Effective Length (mm) | 16.10mm |
| Corner Chamfer Width (Decimal Inch) | 0.007" |
| Corner Chamfer Width (mm) | 0.19mm |
| Corner Radius (Decimal Inch) | 0.158" |
| Corner Radius (mm) | 4.00mm |
| Insert Thickness (Decimal Inch) | 0.553" |
| Insert Thickness (mm) | 14.05mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M13 |
| Pocket Seat Code of The Cutter | LNHQ1707 |
| Insert Size And Shape | LNHQ1707 |
| Insert Rake Angle (Degree) | 16 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

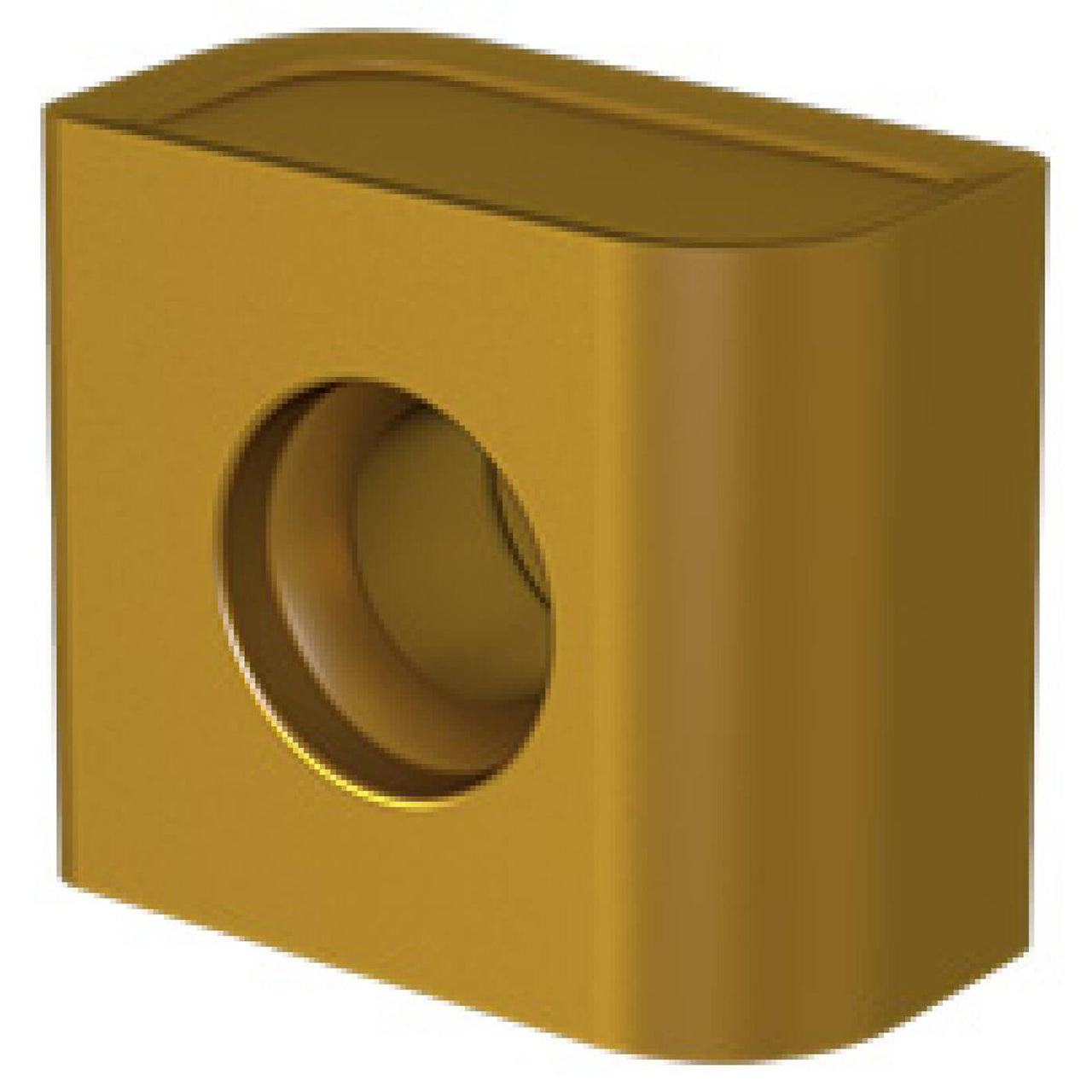

| Product Type | Disc Milling Insert |
