Product Specifications
| Manufacturer Part Number | 02827176 |
| Body Diameter 1 (Decimal Inch) | 1.969" |
| Body Diameter 1 (mm) | 50.00mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.079" |
| Minimum Connection Bore Diameter (mm) | 2.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Length (Decimal Inch) | 4.095" |
| Body Length (mm) | 104.00mm |
| Body Length 1 (Decimal Inch) | 4.095" |
| Body Length 1 (mm) | 104.00mm |
| Functional Length (Decimal Inch) | 3.071" |
| Functional Length (mm) | 78.00mm |
| Minimum Functional Length (Decimal Inch) | 2.913" |
| Protruding Length (Decimal Inch) | 5.118" |
| Protruding Length (mm) | 130.00mm |
| Overall Length (Decimal Inch) | 6.378" |
| Overall Length (mm) | 162.00mm |
| Data Chip Provision | 1 |

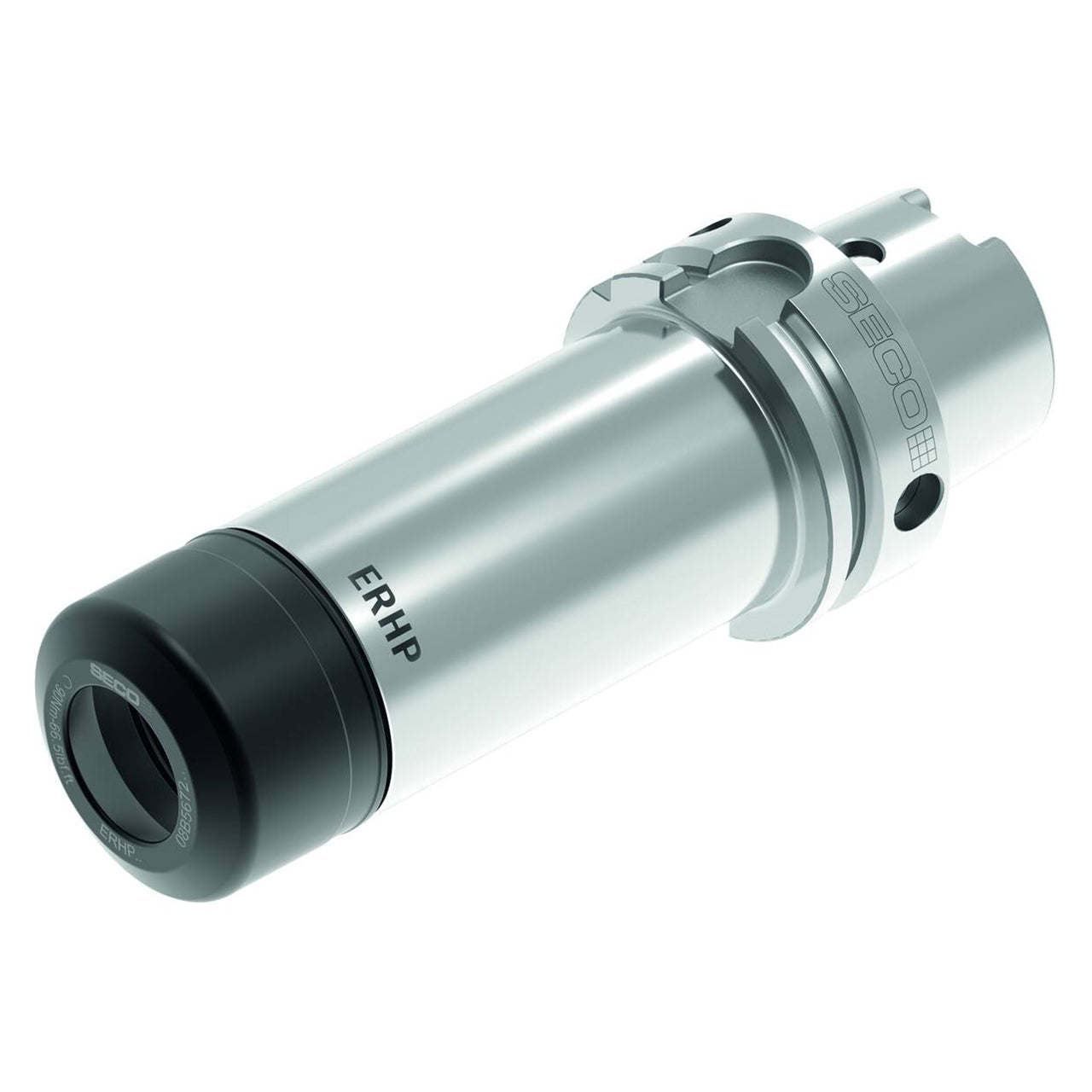

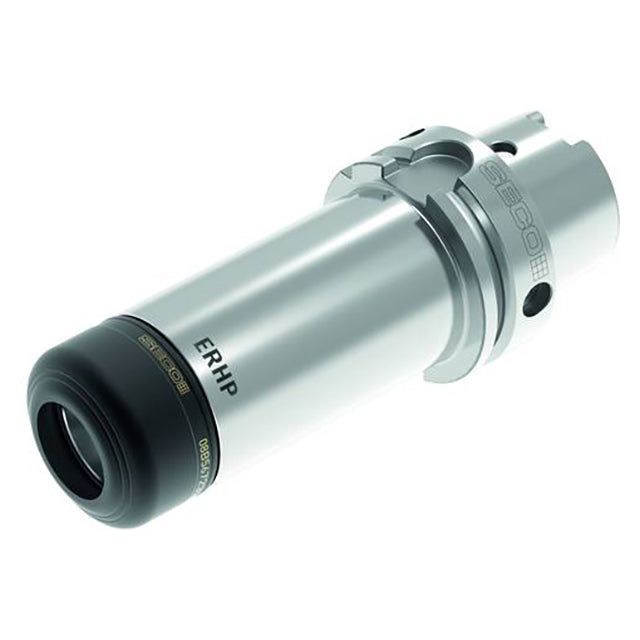

| Product Type | Collet Chuck |
