Product Specifications

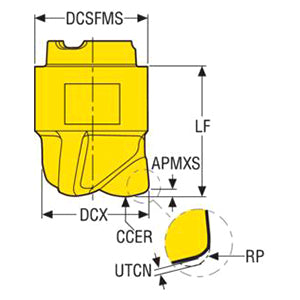

| Manufacturer Part Number | 02825085 |
| Cutting Diameter (Decimal Inch) | 0.310" |
| Cutting Diameter (mm) | 7.88mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.606" |
| Contact Surface Diameter Machine Side (mm) | 15.40mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.625" |
| Maximum Cutting Diameter (mm) | 15.88mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.925" |
| Maximum Helical Interpolation Hole Diameter (mm) | 23.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.677" |
| Minimum Helical Interpolation Hole Diameter (mm) | 17.20mm |
| Maximum Depth of Cut (Decimal Inch) | 0.035" |
| Maximum Depth of Cut (mm) | 0.90mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.307" |
| Curved Cutting Edge Radius (mm) | 7.80mm |
| Functional Length (Decimal Inch) | 0.728" |
| Functional Length (mm) | 18.50mm |
| Torque (Nm) | 19Nm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Rake Radial Angle (Degree) | 1 Degree |
| Axial Rake Angle (Degree) | 10 Degree |
| Material | Carbide |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Programming Radius (Decimal Inch) | 0.071" |
| Programming Radius (mm) | 1.79mm |
| Peripheral Effective Cutting Edge Count | 3 |
| Peripheral Edges In The Tool | 3 |
| Product Type | Slotting Milling Tip Insert |
