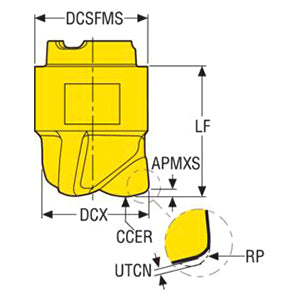

Product Specifications
| Manufacturer Part Number | 02825080 |
| Cutting Diameter (mm) | 5.00mm |
| Contact Surface Diameter Machine Side (mm) | 9.60mm |
| Maximum Cutting Diameter (mm) | 10.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 14.80mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.90mm |
| Maximum Depth of Cut (mm) | 0.60mm |
| Curved Cutting Edge Radius (mm) | 6.20mm |
| Functional Length (mm) | 11.00mm |
| Torque (Nm) | 11Nm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Axial Rake Angle (Degree) | 10 Degree |
| Material | Carbide |
| Corner Radius (mm) | 0.60mm |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Programming Radius (mm) | 1.13mm |
| Peripheral Effective Cutting Edge Count | 3 |
| Peripheral Edges In The Tool | 3 |
| Product Type | Slotting Milling Tip Insert |
