Product Specifications
| Manufacturer Part Number | 02823299 |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.441" |
| Head Length (mm) | 36.60mm |
| Functional Height (Decimal Inch) | 0.625" |
| Functional Height (mm) | 15.88mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.625" |
| Height of Tool Holder Shank (mm) | 15.88mm |
| Shank Width (Decimal Inch) | 0.625" |
| Shank Width (mm) | 15.88mm |
| Cutting Width (Decimal Inch) | 0.118" |
| Cutting Width (mm) | 3.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.256" |
| Maximum Cutting Depth (mm) | 6.50mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Square shank |

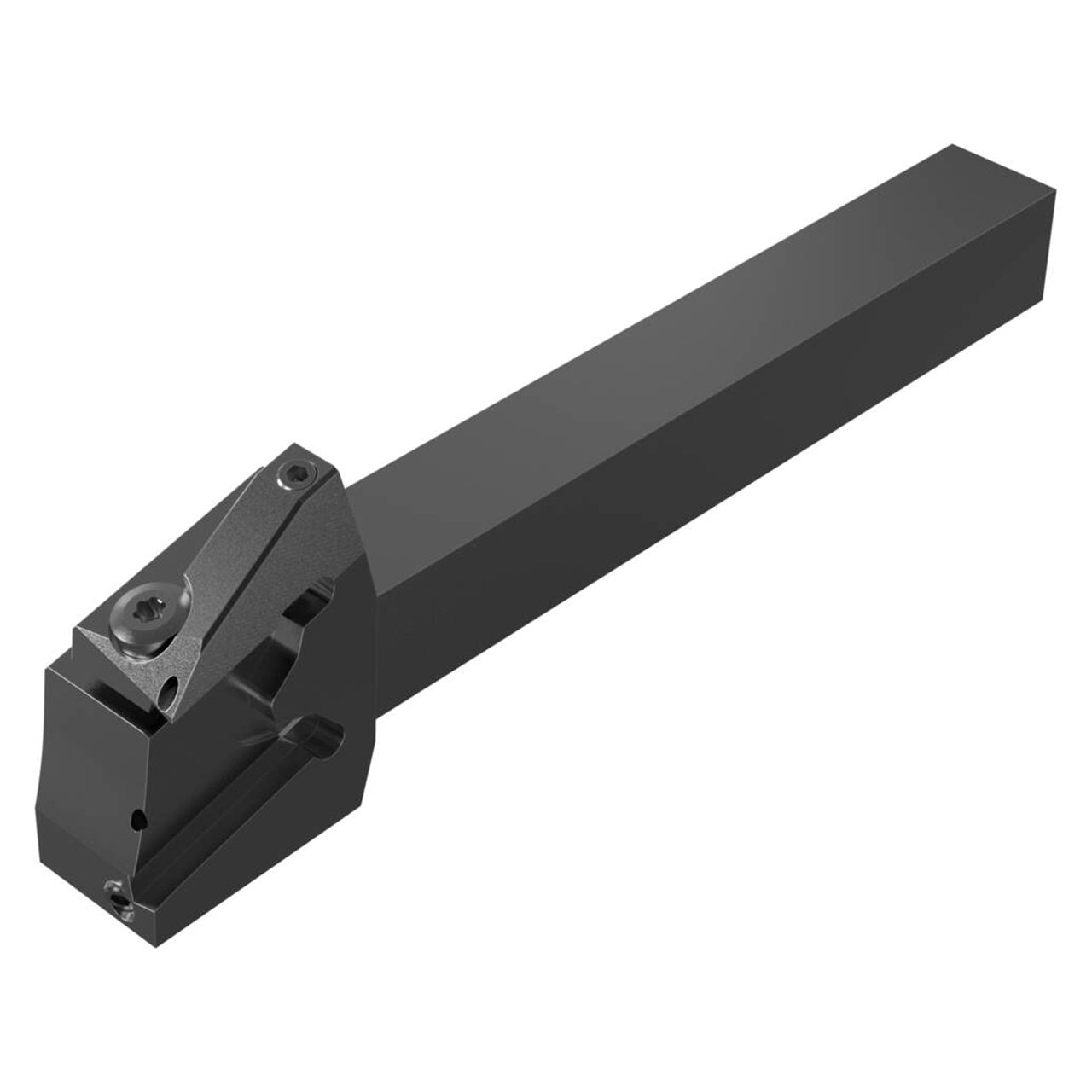

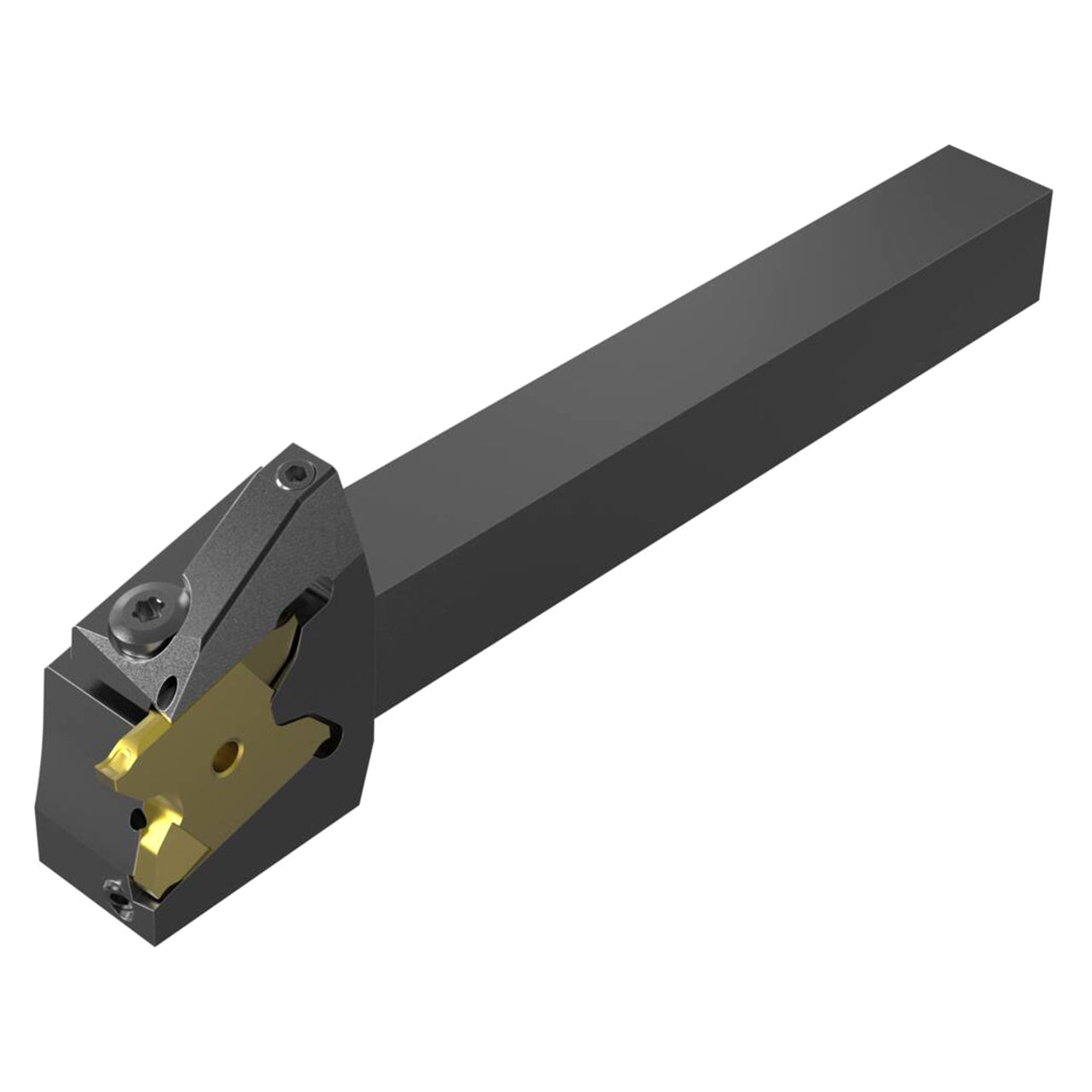

| Product Type | Indexable Grooving Toolholder |
