Product Specifications
| Manufacturer Part Number | 02822863 |
| Functional Length (Decimal Inch) | 5.000" |
| Functional Length (mm) | 127.00mm |
| Head Length (Decimal Inch) | 1.772" |
| Head Length (mm) | 45.00mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 1.250" |
| Functional Width (mm) | 31.75mm |
| Rake Orthogonal Angle (Degree) | -4.5 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | J |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 142 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Inclination Angle (Degree) | -13.5 Degree |
| Insert Shape Code | V |
| Shank Type | Square shank |

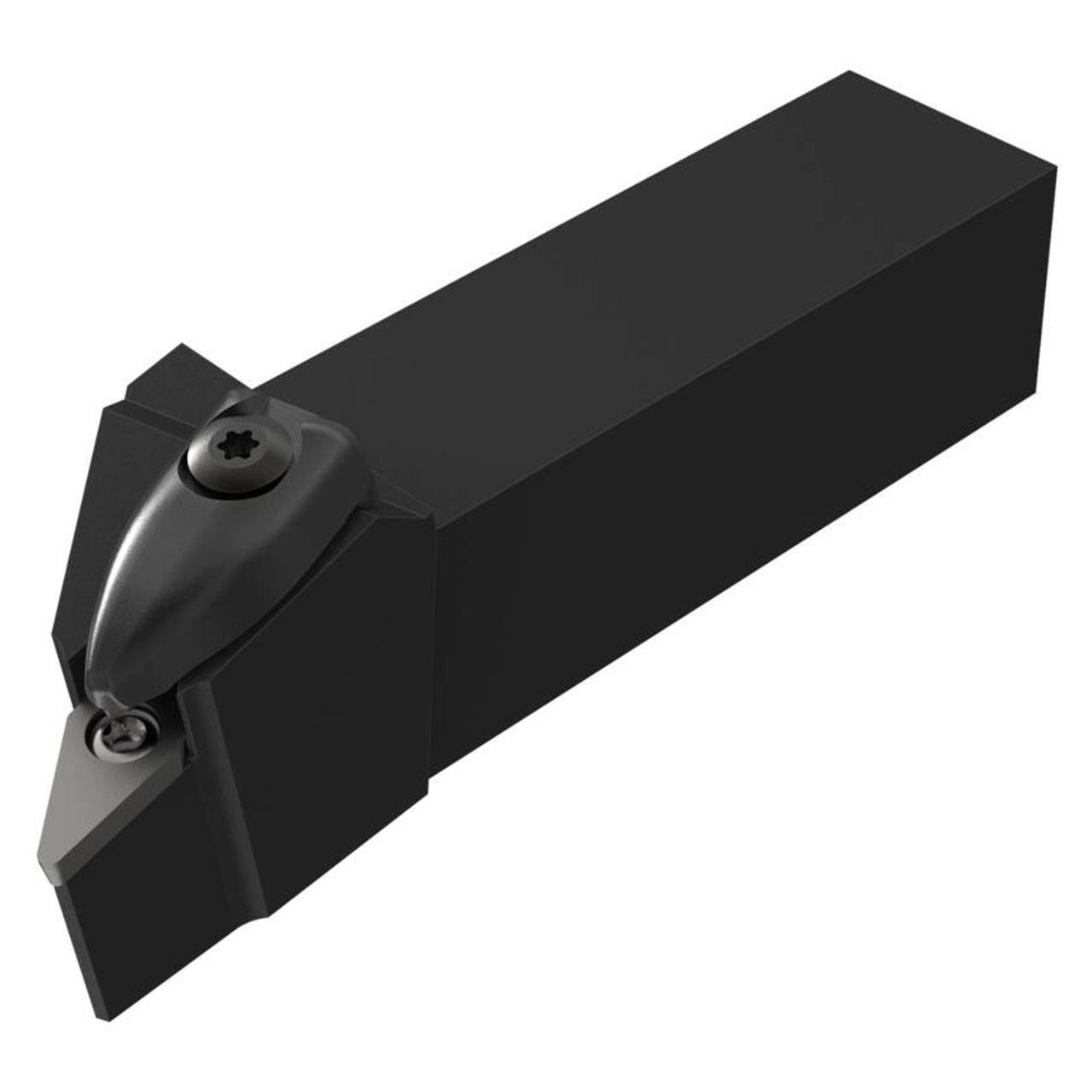

| Product Type | Indexable Turning Toolholder |
