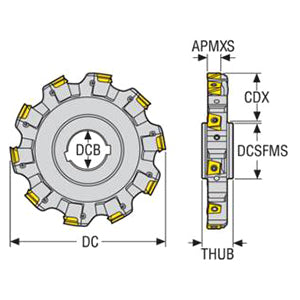

Product Specifications
| Manufacturer Part Number | 02814618 |
| Cutting Diameter (mm) | 315.00mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (mm) | 84.00mm |
| Functional Length (mm) | 5.50mm |
| Keyway Width (mm) | 14.00mm |
| Maximum Depth of Cut (mm) | 13.00mm |
| Maximum Cutting Depth (mm) | 113.30mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 3100 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ1407 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |
| Product Type | Indexable Slotting Cutter |
