Product Specifications
| Manufacturer Part Number | 02810145 |

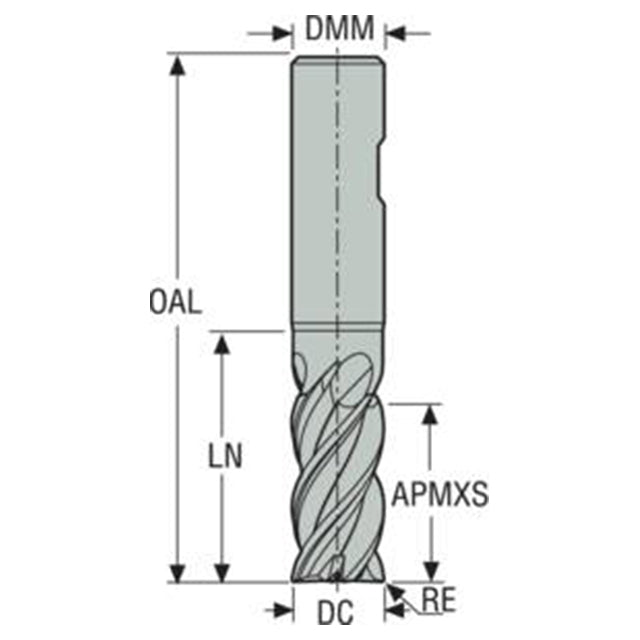

| Cutting Diameter (mm) | 16.00mm |
| Cutting Diameter 1 (mm) | 16.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Neck Diameter (mm) | 15.40mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 26.75mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 20.80mm |
| Overall Length (mm) | 100.00mm |
| Neck Length (mm) | 45.00mm |
| Neck Length 1 (mm) | 45.00mm |
| Cutting Edge Effective Length (mm) | 32.00mm |
| Insert Width (Decimal Inch) | 0.551" |
| Insert Width (mm) | 14.00mm |
| Maximum Depth of Cut (mm) | 32.00mm |
| Corner Radius (mm) | 2.50mm |
| Shank Type | Weldon |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | JHP770 |
| Cutting Geometry Type Technical | JHP770 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 42 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 6 Degree |
| Axial Rake Angle (Degree) | 42 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | Yes |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 5 |
| Material | Carbide |
| Coating | SIRON-A |

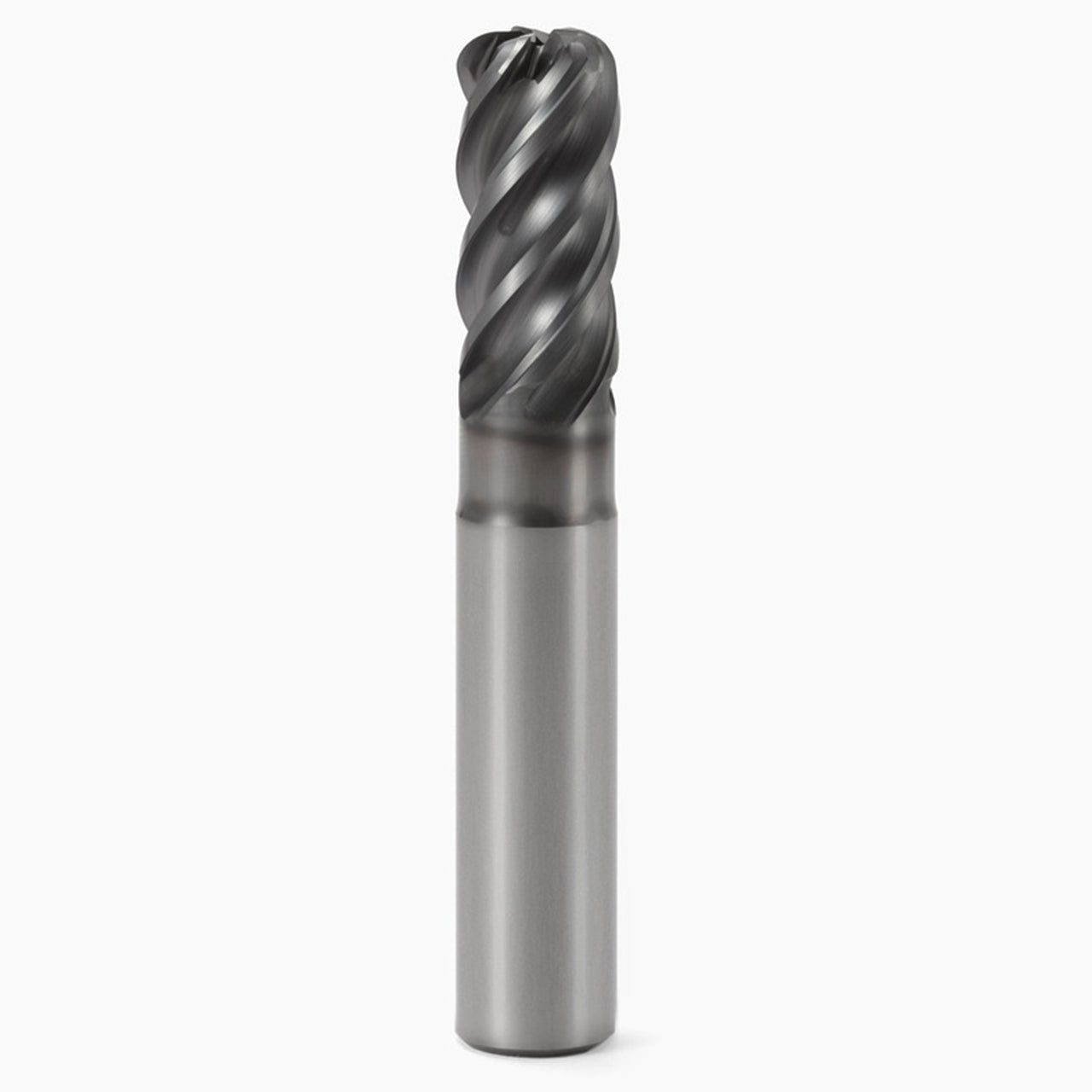

| Product Type | Corner Radius End Mill |
