Product Specifications
| Manufacturer Part Number | 02810007 |
| Cutting Diameter (Decimal Inch) | 1.250" |
| Cutting Diameter (mm) | 31.75mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.575" |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Protruding Length (Decimal Inch) | 1.575" |
| Protruding Length (mm) | 40.00mm |
| Shank Length (Decimal Inch) | 1.969" |
| Shank Length (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Maximum Depth of Cut (mm) | 3.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.118" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 40 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 40 Degree |
| Maximum Rotational Speed (rpm) | 20400 rpm |
| Insert Shape Code | O |
| Shank Type | SecoWeldon |

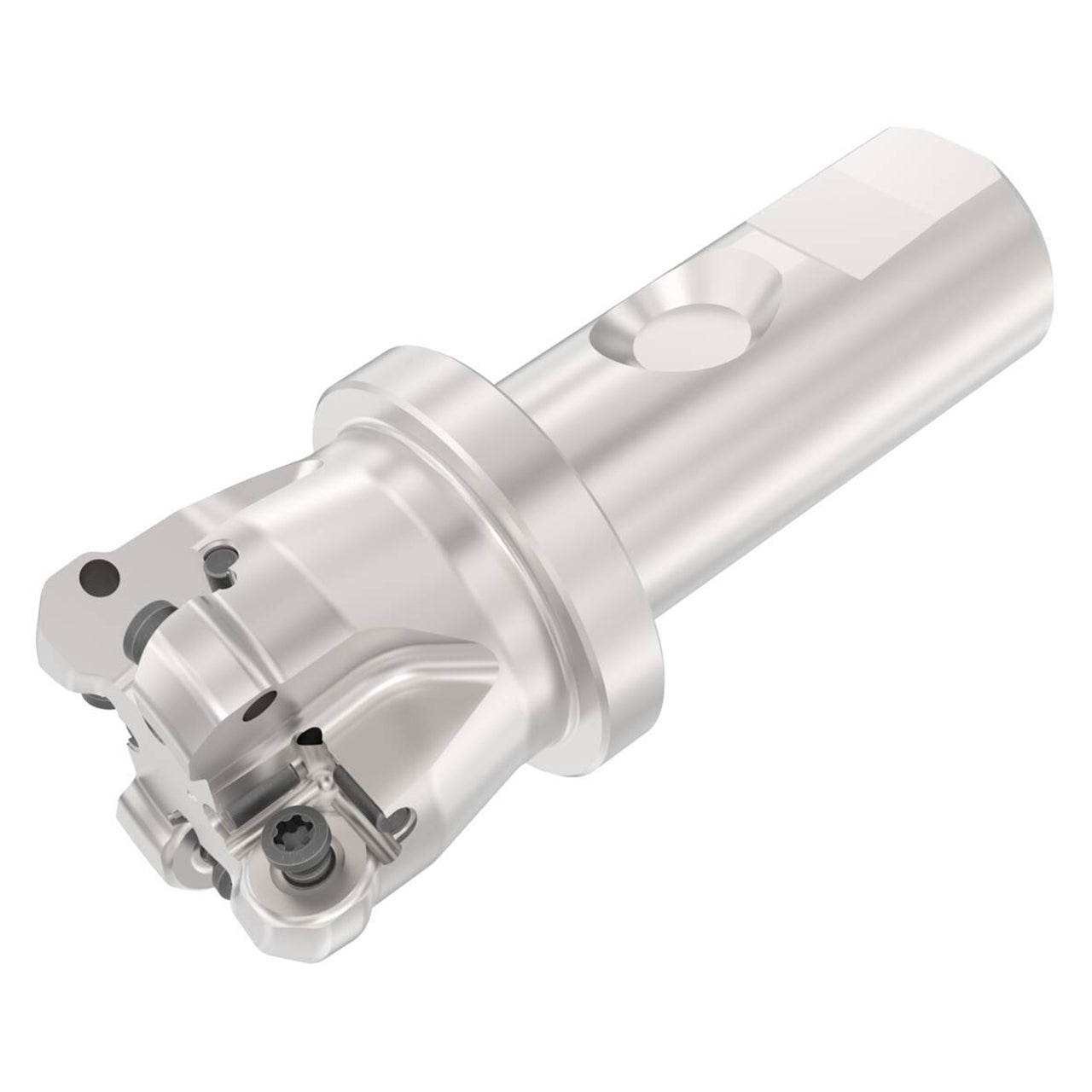

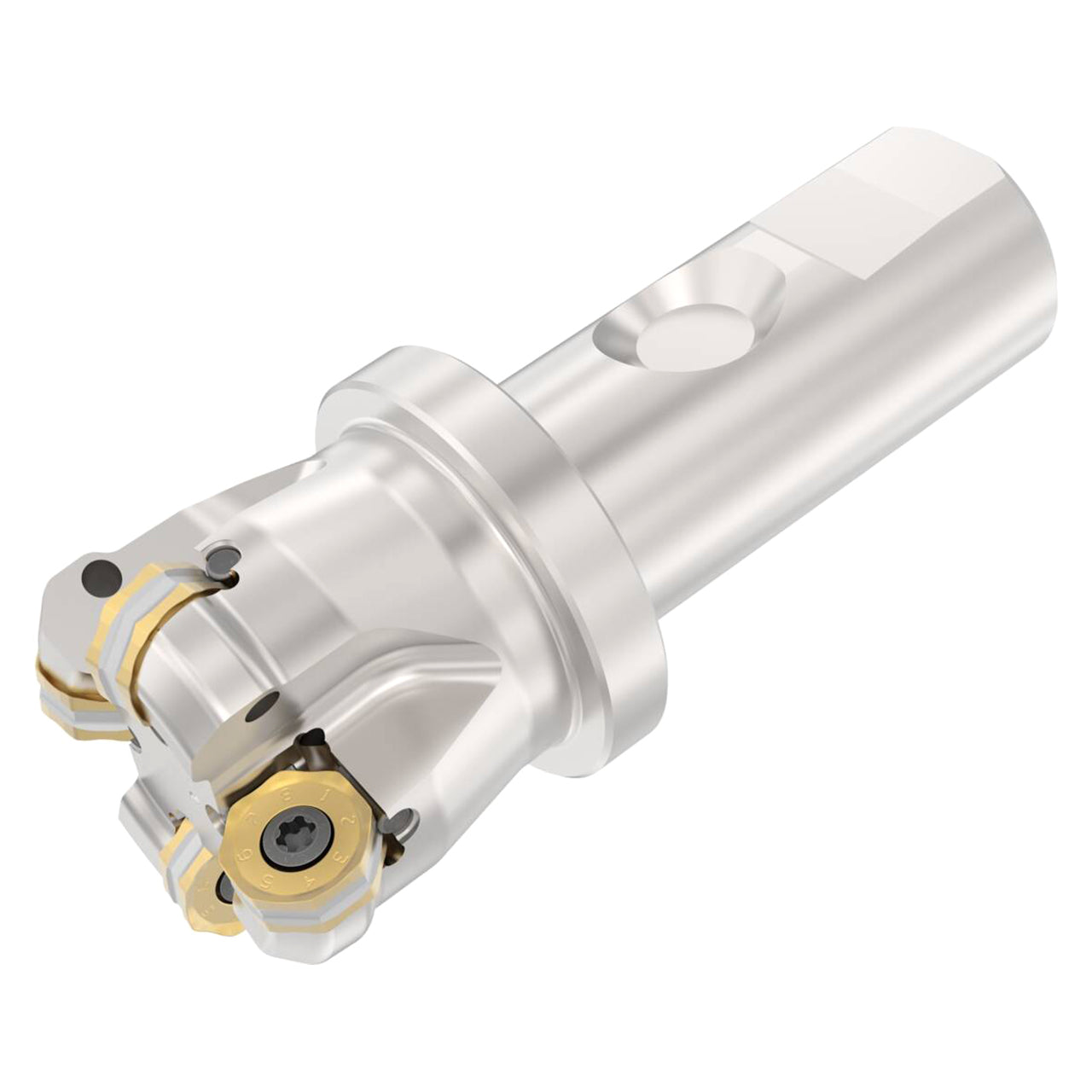

| Product Type | Indexable Chamfer & Angle Face Mill |
