Product Specifications
| Manufacturer Part Number | 02809887 |

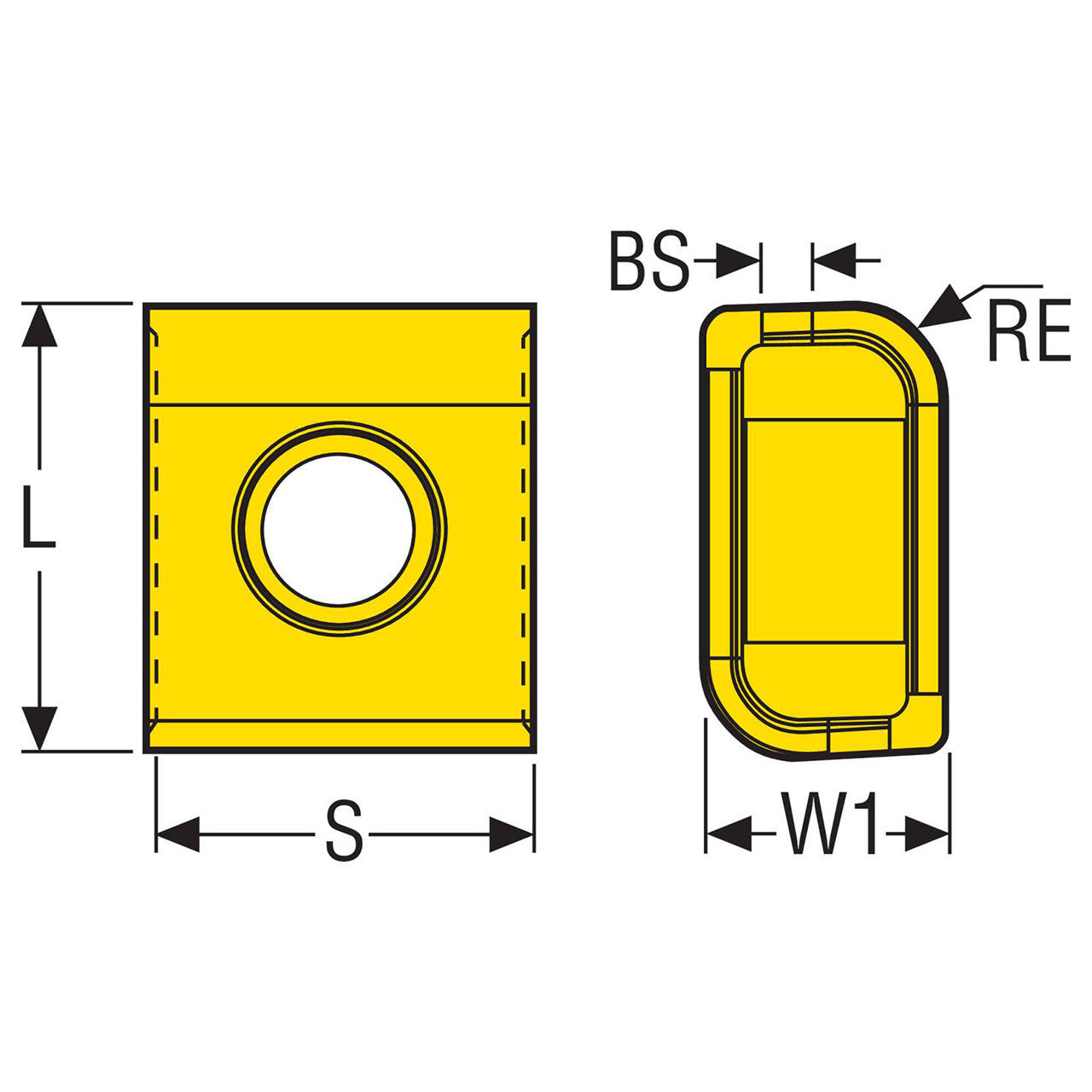

| Wiper Edge Length (Decimal Inch) | 0.110" |
| Wiper Edge Length (mm) | 2.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.516" |
| Cutting Edge Effective Length (mm) | 13.10mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.467" |
| Insert Thickness (mm) | 11.85mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M11 |
| Pocket Seat Code of The Cutter | LNHQ1407 |
| Insert Size And Shape | LNHQ1407 |
| Insert Rake Angle (Degree) | 16 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

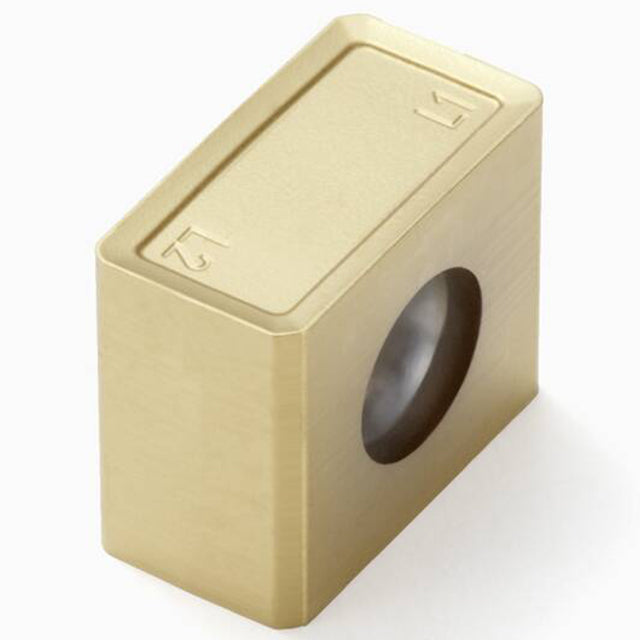

| Product Type | Disc Milling Insert |
