Product Specifications
| Manufacturer Part Number | 02809521 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.480" |
| Minimum Cutting Diameter Internal (mm) | 63.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.091" |
| Maximum Radial Cutting Depth (mm) | 2.30mm |
| Maximum Cutting Depth (Decimal Inch) | 0.108" |
| Maximum Cutting Depth (mm) | 2.74mm |
| Shank Type | GL-Connection |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Insert Size And Shape | CN1906 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13.54 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | -6.21 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 95 Degree |

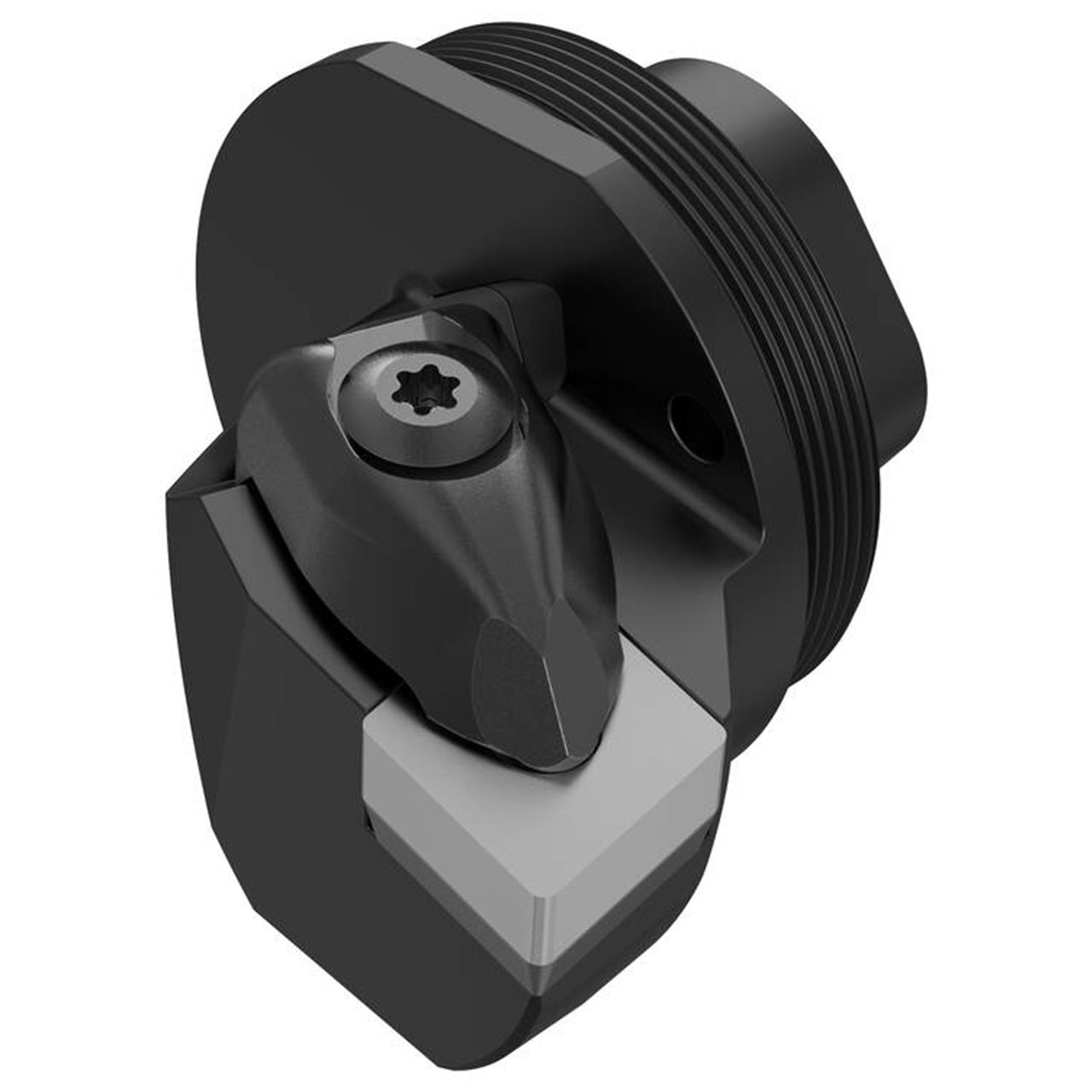

| Product Type | Modular Cutting Head |
