Product Specifications
| Manufacturer Part Number | 02807929 |
| Body Diameter (Decimal Inch) | 1.260" |
| Body Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Thread Diameter Size | G 1/4 |
| Body Length (Decimal Inch) | 9.000" |
| Body Length (mm) | 228.60mm |
| Functional Length (Decimal Inch) | 14.000" |
| Functional Length (mm) | 355.60mm |
| Shank Length (Decimal Inch) | 5.000" |
| Shank Length (mm) | 127.00mm |
| Overall Length (Decimal Inch) | 14.213" |
| Overall Length (mm) | 361.00mm |
| Shank Width (Decimal Inch) | 1.215" |
| Shank Width (mm) | 30.86mm |
| Coolant Entry Thread Size | G 1/4 |

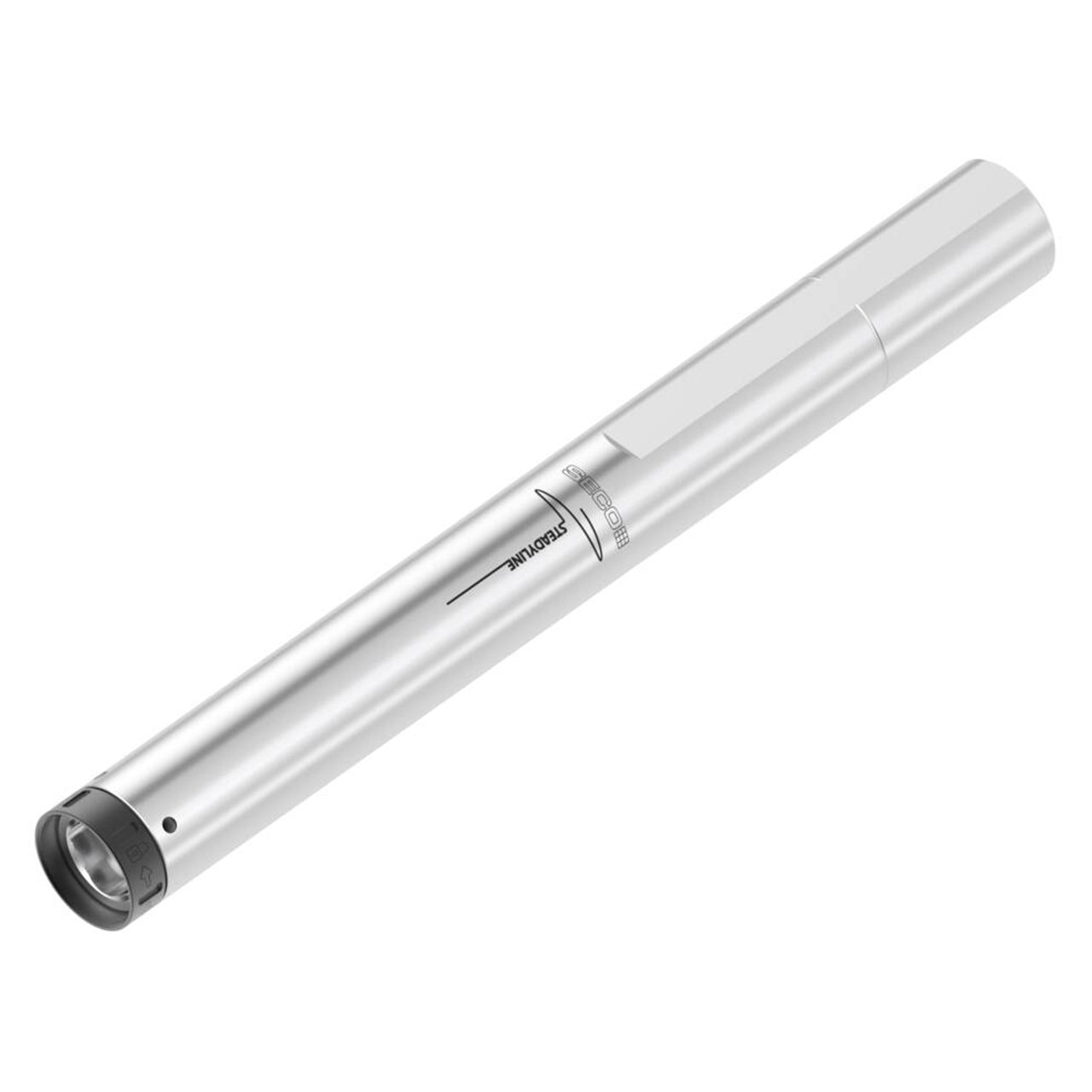

| Product Type | Collet Chuck Extension |
