Product Specifications
| Manufacturer Part Number | 02807861 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.969" |
| Connection Diameter Machine Side (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.969" |
| Shank Diameter (mm) | 50.00mm |
| Thread Diameter Size | G 1/4 |
| Body Length (Decimal Inch) | 10.551" |
| Body Length (mm) | 268.00mm |
| Functional Length (Decimal Inch) | 18.425" |
| Functional Length (mm) | 468.00mm |
| Shank Length (Decimal Inch) | 7.874" |
| Shank Length (mm) | 200.00mm |
| Overall Length (Decimal Inch) | 18.717" |
| Overall Length (mm) | 475.40mm |
| Shank Width (Decimal Inch) | 1.909" |
| Shank Width (mm) | 48.50mm |
| Coolant Entry Thread Size | G 1/4 |

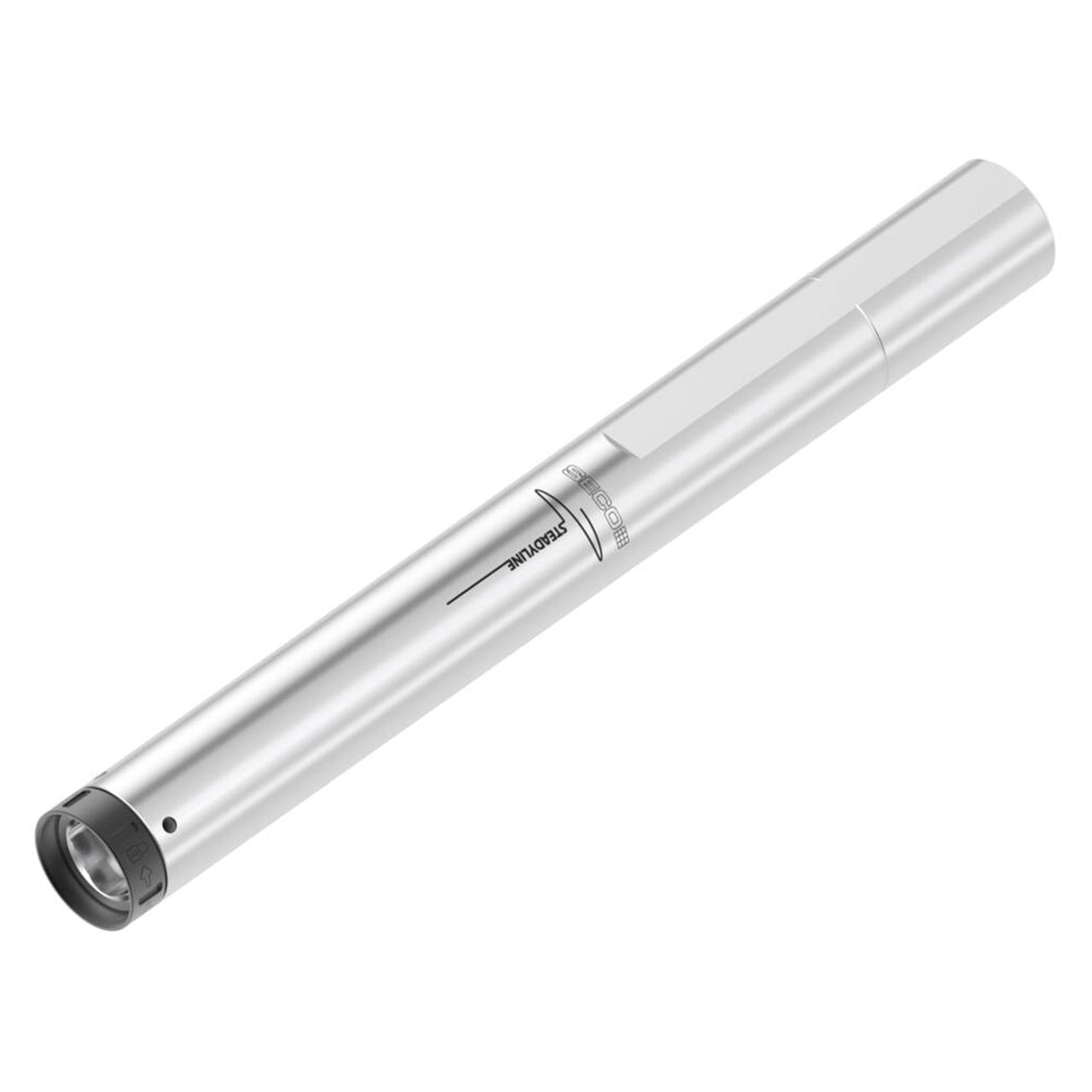

| Product Type | Collet Chuck Extension |
