Product Specifications
| Manufacturer Part Number | 02807841 |
| Body Diameter (Decimal Inch) | 1.260" |
| Body Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.969" |
| Connection Diameter Machine Side (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.969" |
| Shank Diameter (mm) | 50.00mm |
| Body Length (Decimal Inch) | 8.032" |
| Body Length (mm) | 204.00mm |
| Body Length 1 (Decimal Inch) | 8.032" |
| Body Length 1 (mm) | 204.00mm |
| Body Length 2 (Decimal Inch) | 7.874" |
| Body Length 2 (mm) | 200.00mm |
| Functional Length (Decimal Inch) | 8.819" |
| Functional Length (mm) | 224.00mm |
| Shank Length (Decimal Inch) | 1.181" |
| Shank Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 10.213" |
| Overall Length (mm) | 259.40mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 8000 rpm |

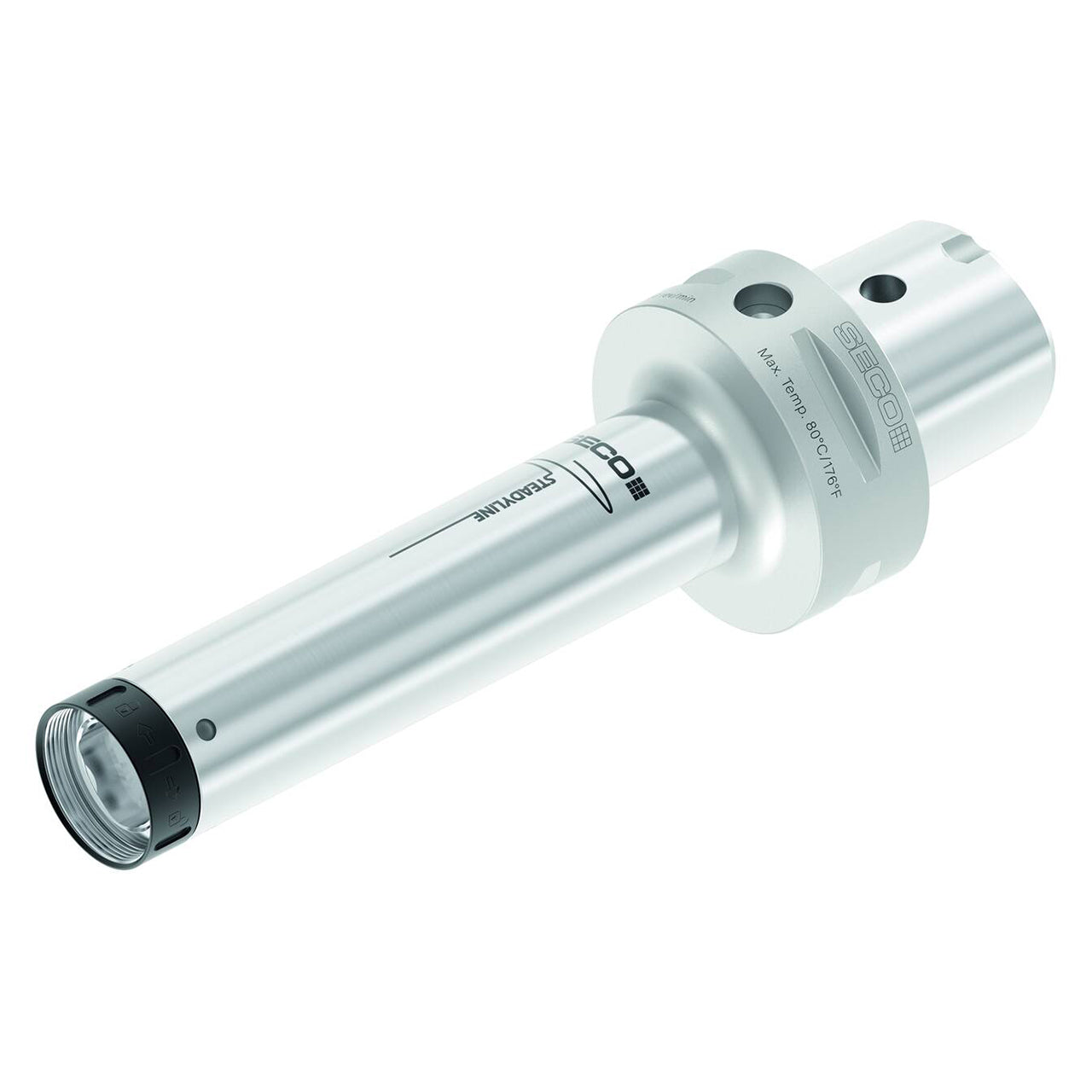

| Product Type | Collet Chuck Extension Adapter |
