Product Specifications
| Manufacturer Part Number | 02788631 |

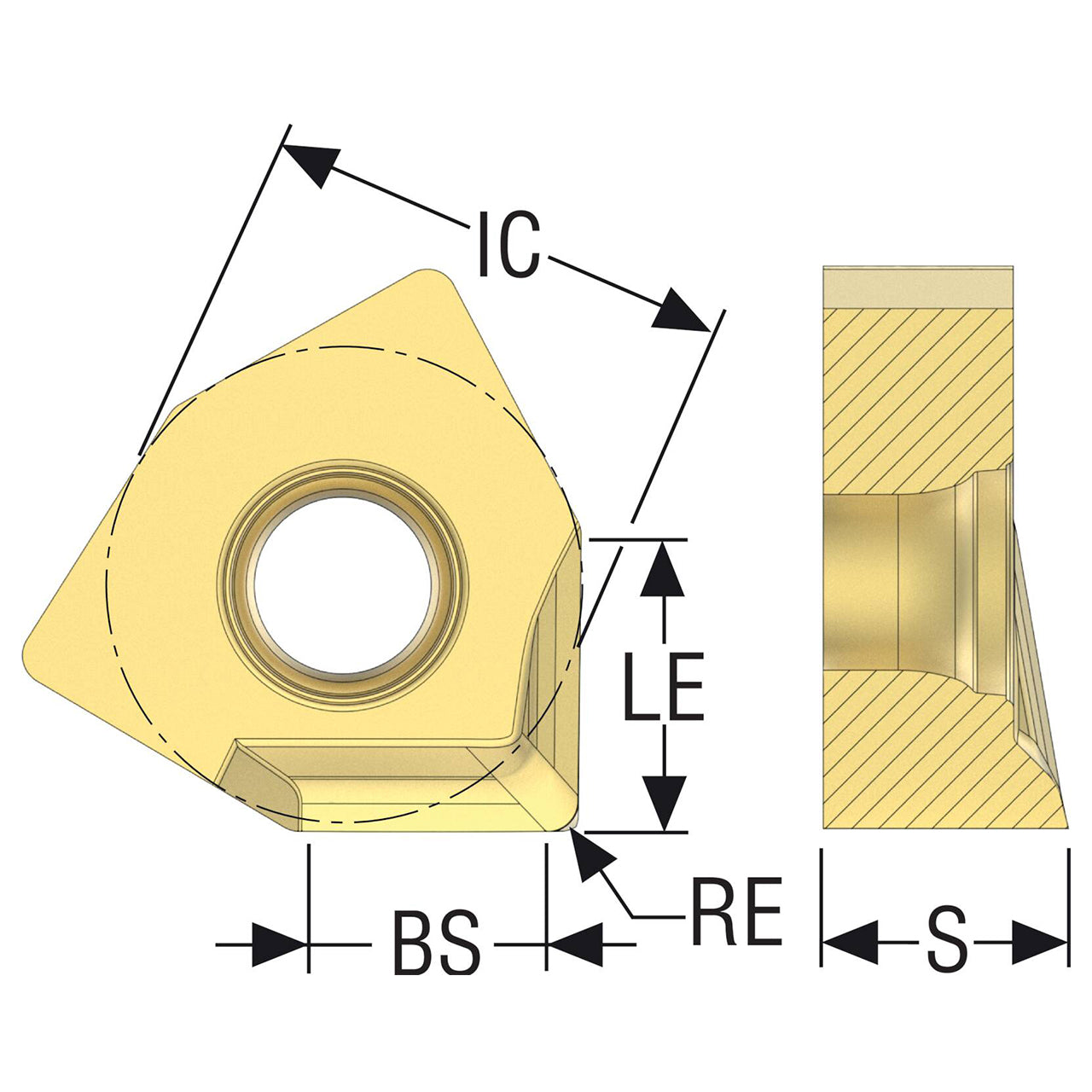

| Fixing Hole Diameter (Decimal Inch) | 0.181" |
| Fixing Hole Diameter (mm) | 4.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.491" |
| Inscribed Circle Diameter (mm) | 12.48mm |
| Wiper Edge Length (Decimal Inch) | 0.236" |
| Wiper Edge Length (mm) | 6.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.295" |
| Cutting Edge Effective Length (mm) | 7.50mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.254" |
| Insert Thickness (mm) | 6.45mm |
| Cutting Edge Count | 1 |
| Cutting Geometry Type Technical | M11 |
| Pocket Seat Code of The Cutter | XN.X0806 |
| Insert Size And Shape | XNEX080608ZZ |
| Insert Included Angle (Degree) | 88.28 Degree |
| Insert Rake Angle (Degree) | 19 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

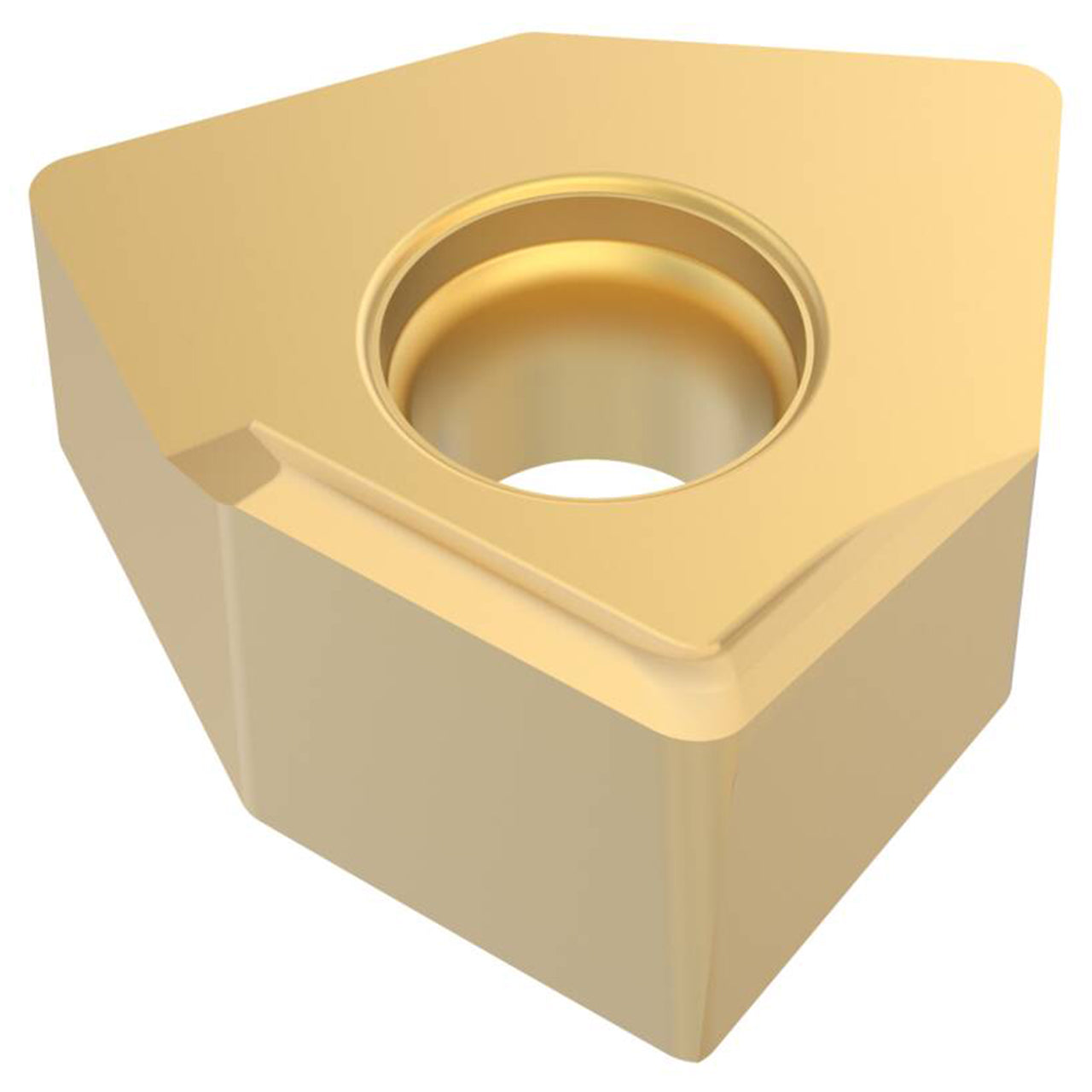

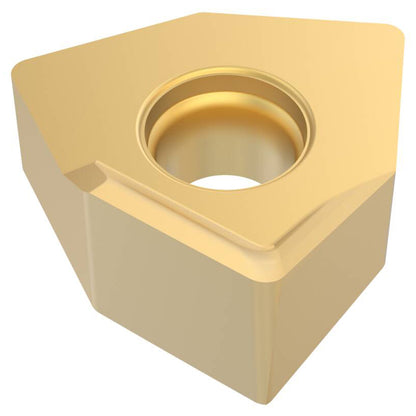

| Product Type | Square Shoulder Milling Insert |
