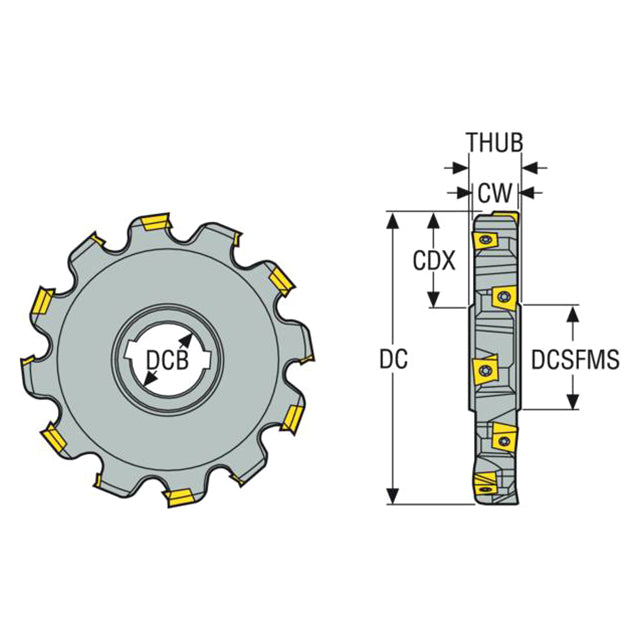

Product Specifications
| Manufacturer Part Number | 02788036 |
| Cutting Diameter (Decimal Inch) | 10.000" |
| Cutting Diameter (mm) | 254.00mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.000" |
| Contact Surface Diameter Machine Side (mm) | 76.20mm |
| Functional Length (Decimal Inch) | 1.000" |
| Functional Length (mm) | 25.40mm |
| Keyway Width (Decimal Inch) | 0.500" |
| Keyway Width (mm) | 12.70mm |
| Cutting Width (Decimal Inch) | 1.000" |
| Cutting Width (mm) | 25.40mm |
| Maximum Depth of Cut (Decimal Inch) | 1.000" |
| Maximum Depth of Cut (mm) | 25.40mm |
| Maximum Cutting Depth (Decimal Inch) | 3.429" |
| Maximum Cutting Depth (mm) | 87.10mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 3500 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ1407 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |
| Product Type | Indexable Slotting Cutter |
