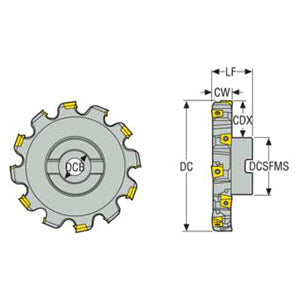

Product Specifications
| Manufacturer Part Number | 02788023 |
| Cutting Diameter (mm) | 125.00mm |
| Connection Bore Diameter (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 58.00mm |
| Functional Length (mm) | 50.00mm |
| Keyway Width (mm) | 14.40mm |
| Cutting Width (mm) | 25.00mm |
| Maximum Depth of Cut (mm) | 25.00mm |
| Depth of Key Way (mm) | 8.00mm |
| Maximum Cutting Depth (mm) | 33.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 4900 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XNHQ1407 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Product Type | Indexable Slotting Cutter |
