Product Specifications
| Manufacturer Part Number | 02768359 |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Protruding Length (mm) | 114.00mm |
| Shank Length (mm) | 141.00mm |
| Overall Length (mm) | 170.00mm |
| Maximum Depth of Cut (mm) | 4.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -18.5 Degree |
| Rake Orthogonal Angle (Degree) | -18.5 Degree |
| Maximum Rotational Speed (rpm) | 26300 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XNEX0403 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |

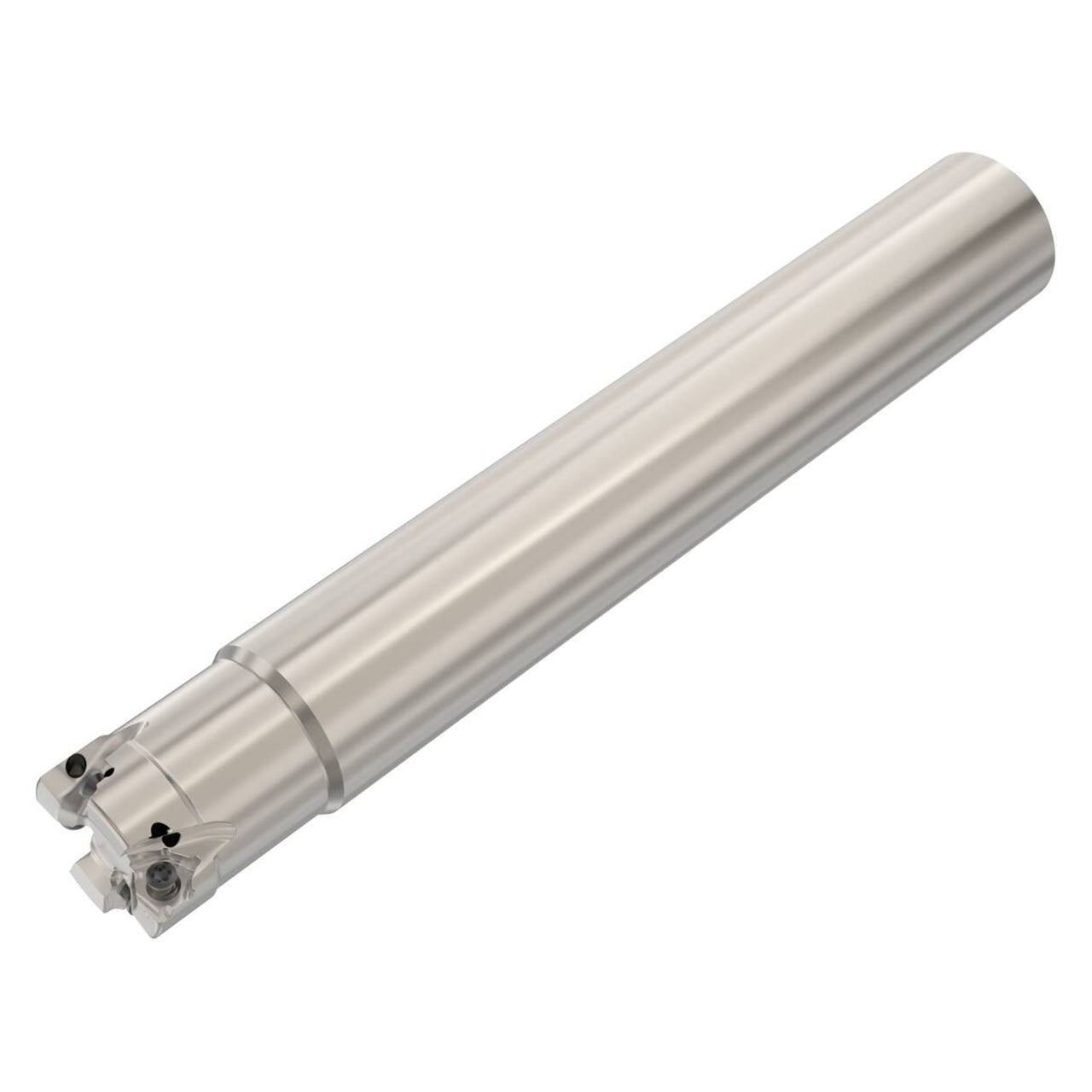

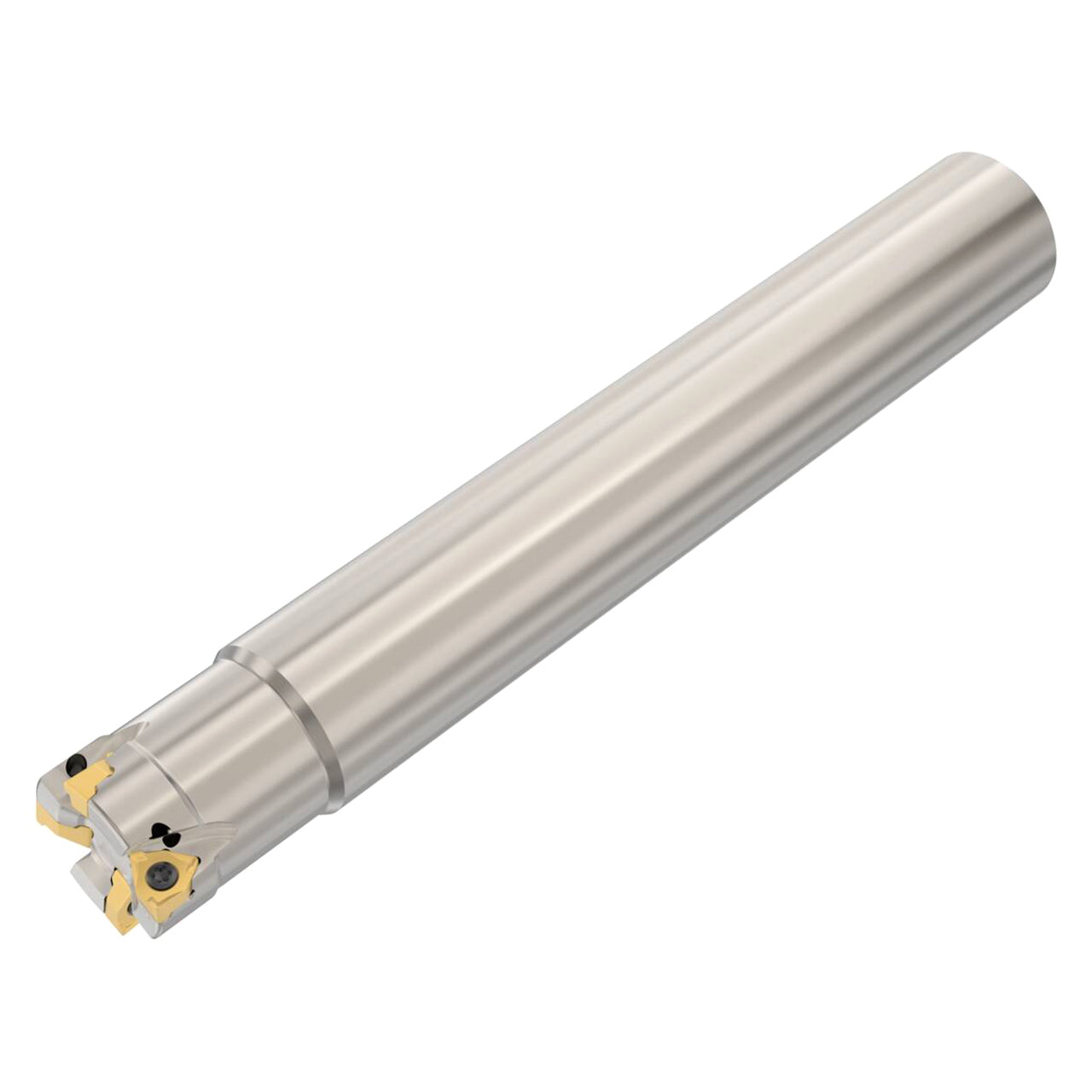

| Product Type | Indexable Square-Shoulder End Mill |
