Product Specifications
| Manufacturer Part Number | 02756055 |

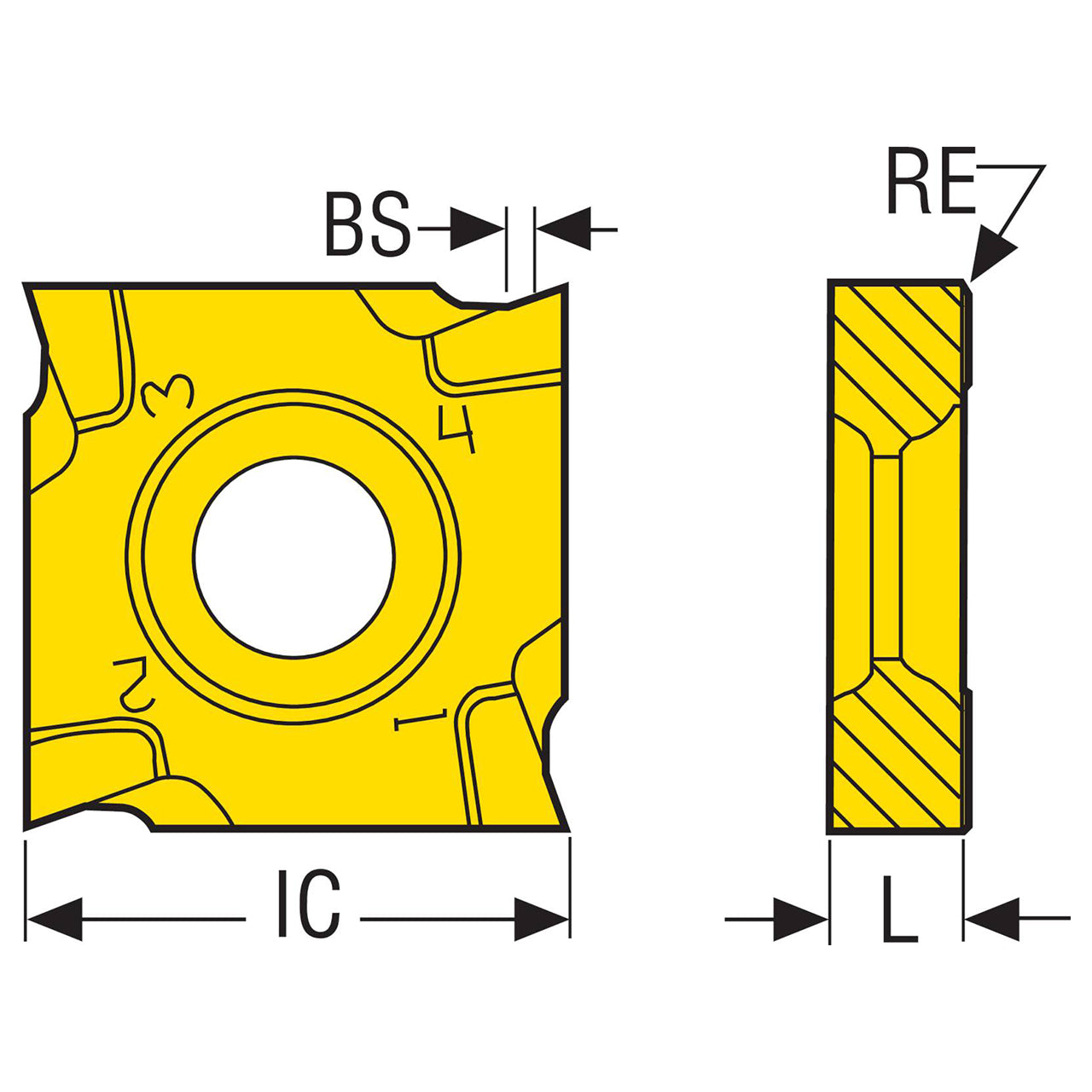

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Wiper Edge Length (Decimal Inch) | 0.030" |
| Wiper Edge Length (mm) | 0.75mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.205" |
| Cutting Edge Effective Length (mm) | 5.20mm |
| Corner Chamfer Width (mm) | 0.15mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M07 |
| Pocket Seat Code of The Cutter | 335.19-12045 |
| Insert Size And Shape | SNHQ1205 |
| Insert Rake Angle (Degree) | 20 Degree |
| Insert Hand | Left Hand |
| Material | Carbide |
| Product Type | Disc Milling Insert |
