Product Specifications

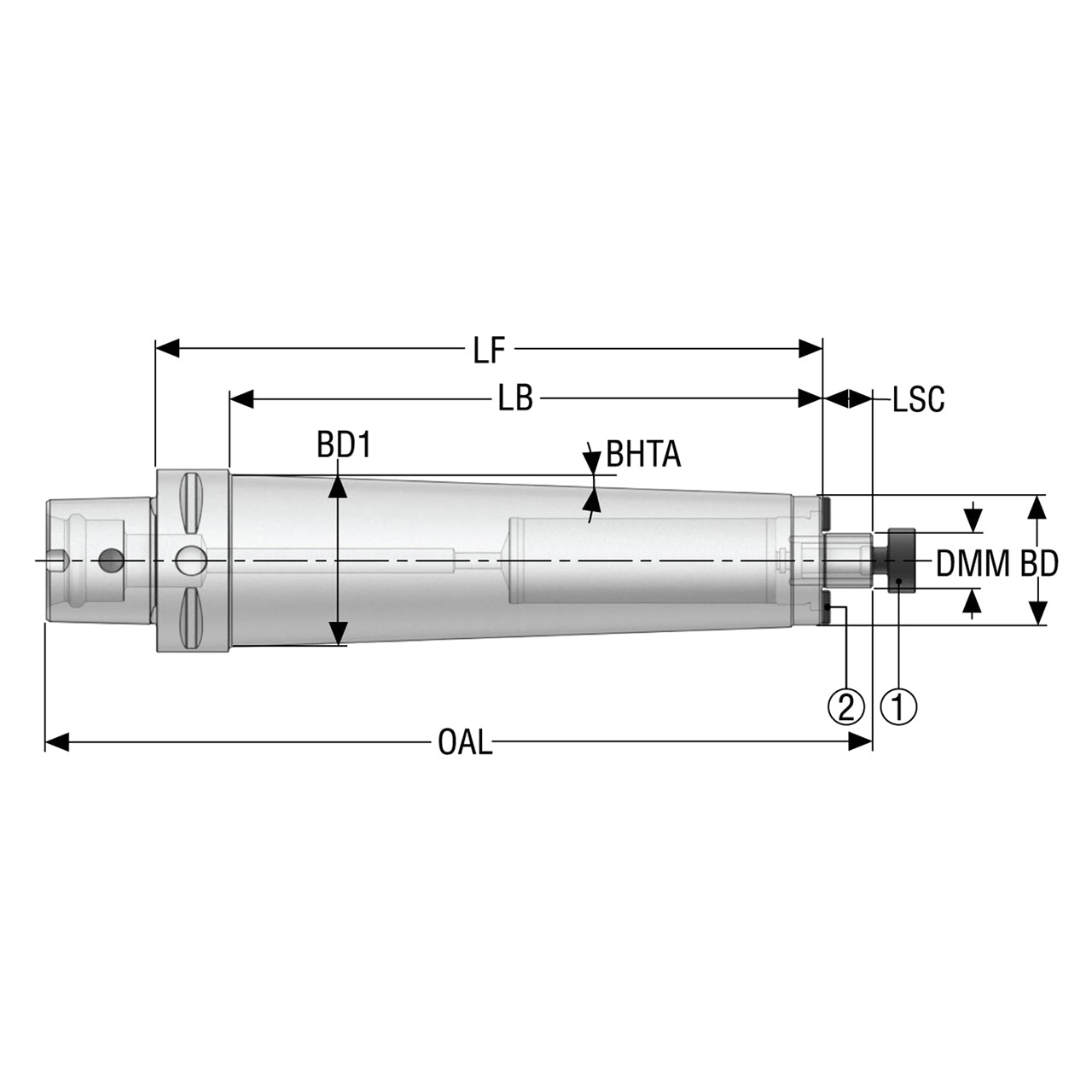

| Manufacturer Part Number | 02753494 |
| Body Diameter (Decimal Inch) | 2.250" |
| Body Diameter (mm) | 57.15mm |
| Body Diameter 1 (Decimal Inch) | 3.051" |
| Body Diameter 1 (mm) | 77.50mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 10.701" |
| Body Length (mm) | 271.80mm |
| Functional Length (Decimal Inch) | 12.000" |
| Functional Length (mm) | 304.80mm |
| Clamping Length (Decimal Inch) | 0.689" |
| Clamping Length (mm) | 17.50mm |
| Overall Length (Decimal Inch) | 14.579" |
| Overall Length (mm) | 370.30mm |
| Body Half Taper Angle Degree) | 2 Degree |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 6000 rpm |

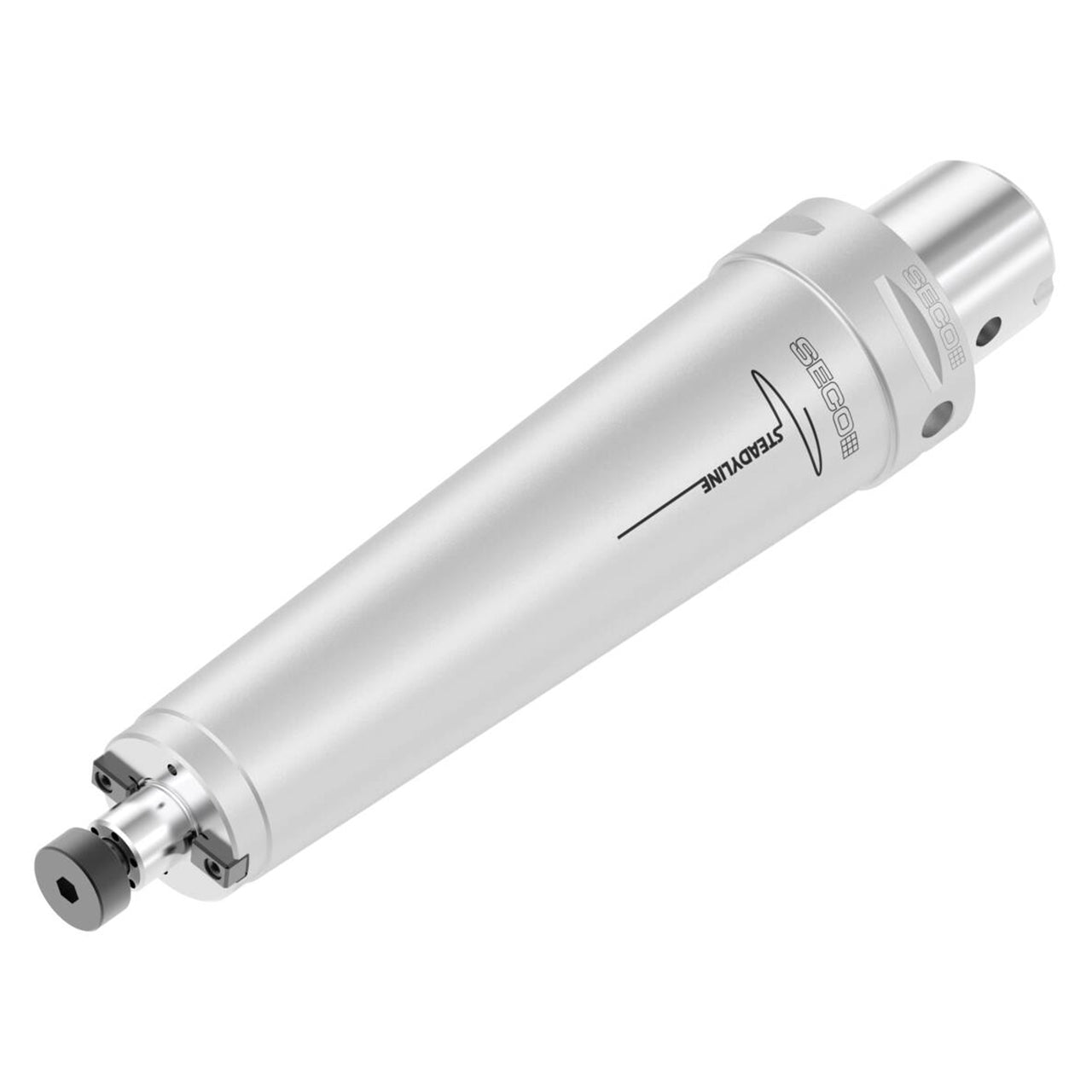

| Product Type | Shell Mill Holder |
