Product Specifications
| Manufacturer Part Number | 02753471 |
| Body Diameter (Decimal Inch) | 3.504" |
| Body Diameter (mm) | 89.00mm |
| Body Diameter 1 (Decimal Inch) | 3.504" |
| Body Diameter 1 (mm) | 89.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.575" |
| Connection Diameter Workpiece Side (mm) | 40.00mm |
| Shank Diameter (Decimal Inch) | 1.575" |
| Shank Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 13.028" |
| Body Length (mm) | 330.90mm |
| Functional Length (Decimal Inch) | 13.78" |
| Functional Length (mm) | 350.00mm |
| Clamping Length (Decimal Inch) | 1.063" |
| Clamping Length (mm) | 27.00mm |
| Overall Length (Decimal Inch) | 18.848" |
| Overall Length (mm) | 478.75mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 3000 rpm |

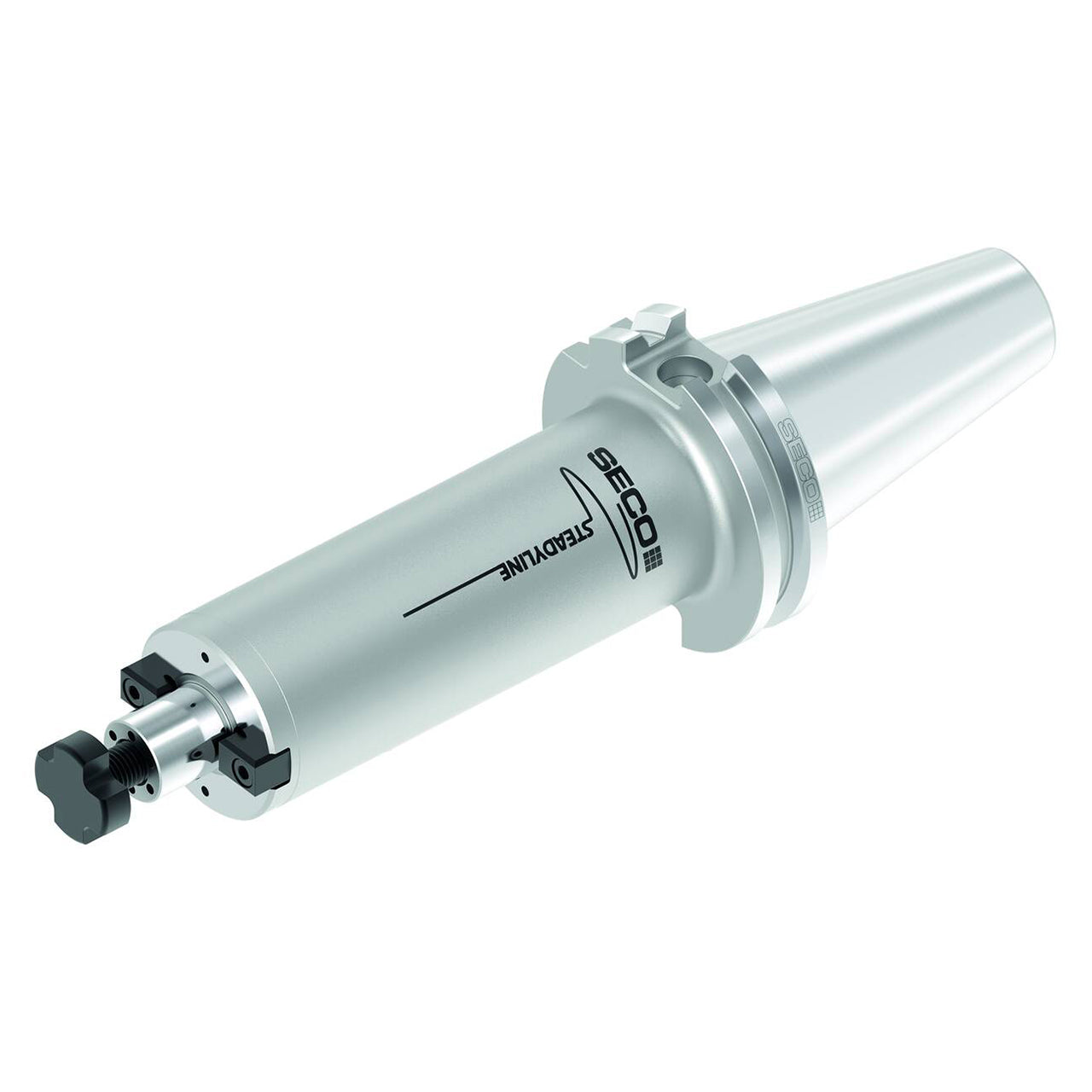

| Product Type | Shell Mill Holder |
