Product Specifications
| Manufacturer Part Number | 02753439 |
| Body Diameter 1 (Decimal Inch) | 1.732" |
| Body Diameter 1 (mm) | 44.00mm |
| Body Diameter 2 (Decimal Inch) | 2.087" |
| Body Diameter 2 (mm) | 53.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Minimum Connection Bore Diameter (mm) | 25.40mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Connection Bore Diameter (mm) | 25.40mm |
| Thread Diameter Size | M16x1 |
| Body Length (Decimal Inch) | 2.559" |
| Body Length (mm) | 65.00mm |
| Functional Length (Decimal Inch) | 1.693" |
| Functional Length (mm) | 43.00mm |
| Minimum Functional Length (Decimal Inch) | 1.299" |
| Protruding Length (Decimal Inch) | 3.543" |
| Protruding Length (mm) | 90.00mm |
| Clamping Length (Decimal Inch) | 1.850" |
| Clamping Length (mm) | 47.00mm |
| Overall Length (Decimal Inch) | 5.039" |
| Overall Length (mm) | 128.00mm |
| Connection Bore Depth (mm) | 58.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.925" |
| Radial Location (mm) | 23.50mm |

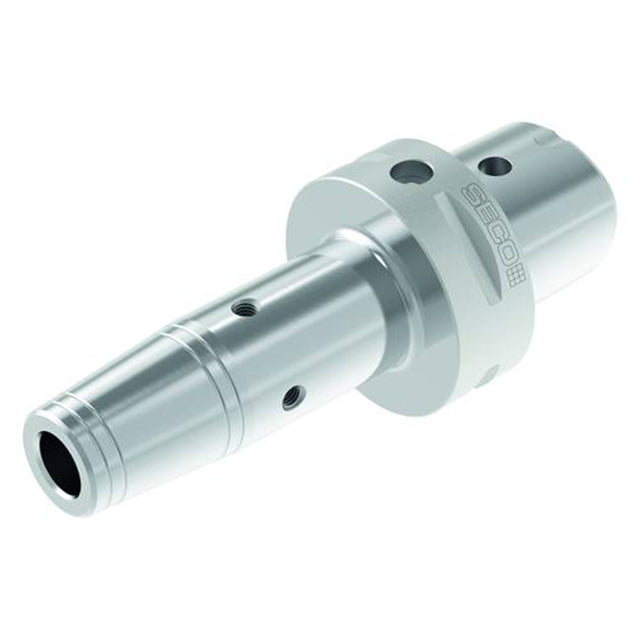

| Product Type | Shrink-Fit Tool Holder |
