Product Specifications
| Manufacturer Part Number | 02752973 |
| Body Diameter 1 (Decimal Inch) | 1.063" |
| Body Diameter 1 (mm) | 27.00mm |
| Body Diameter 2 (Decimal Inch) | 1.339" |
| Body Diameter 2 (mm) | 34.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.630" |
| Connection Bore Diameter (mm) | 16.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Minimum Connection Bore Diameter (mm) | 16.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 1.772" |
| Body Length (mm) | 45.00mm |
| Functional Length (Decimal Inch) | 1.024" |
| Functional Length (mm) | 26.00mm |
| Minimum Functional Length (Decimal Inch) | 0.807" |
| Protruding Length (Decimal Inch) | 2.559" |
| Protruding Length (mm) | 65.00mm |
| Clamping Length (Decimal Inch) | 1.535" |
| Clamping Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 3.347" |
| Overall Length (mm) | 85.00mm |
| Connection Bore Depth (mm) | 46.00mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Radial Location (Decimal Inch) | 0.551" |
| Radial Location (mm) | 14.00mm |

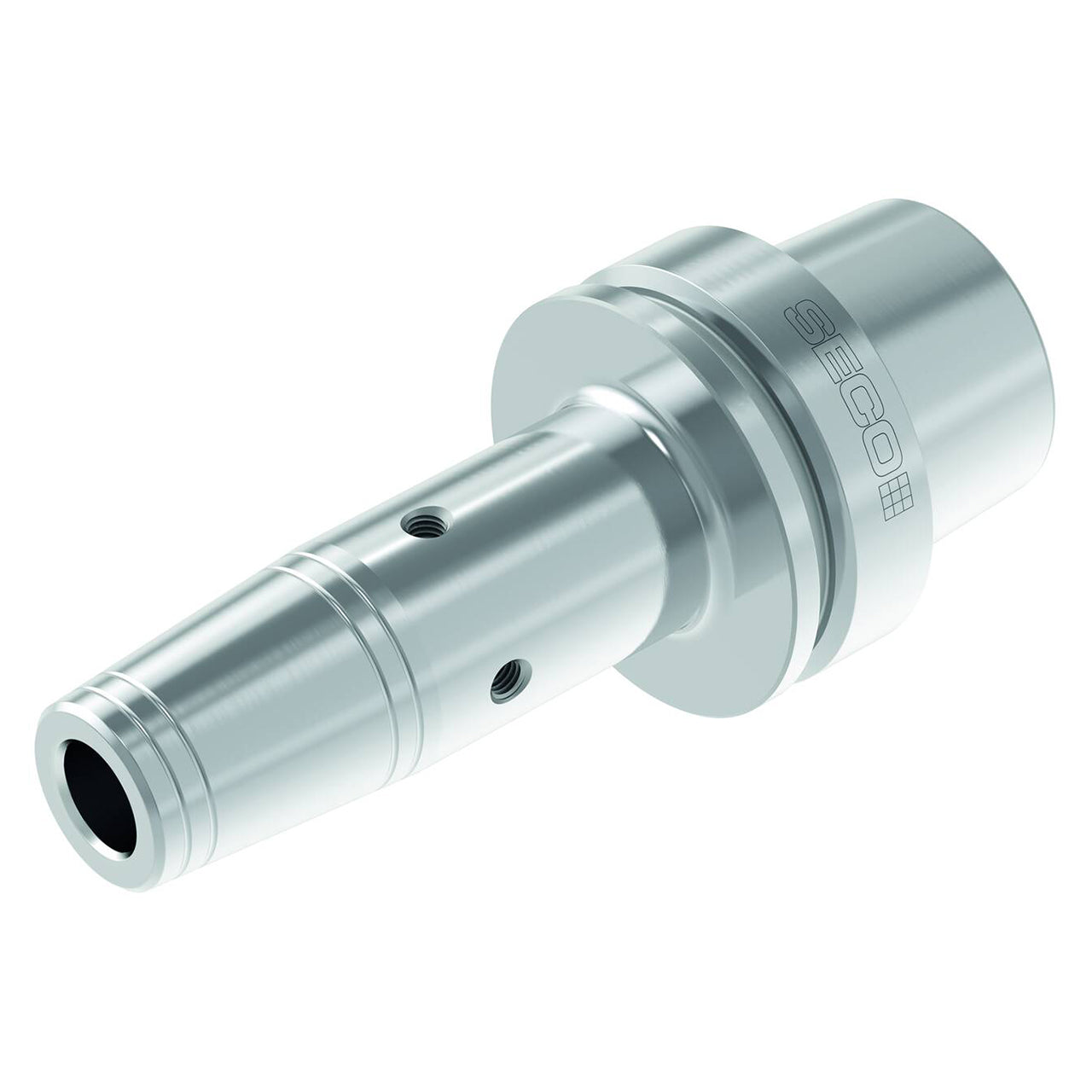

| Product Type | Shrink-Fit Tool Holder |
