Product Specifications
| Manufacturer Part Number | 02752956 |
| Body Diameter 1 (Decimal Inch) | 0.591" |
| Body Diameter 1 (mm) | 15.00mm |
| Body Diameter 2 (Decimal Inch) | 0.787" |
| Body Diameter 2 (mm) | 20.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.118" |
| Connection Bore Diameter (mm) | 3.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Minimum Connection Bore Diameter (mm) | 3.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Maximum Connection Bore Diameter (mm) | 3.00mm |
| Body Length (Decimal Inch) | 1.181" |
| Body Length (mm) | 30.00mm |
| Functional Length (Decimal Inch) | 1.457" |
| Functional Length (mm) | 37.00mm |
| Minimum Functional Length (Decimal Inch) | 0.807" |
| Protruding Length (Decimal Inch) | 1.969" |
| Protruding Length (mm) | 50.00mm |
| Clamping Length (Decimal Inch) | 0.512" |
| Clamping Length (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 2.756" |
| Overall Length (mm) | 70.00mm |
| Connection Bore Depth (mm) | 31.00mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Radial Location (Decimal Inch) | 0.413" |
| Radial Location (mm) | 10.50mm |

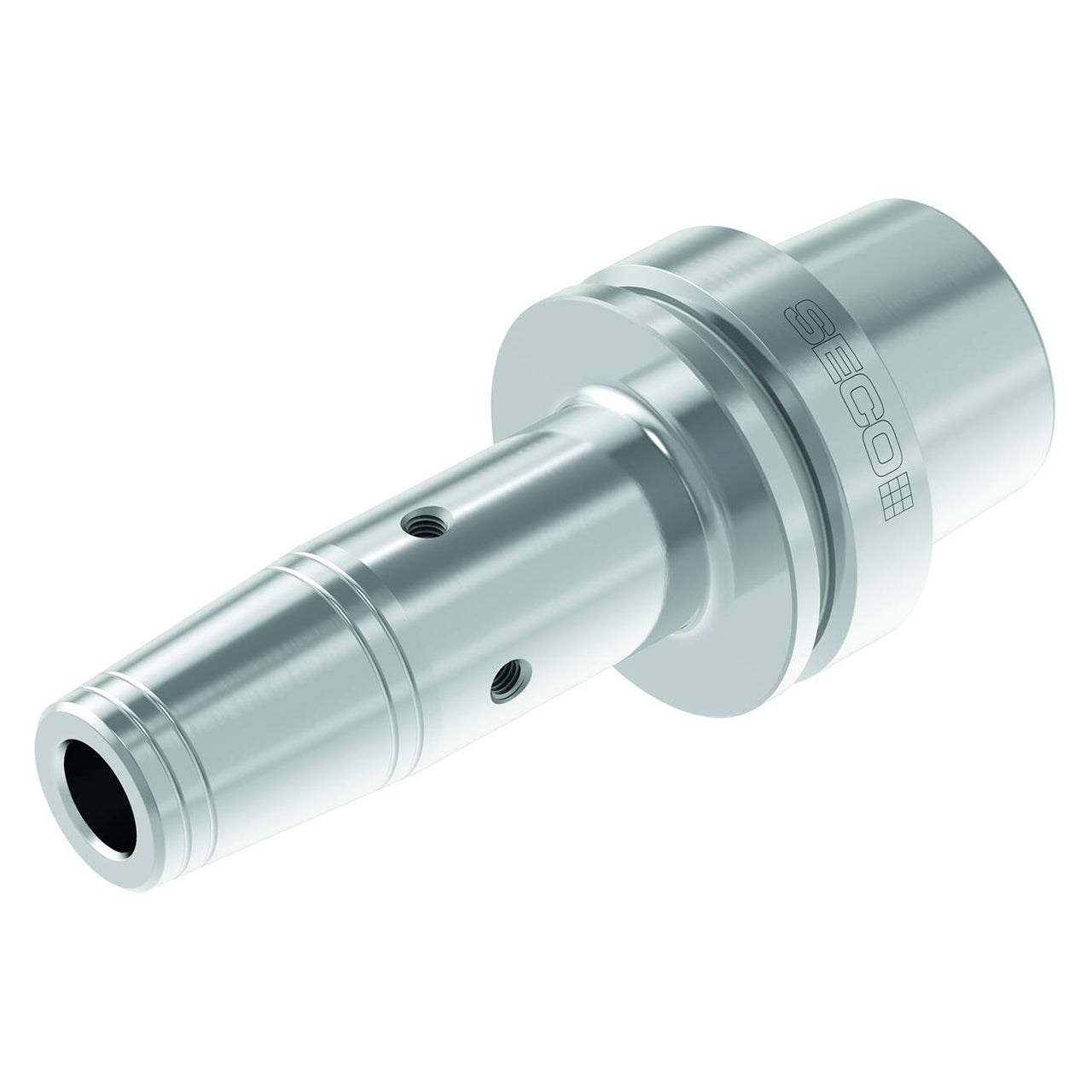

| Product Type | Shrink-Fit Tool Holder |
