Product Specifications
| Manufacturer Part Number | 02752405 |
| Body Diameter (Decimal Inch) | 2.756" |
| Body Diameter (mm) | 70.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.575" |
| Connection Diameter Workpiece Side (mm) | 40.00mm |
| Shank Diameter (Decimal Inch) | 1.575" |
| Shank Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 0.079" |
| Body Length (mm) | 2.00mm |
| Functional Length (Decimal Inch) | 1.378" |
| Functional Length (mm) | 35.00mm |
| Clamping Length (Decimal Inch) | 1.063" |
| Clamping Length (mm) | 27.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Data Chip Provision | 1 |

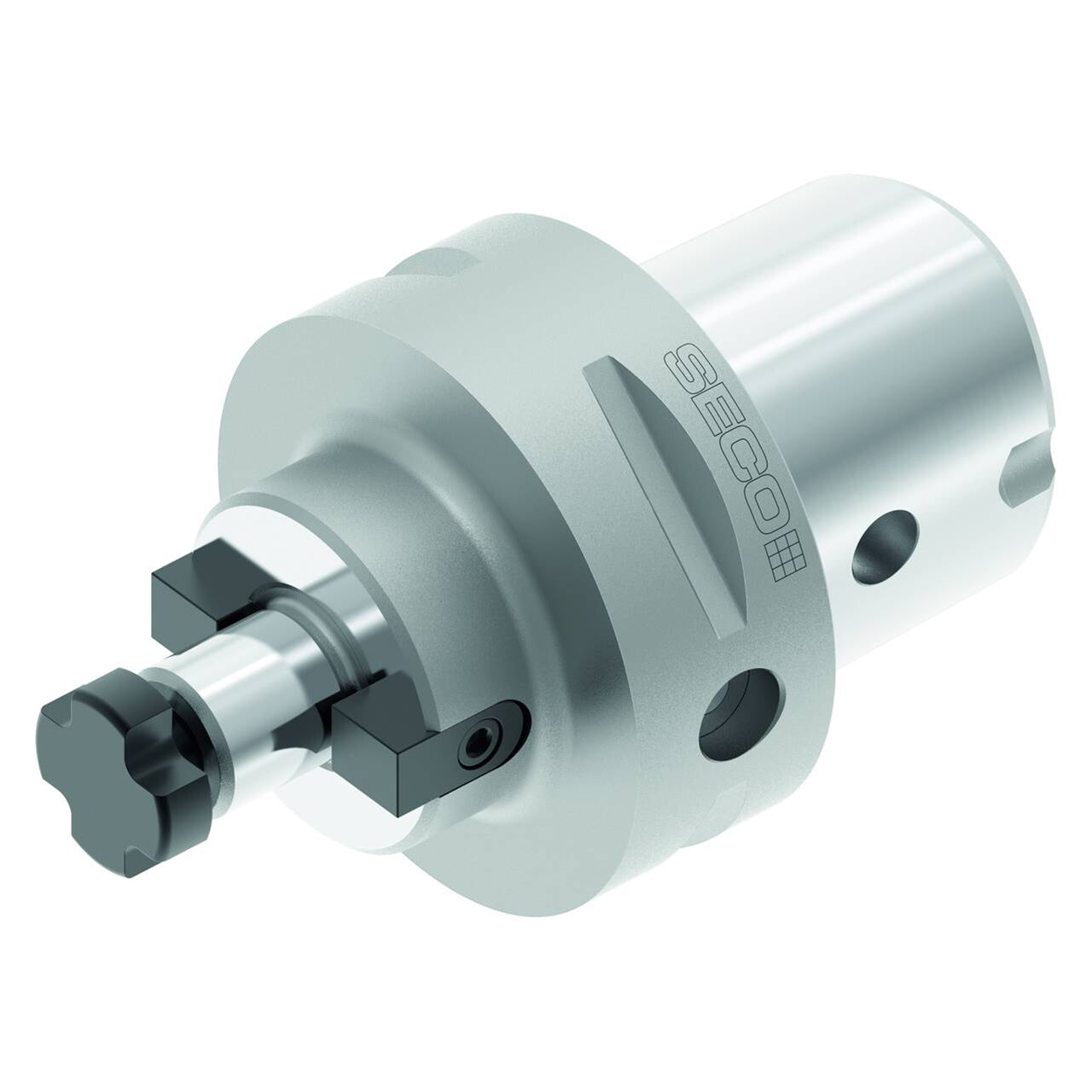

| Product Type | Shell Mill Holder |
