Product Specifications
| Manufacturer Part Number | 02751641 |
| Functional Length (mm) | 170.00mm |
| Shank Width (mm) | 32.00mm |
| Maximum Cutting Depth (mm) | 33.50mm |
| Height of Tool Holder Shank (mm) | 32.00mm |
| Functional Width (mm) | 26.00mm |
| Cutting Direction | Neutral |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | D |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Inclination Angle (Degree) | -8 Degree |
| Insert Shape Code | R |
| Shank Type | Square shank |

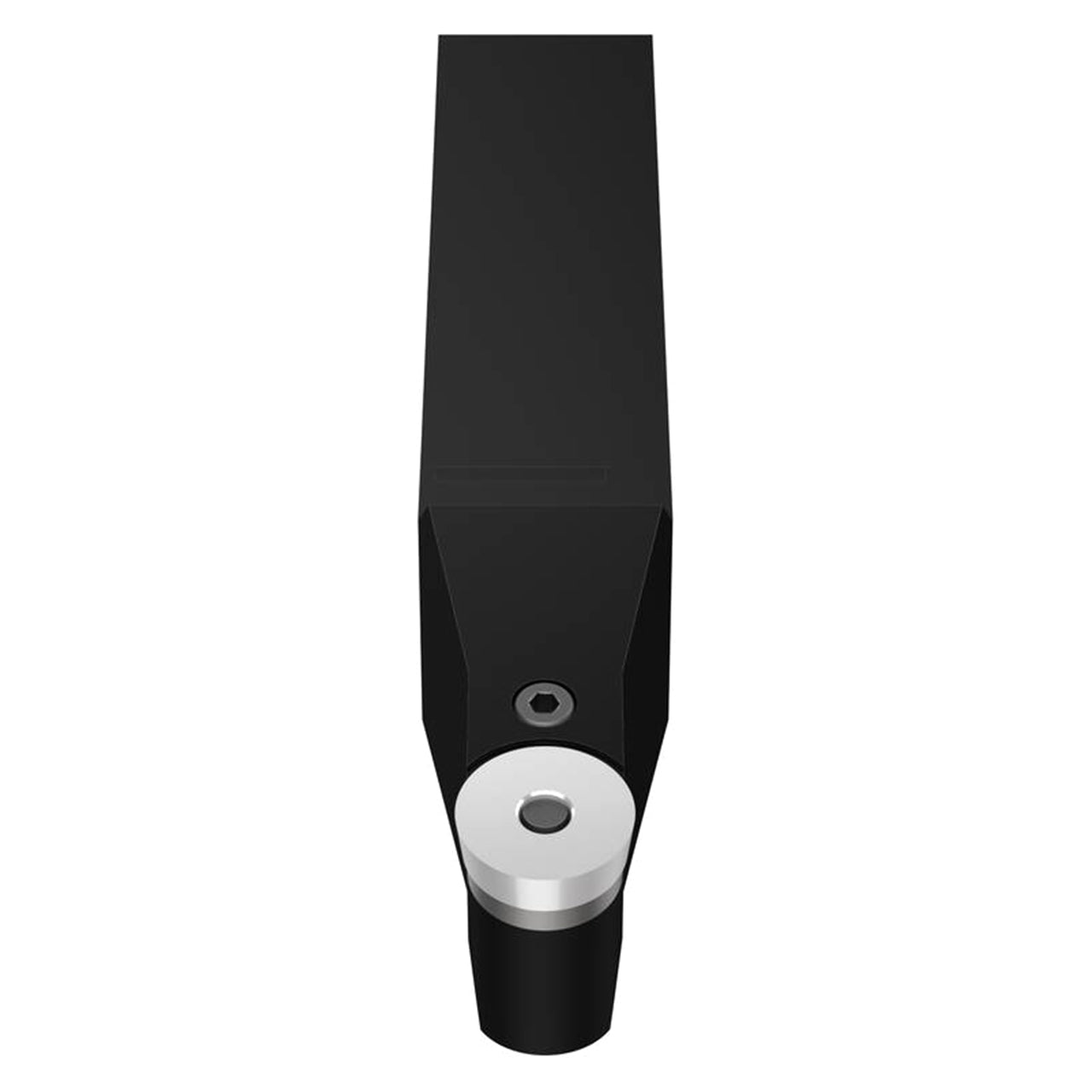

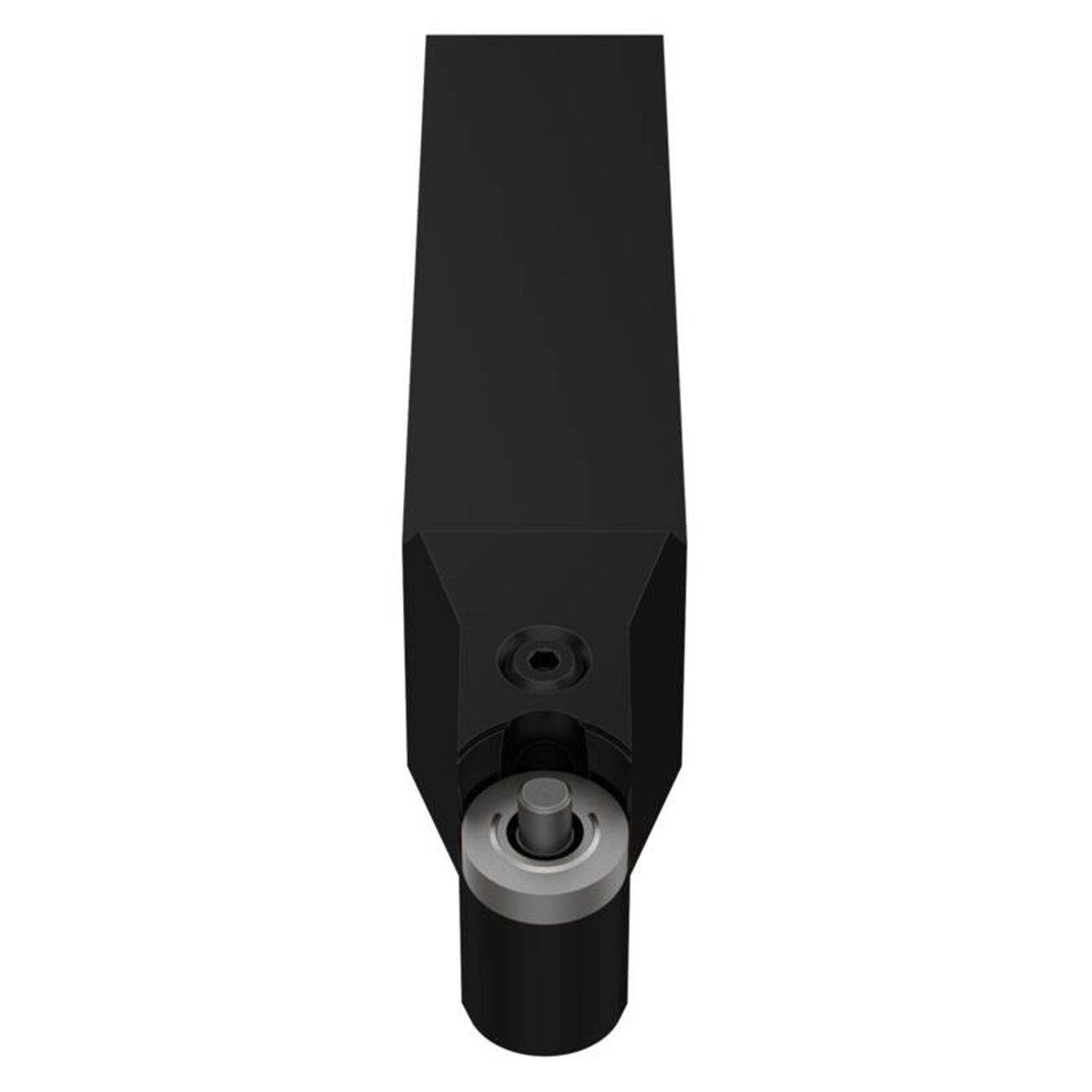

| Product Type | Indexable Turning Toolholder |
