Product Specifications
| Manufacturer Part Number | 02749018 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.790" |
| Minimum Cutting Diameter Internal (mm) | 20.07mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.535" |
| Head Length (mm) | 39.00mm |
| Usable Length (Decimal Inch) | 1.181" |
| Usable Length (mm) | 30.00mm |
| Shank Width (Decimal Inch) | 0.711" |
| Shank Width (mm) | 18.05mm |
| Maximum Cutting Depth (Decimal Inch) | 0.197" |
| Maximum Cutting Depth (mm) | 5.00mm |
| Cutting Width (Decimal Inch) | 0.079" |
| Cutting Width (mm) | 2.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.671" |
| Height of Tool Holder Shank (mm) | 17.05mm |
| Functional Width (Decimal Inch) | 0.551" |
| Functional Width (mm) | 14.00mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Cylindrical |

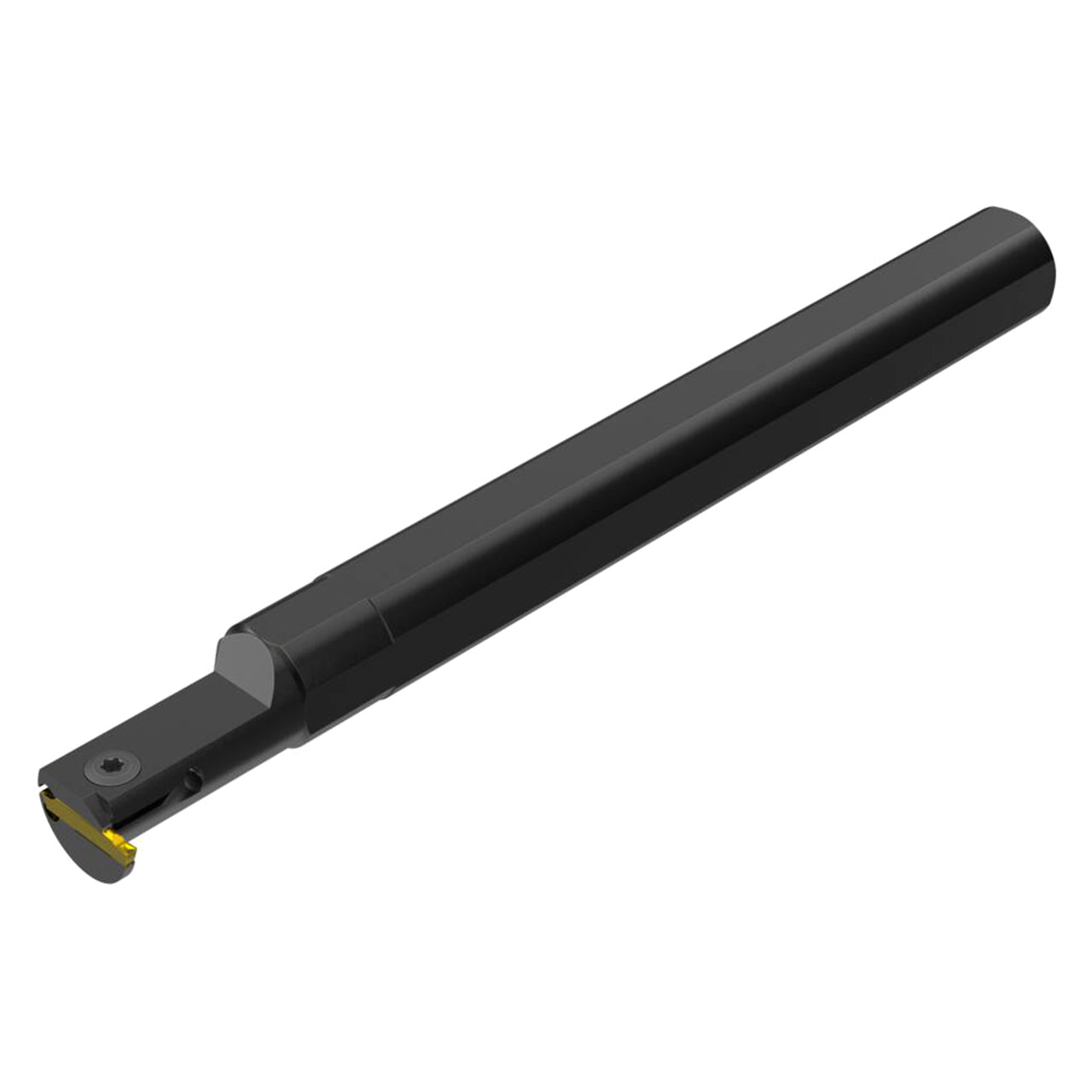

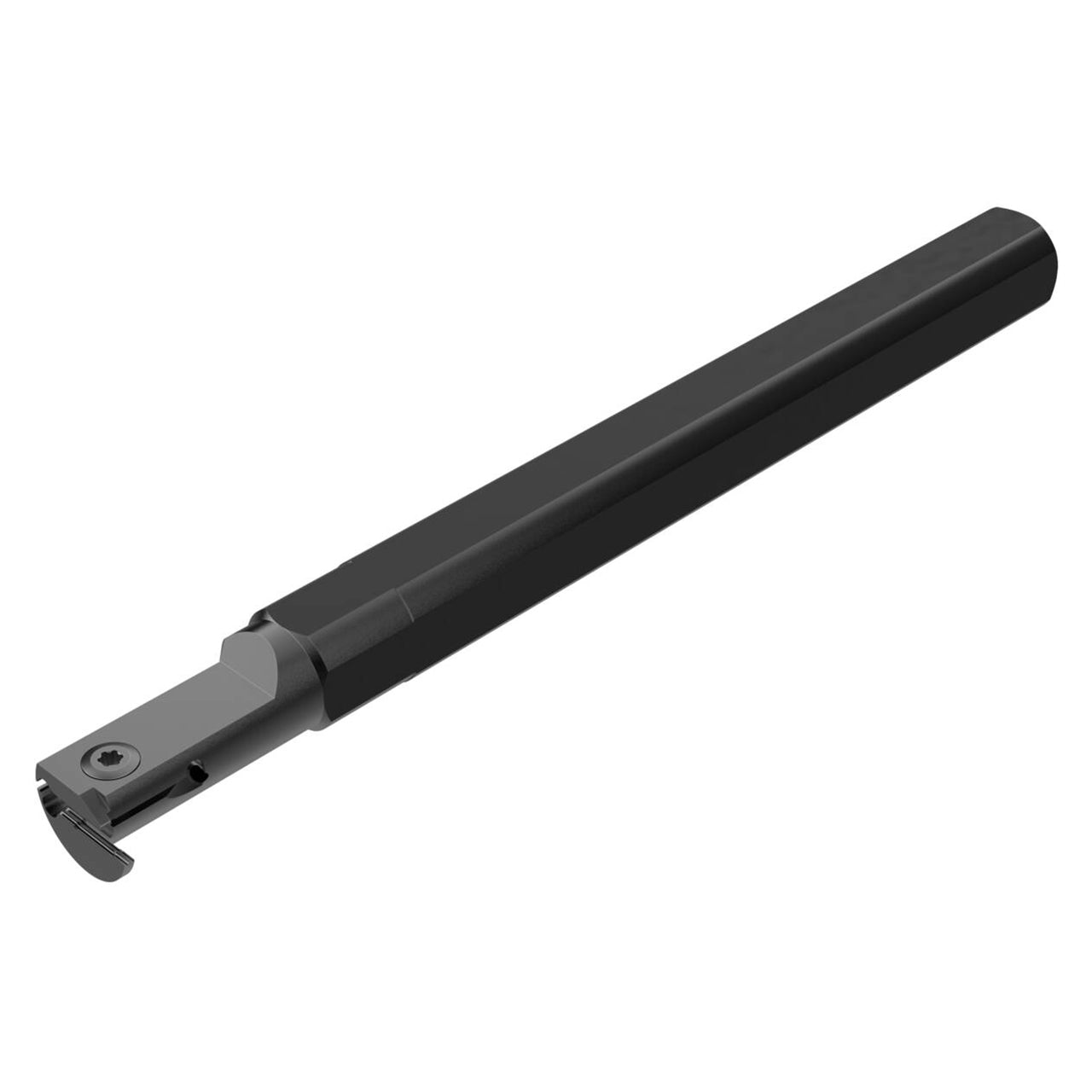

| Product Type | Indexable Grooving Toolholder |
