Product Specifications
| Manufacturer Part Number | 02733435 |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Corner Radius (Decimal Inch) | 0.010" |
| Corner Radius (mm) | 0.25mm |
| Insert Thickness (Decimal Inch) | 0.137" |
| Insert Thickness (mm) | 3.47mm |
| Thread Form Type | Whitworth, BSW - External Threading |
| Cutting Edge Count | 3 |
| Insert Hand | Right Hand |
| Tooth Count | 2 |
| Profile Included Angle (Degree) | 55 Degree |
| Material | Carbide |

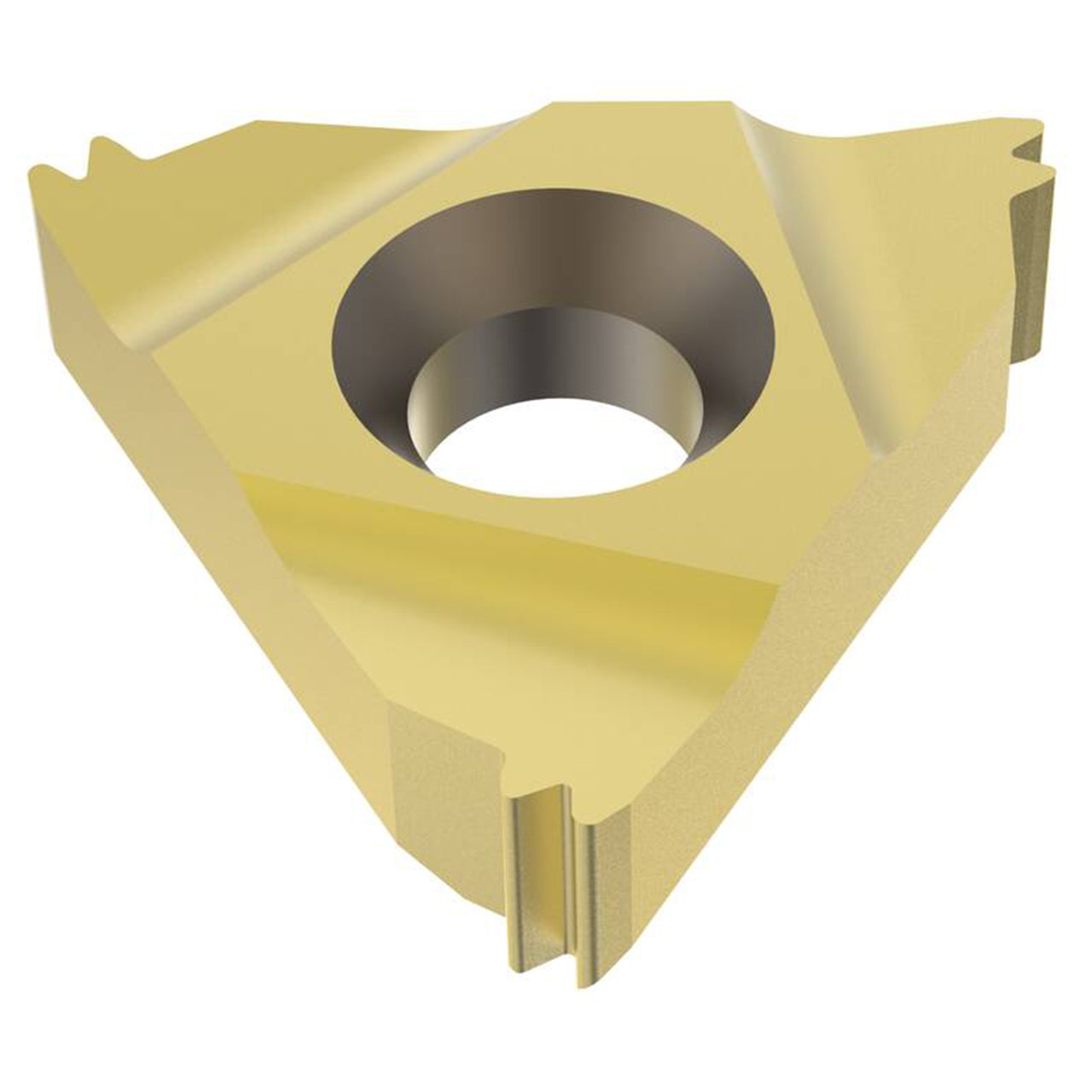

| Product Type | Laydown Threading Insert |
