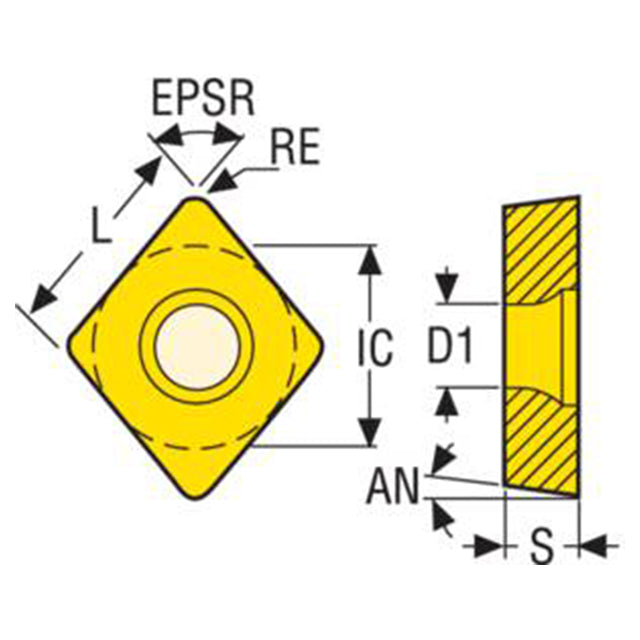

Product Specifications
| Manufacturer Part Number | 02726561 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.250" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.118" |
| Cutting Edge Effective Length (mm) | 3.00mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Insert Thickness (Decimal Inch) | 0.094" |
| Insert Thickness (mm) | 2.38mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Condition Code | S |
| Cutting Edge Count | 2 |
| Insert Size And Shape | CC0602 |
| Insert Included Angle (Degree) | 80 Degree |
| Material | PCBN |
| Product Type | PCBN Tipped Turning Insert |
