Product Specifications
| Manufacturer Part Number | 02722266 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.441" |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 4.931" |
| Maximum Helical Interpolation Hole Diameter (mm) | 125.25mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 4.493" |
| Minimum Helical Interpolation Hole Diameter (mm) | 114.12mm |
| Functional Length (Decimal Inch) | 4.020" |
| Functional Length (mm) | 102.10mm |
| Maximum Depth of Cut (mm) | 75.00mm |
| Maximum Depth of Cut (Decimal Inch) | 2.953" |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -6.4 Degree |
| Rake Radial Angle (Degree) | -6.4 Degree |
| Rake Orthogonal Angle (Degree) | -6.4 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Maximum Rotational Speed (rpm) | 13200 rpm |
| Insert Shape Code | X |
| Shank Type | Arbor |

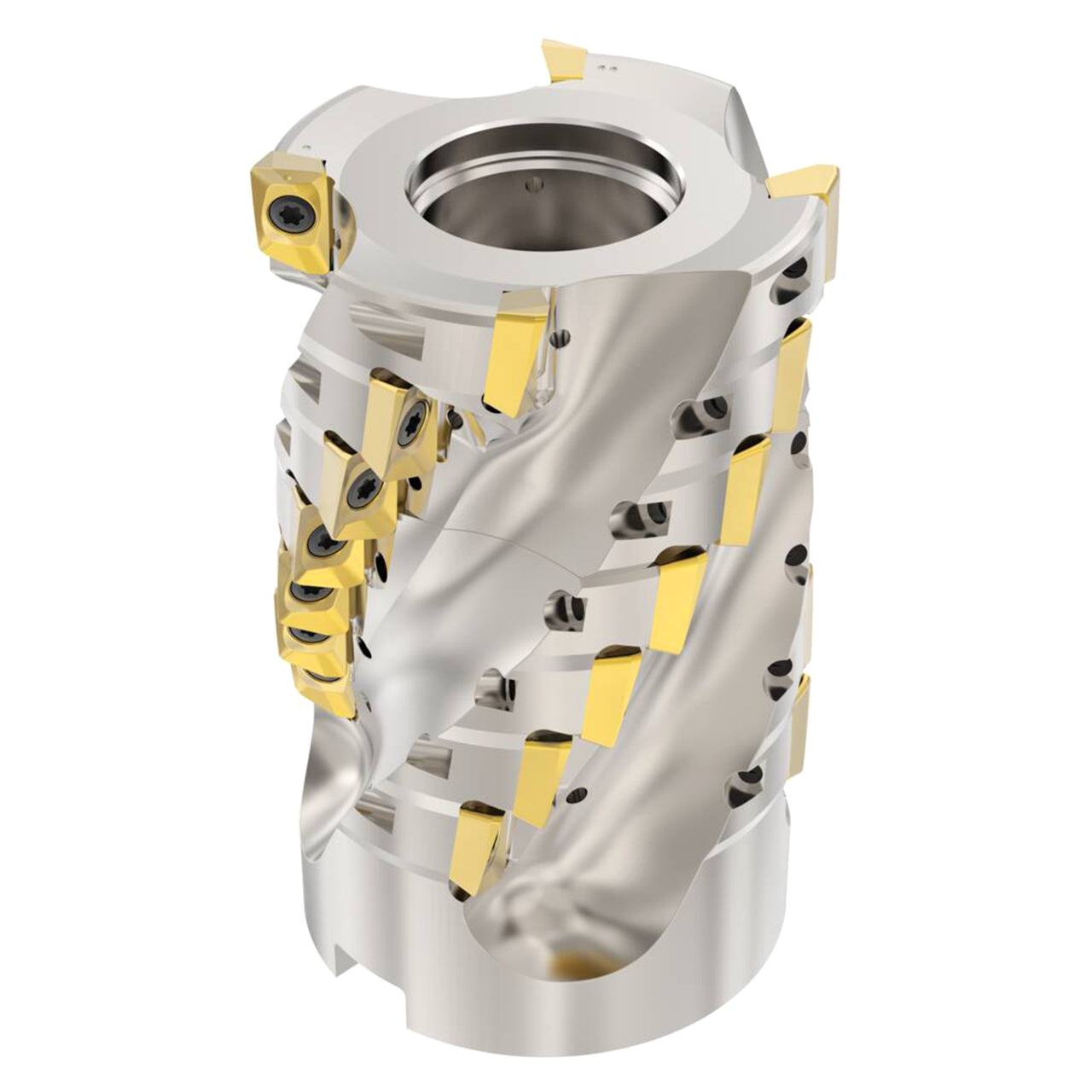

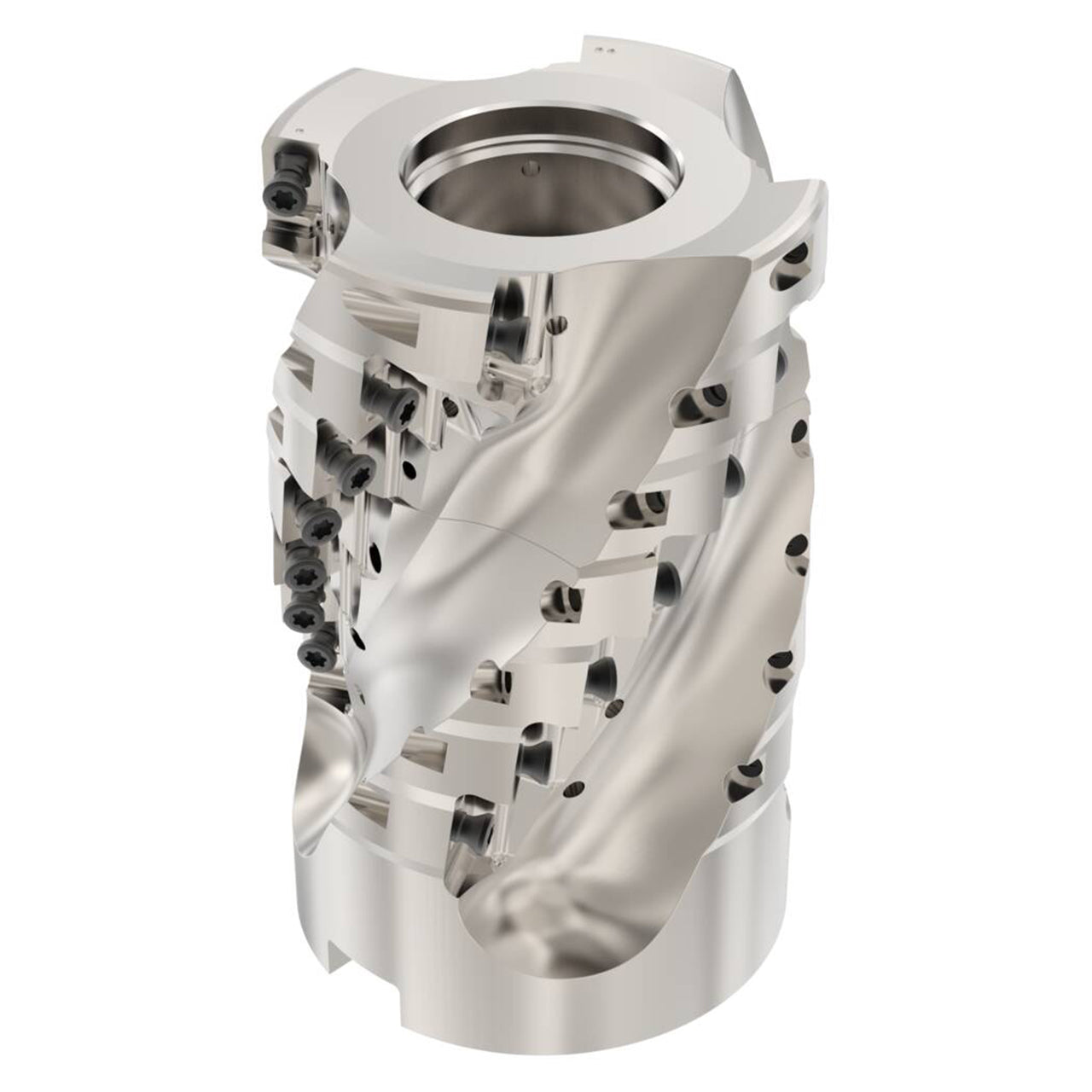

| Product Type | Indexable Square-Shoulder Face Mill |
