Product Specifications
| Manufacturer Part Number | 02720556 |
| Cutting Diameter (mm) | 500.00mm |
| Contact Surface Diameter Machine Side (mm) | 470.00mm |
| Maximum Cutting Diameter (mm) | 515.00mm |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Super close |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 40 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 40 Degree |
| Maximum Rotational Speed (rpm) | 1700 rpm |
| Insert Shape Code | O |
| Shank Type | CAP |

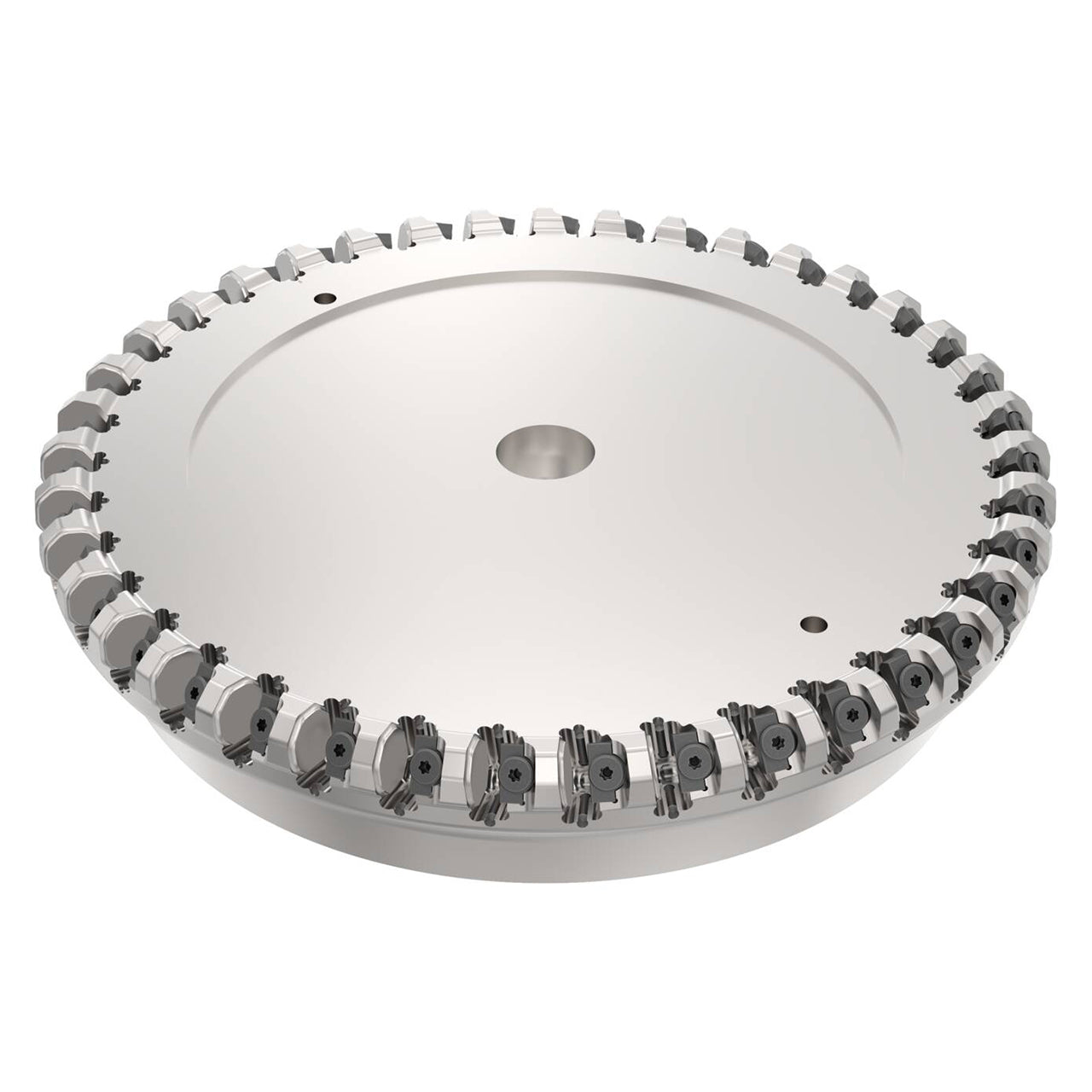

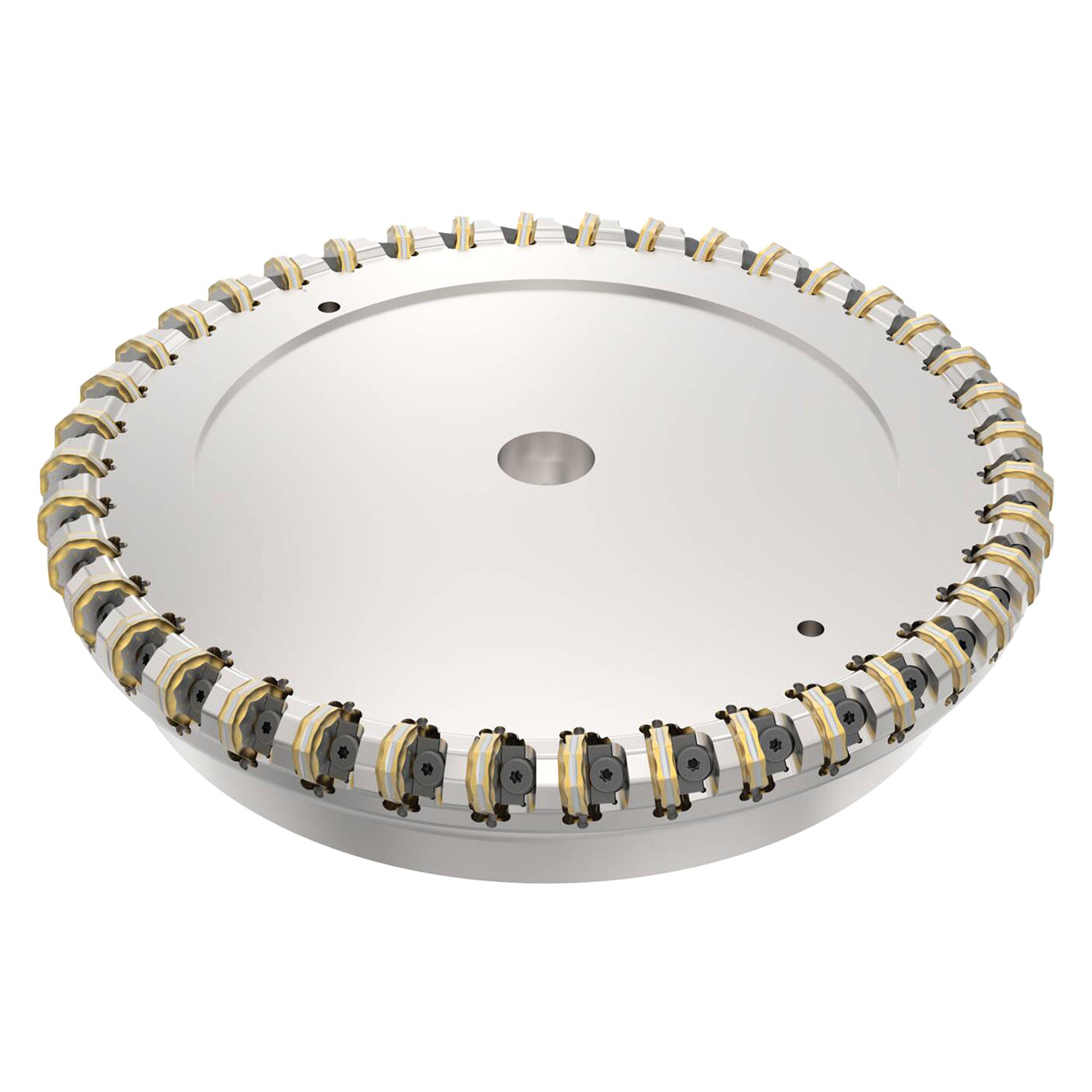

| Product Type | Indexable Face Mill Cutter |
