Product Specifications

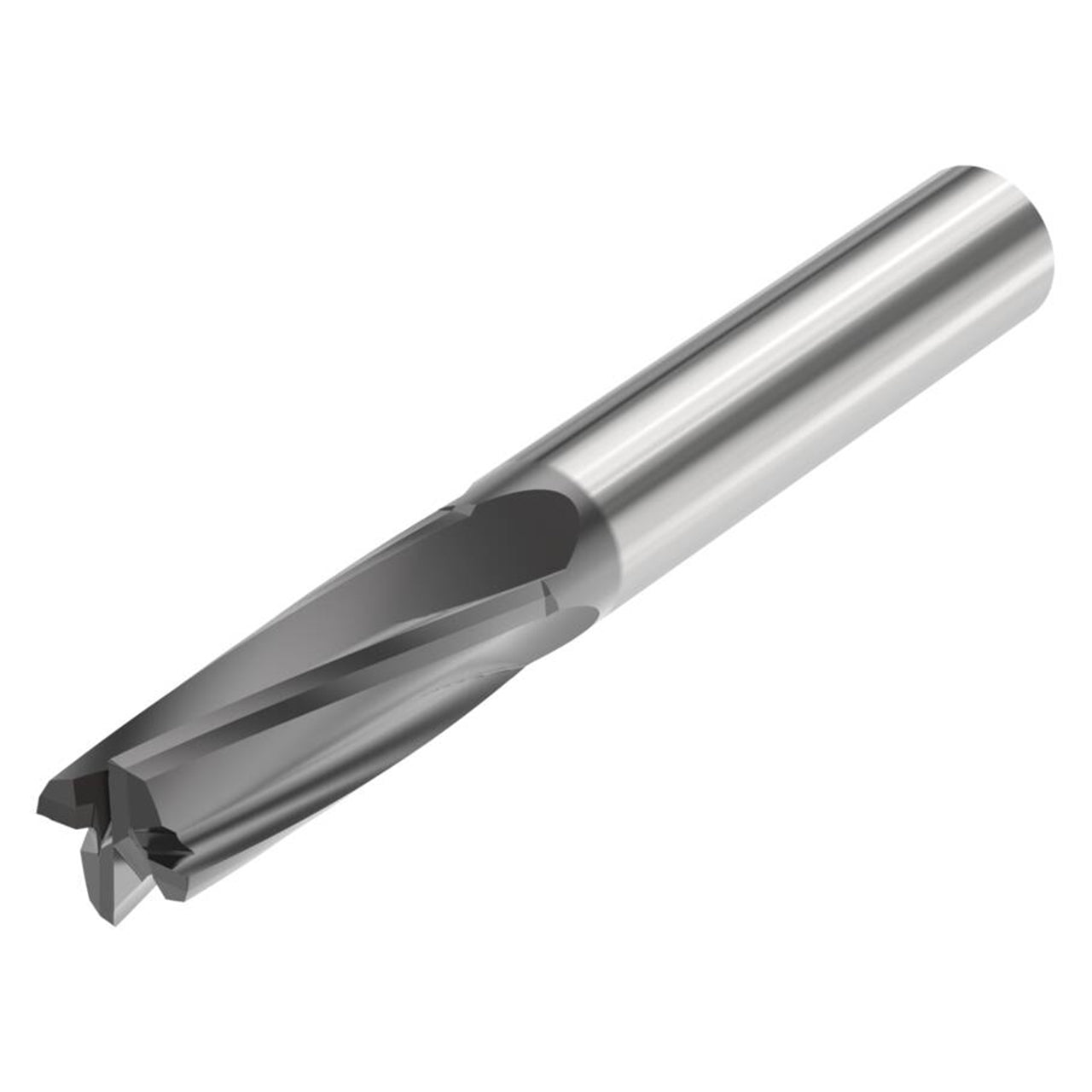

| Manufacturer Part Number | 02720263 |
| Cutting Diameter (mm) | 20.00mm |
| Cutting Diameter 1 (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 26.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 39.58mm |
| Cutting Edge Effective Length (mm) | 60.00mm |
| Minimum Clamping Length (mm) | 50.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 60.00mm |
| Overall Length (mm) | 130.00mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (mm) | 60.00mm |
| Corner Radius (mm) | 0.20mm |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JC880 |
| Cutting Geometry Type Technical | JC880 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | DURA |
| Product Type | Corner Radius End Mill |
