Product Specifications

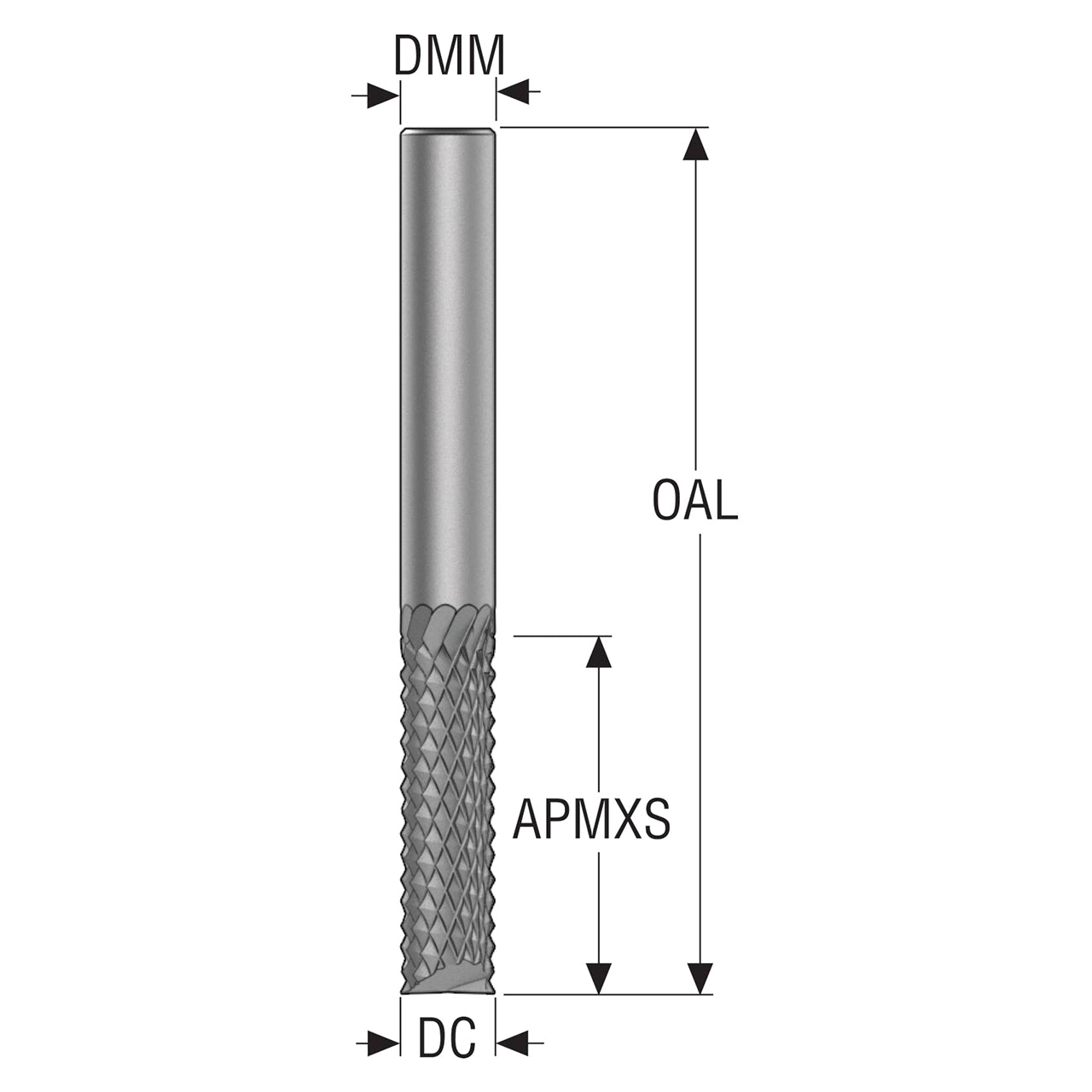

| Manufacturer Part Number | 02720228 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 7.80mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 11.70mm |
| Cutting Edge Effective Length (mm) | 18.00mm |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 18.00mm |
| Overall Length (mm) | 65.00mm |
| Number of Flute | 10 |
| Pheripheral Cutting Edge Count | 10 |
| Maximum Depth of Cut (mm) | 18.00mm |
| Cutting Edge Count | 10 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 25 Degree |
| Rake Radial Angle (Degree) | 7 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Compression |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JC870 |
| Cutting Geometry Type Technical | JC870 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | DURA |
| Product Type | Square End Mill |
