Product Specifications
| Manufacturer Part Number | 02718958 |
| Minimum Initial Plunge Diameter (Decimal Inch) | 2.165" |
| Minimum Initial Plunge Diameter (mm) | 55.00mm |
| Maximum Initial Plunge Diameter (Decimal Inch) | 3.150" |
| Maximum Initial Plunge Diameter (mm) | 80.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.417" |
| Head Length (mm) | 36.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Cutting Width (Decimal Inch) | 0.158" |
| Cutting Width (mm) | 4.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.472" |
| Maximum Cutting Depth (mm) | 12.00mm |
| Workpiece Side Body Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Left Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Square shank axial |

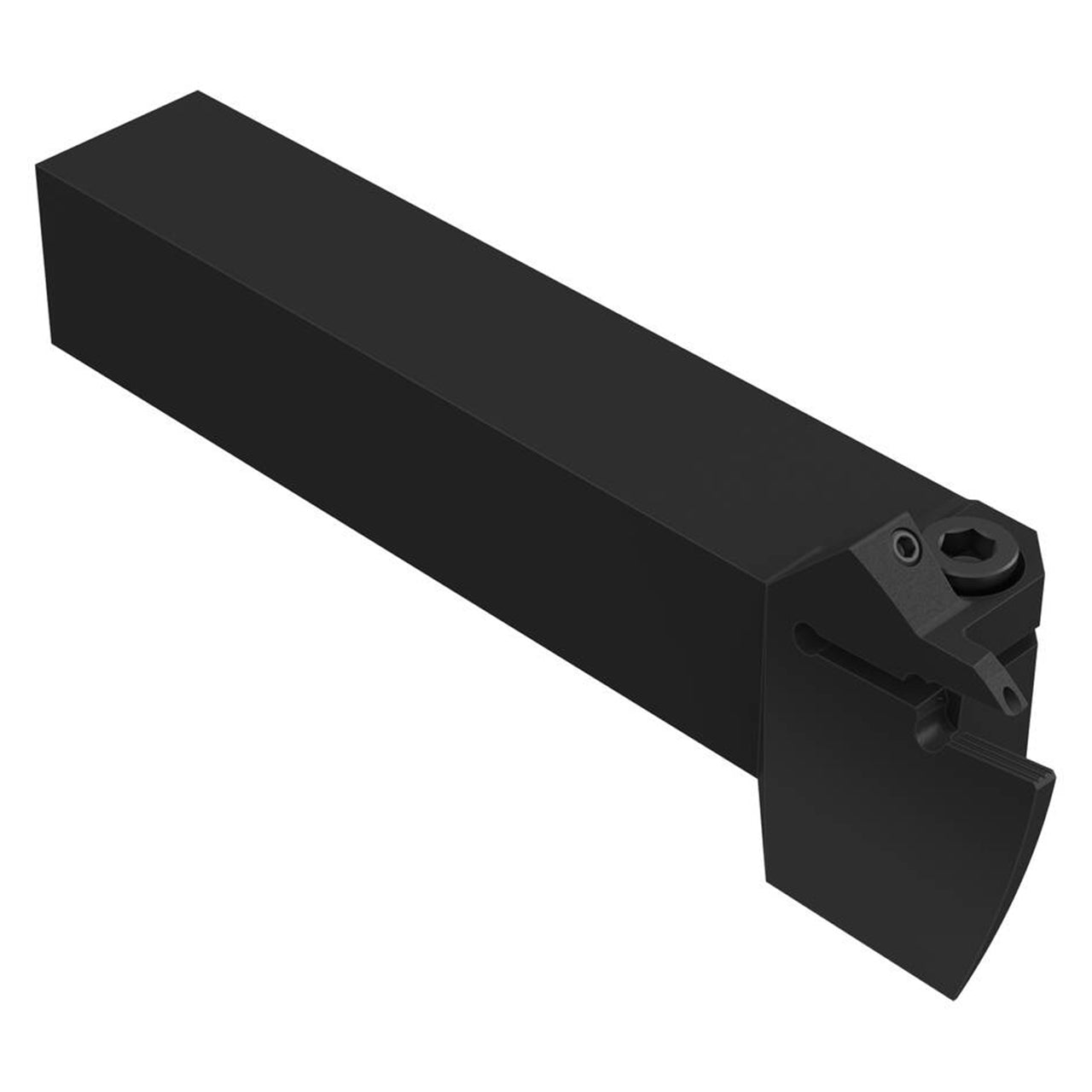

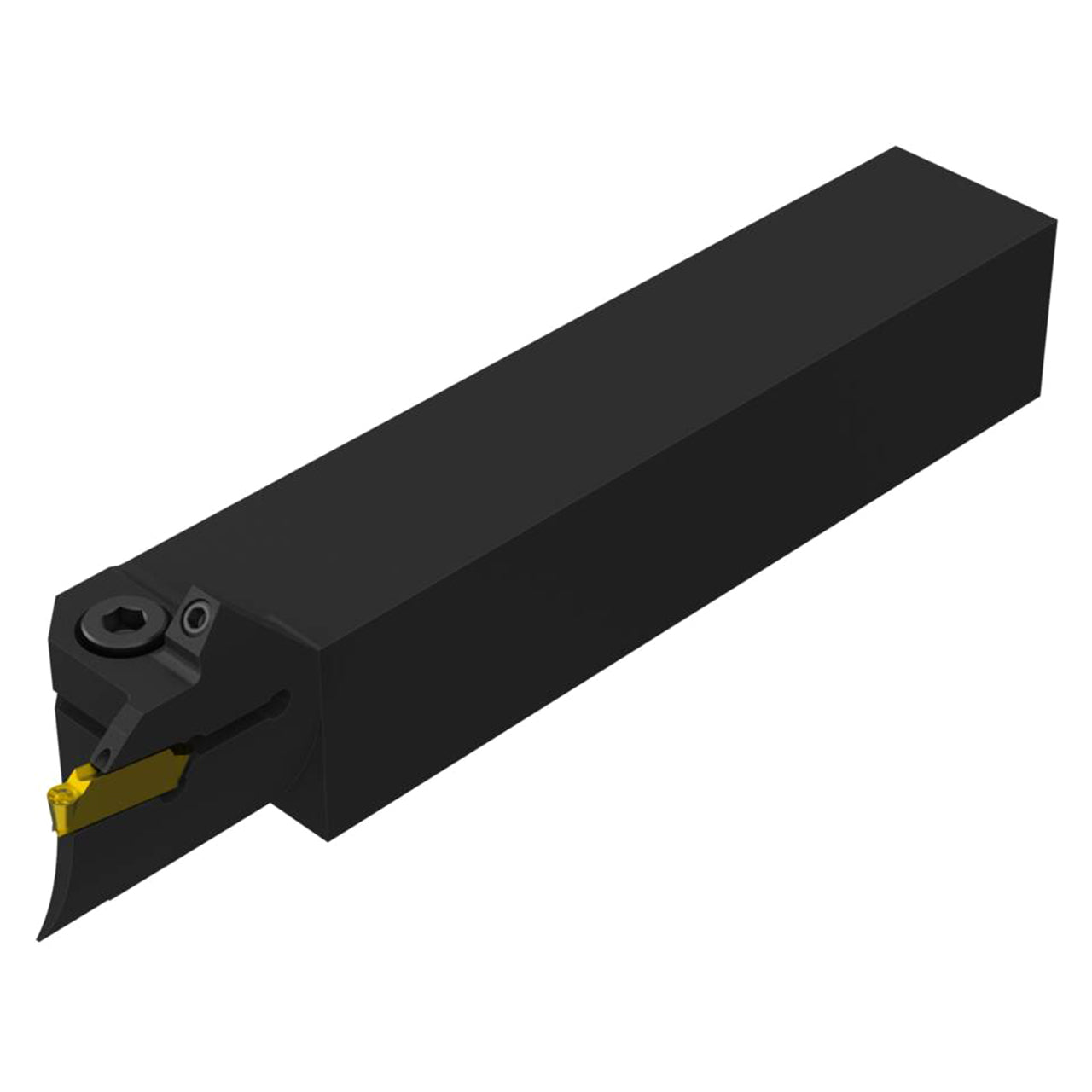

| Product Type | Indexable Grooving Toolholder |
